Steering Gearbox: Adjustment

Adjust front toe.
Standard of front toe:
1. IN 3 - OUT 3 mm (IN 0.12 - OUT 0.12 in)

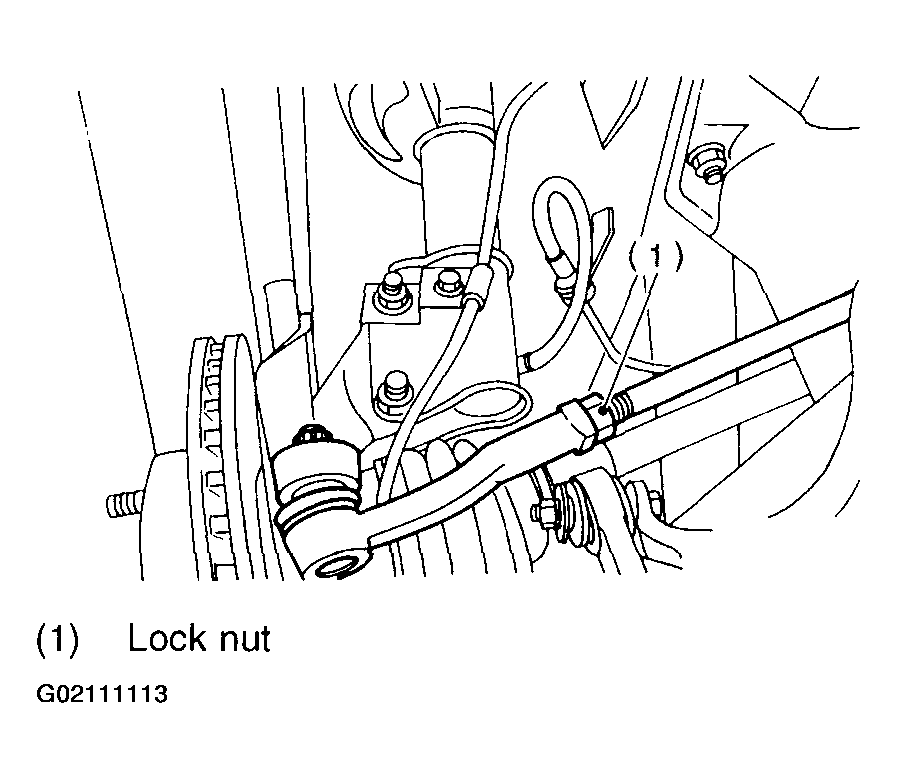

Fig 1: Adjusting Front Toe
Adjust steering angle of wheels.

Fig 2: Standard Of Steering Angle Chart
If steering wheel spokes are not horizontal when wheels are set in the straight ahead position, and error is more than 5° on the periphery of steering wheel, correctly re-install the steering wheel.

Fig 3: Illustrating Steering Wheel Play
If steering wheel spokes are not horizontal with vehicle set in the straight ahead position after this adjustment, correct it by turning the right and left tie-rods in the same direction by the same turns.

Fig 4: Straightening Steering Wheel
