Universal Joint: Inspection

Clean the disassembled parts with a cloth, and check for wear, damage, or any other faults. If necessary, repair or replace faulty parts.

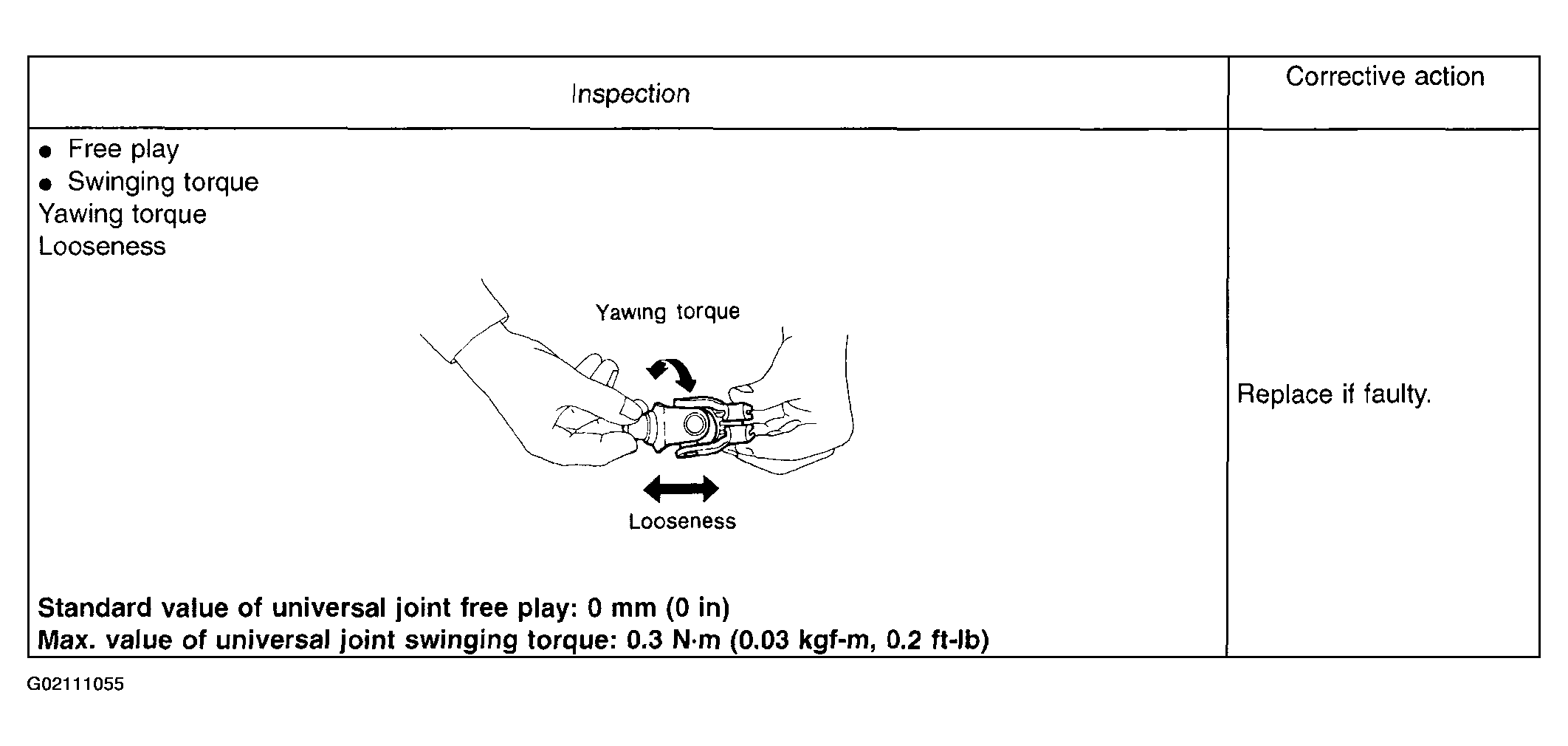

Fig 1: Checking Universal Joint

Measurement of folding torque of universal joint is as shown in the figures.

Service limit:

1. Maximum load;  5.49 N (0.56 kg, 1.23 lb) or less

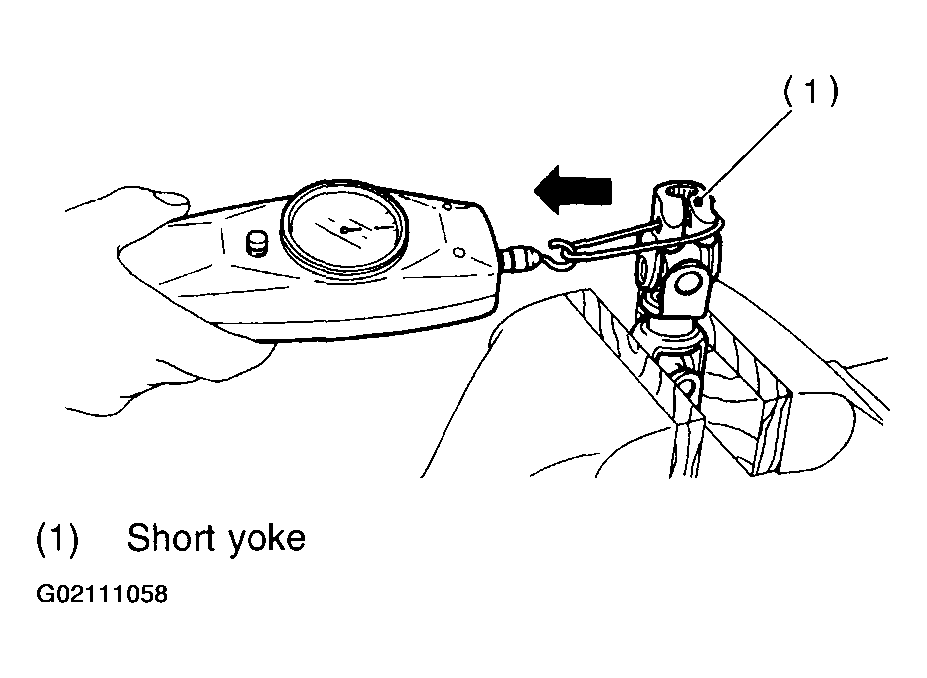

   Fig 2: Measuring Folding Torque Of Universal Joint (Long Yoke)



Service limit:

1. Maximum load;  8.43 N (0.86 kg, 1.90 lb) or less

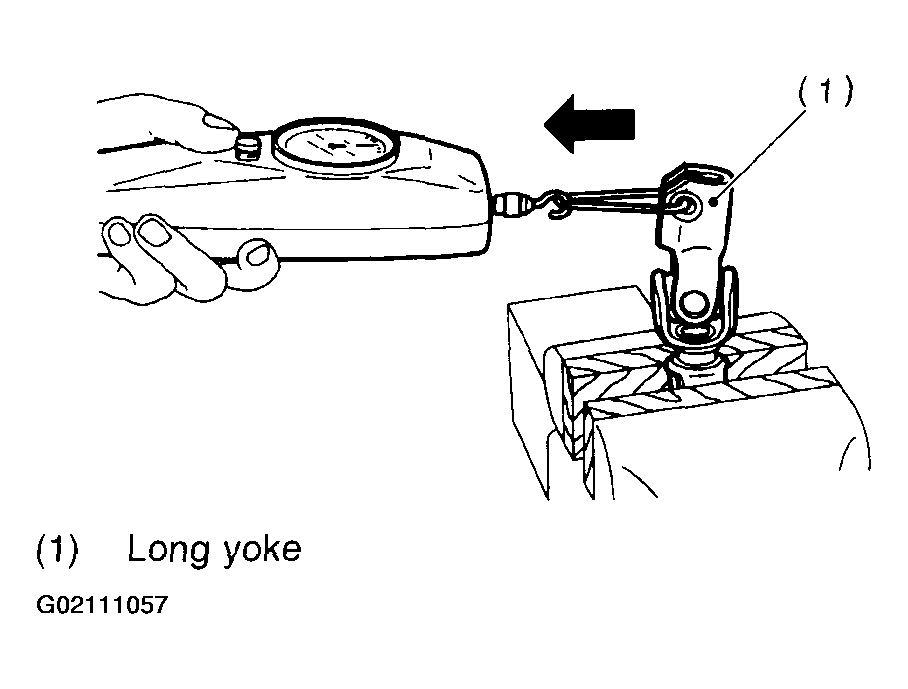

   Fig 3: Measuring Folding Torque Of Universal Joint (Long Yoke / Additional Angle)



Service limit:

1. Maximum load;  5.49 N (0.56 kg, 1.23 lb) or less

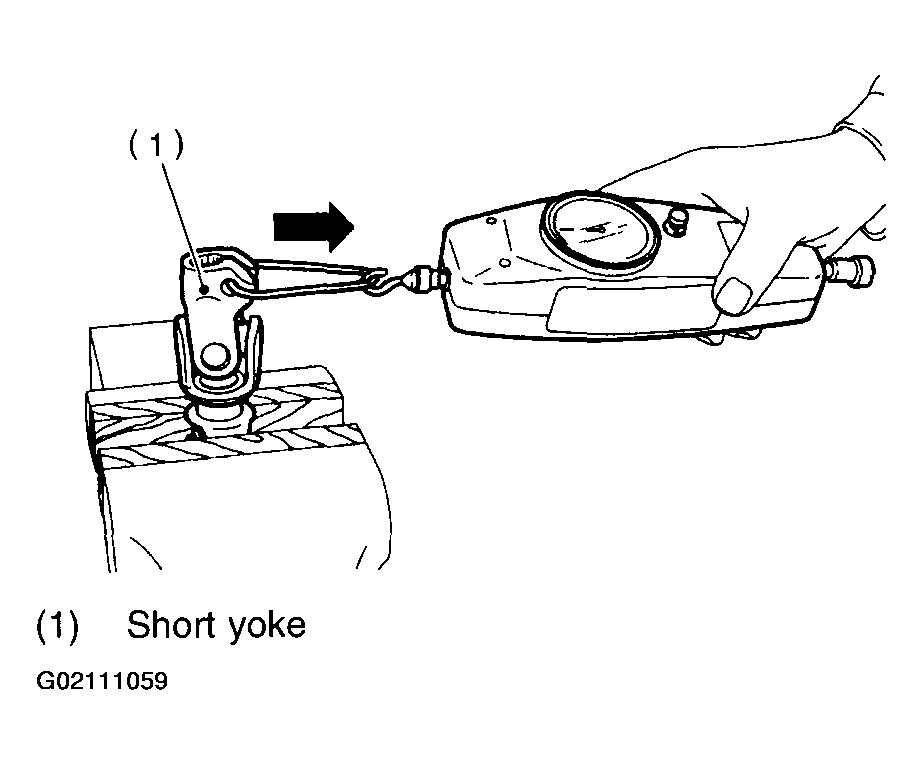

   Fig 4: Measuring Folding Torque Of Universal Joint (Short Yoke)



Service limit:

1. Maximum load;  8.43 N (0.86 kg, 1.90 lb) or less
   Fig 5: Measuring Folding Torque Of Universal Joint (Short Yoke / Additional Angle)
