Clutch Disc and Cover: Installation

Install flywheel and ST.
ST 498497100 CRANKSHAFT STOPPER

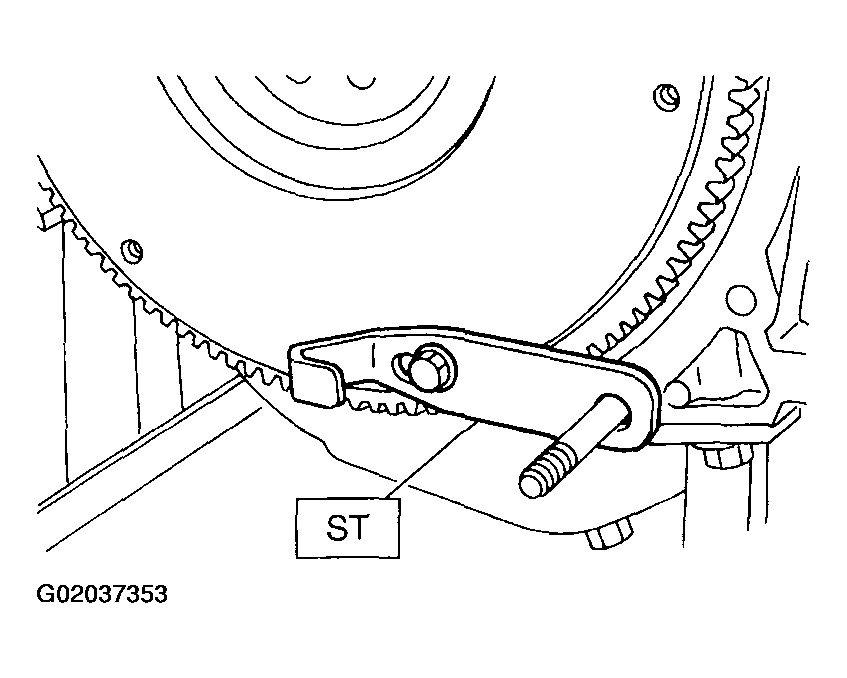

Fig 1: Installing Flywheel And ST
Insert ST into the clutch disc and install them on the flywheel by inserting the ST end into the pilot bearing.
ST 499747100 CLUTCH DISC GUIDE

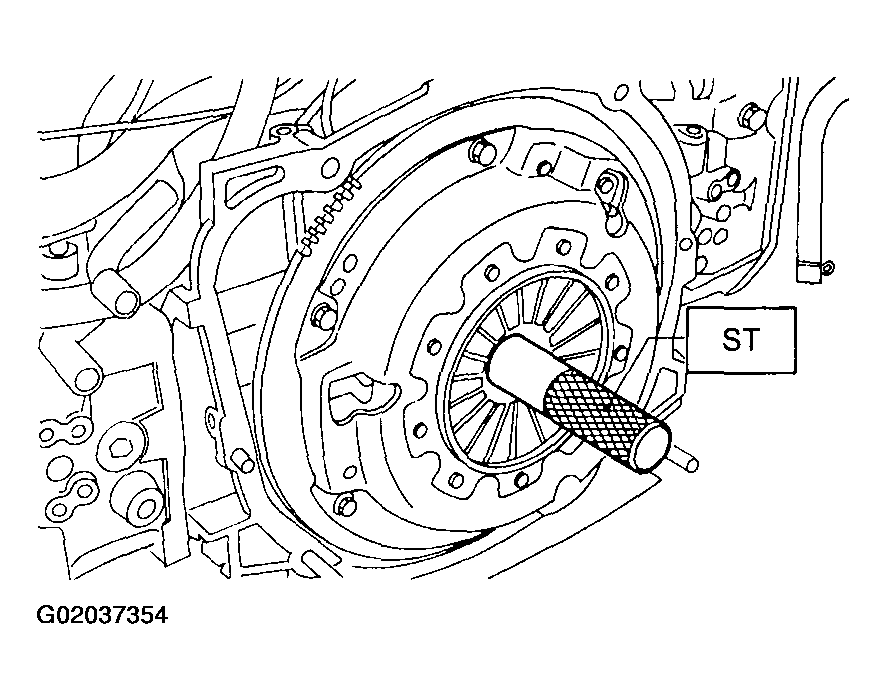

Fig 2: Installing Clutch Disc
Install clutch cover on flywheel and tighten bolts to the specified torque.
NOTE:
- When installing the clutch cover on the flywheel, position the clutch cover so that there is a gap of 120° or more between "0" marks on the flywheel and clutch cover. ("0" marks indicate the directions of residual unbalance.)
- Note the front and rear of the clutch disc when installing.
- Temporarily tighten bolts by hand. Each bolt should be tightened to the specified torque in a crisscross fashion.
Tightening torque:
1. 15.7 N-m (1.6 kgf-m, 11.6 ft-lb)

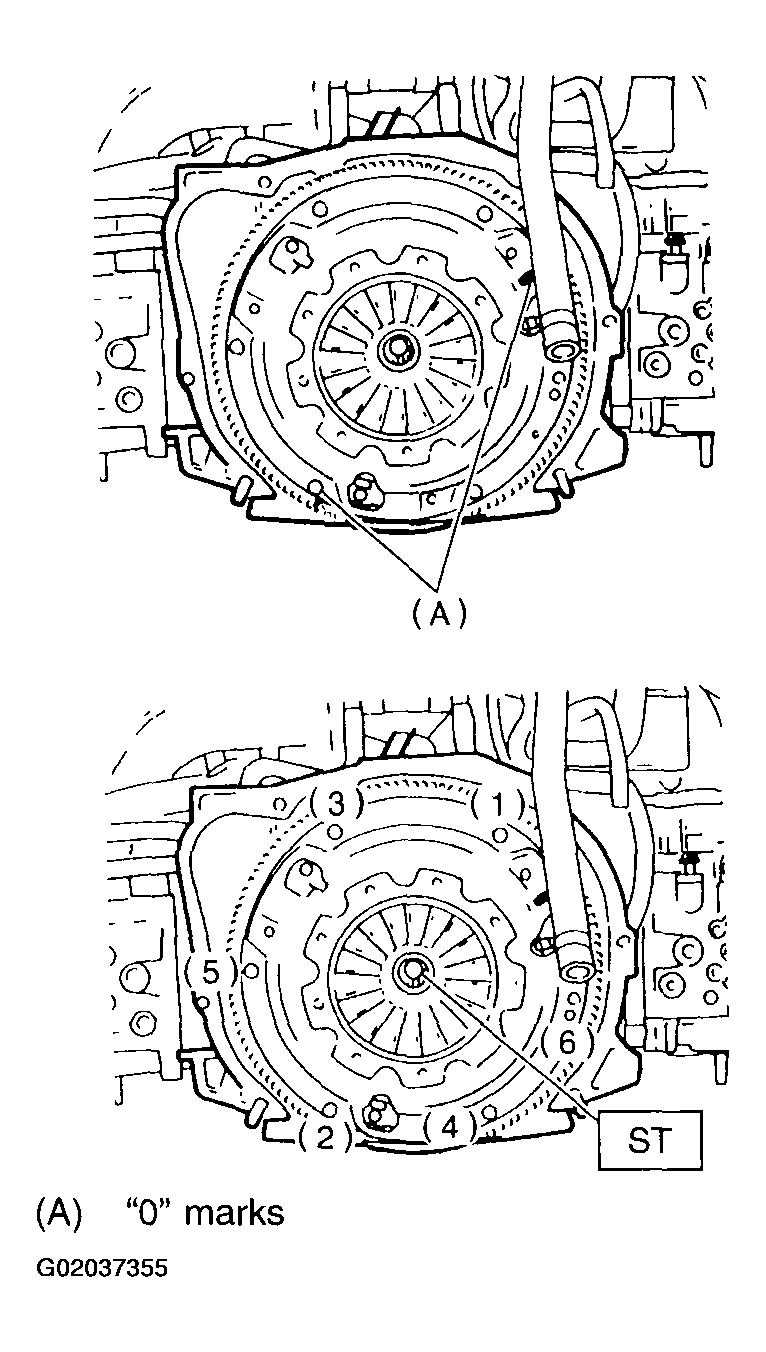

  Fig 3: Installing The Clutch Cover
Remove ST.
ST 499747100 CLUTCH DISC GUIDE
Install transmission assembly. See MANUAL TRANSMISSION ASSEMBLY .
