Clutch Switch: Inspection

If clutch switch does not operate properly (or if it does not stop at the specified position), replace with new one.
Specified position: L
1. 2 ^+1.5 /0mm (0.079 ^+0.059 /0n I)

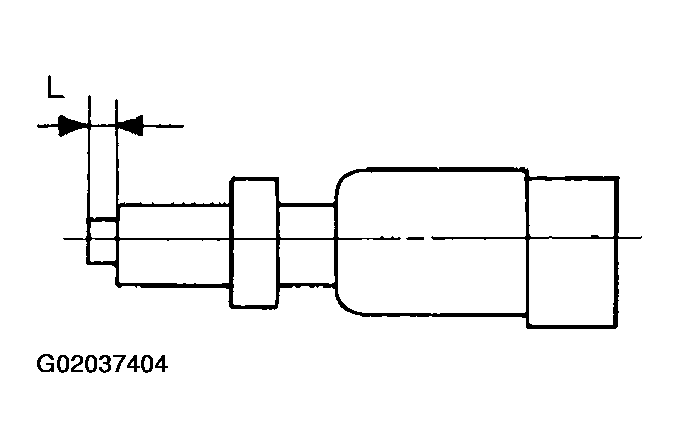

  Fig 1: Identifying Position L
Check clutch switch continuity. If continuity is not as specified, replace the switch.

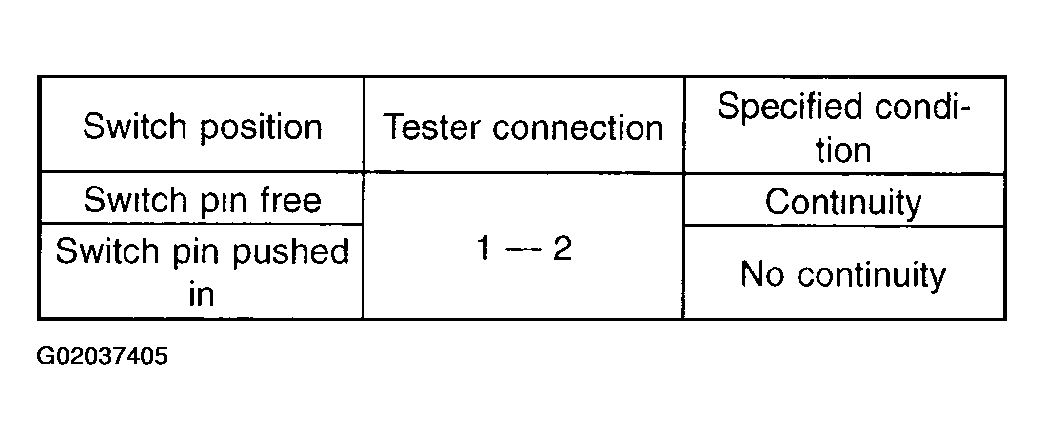

Fig 2: Clutch Switch Continuity Chart

Clutch switch (Starter interlock)

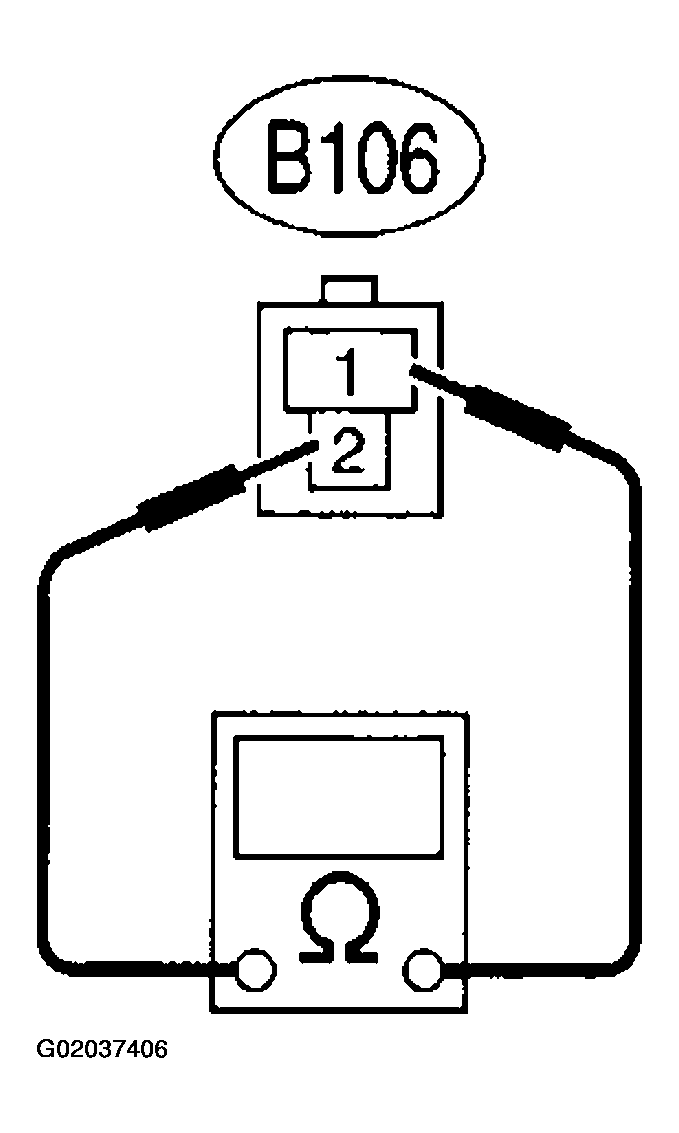

Fig 3: Identifying Clutch Switch Connector Test Points (Starter interlock)
Clutch switch (With cruise control)

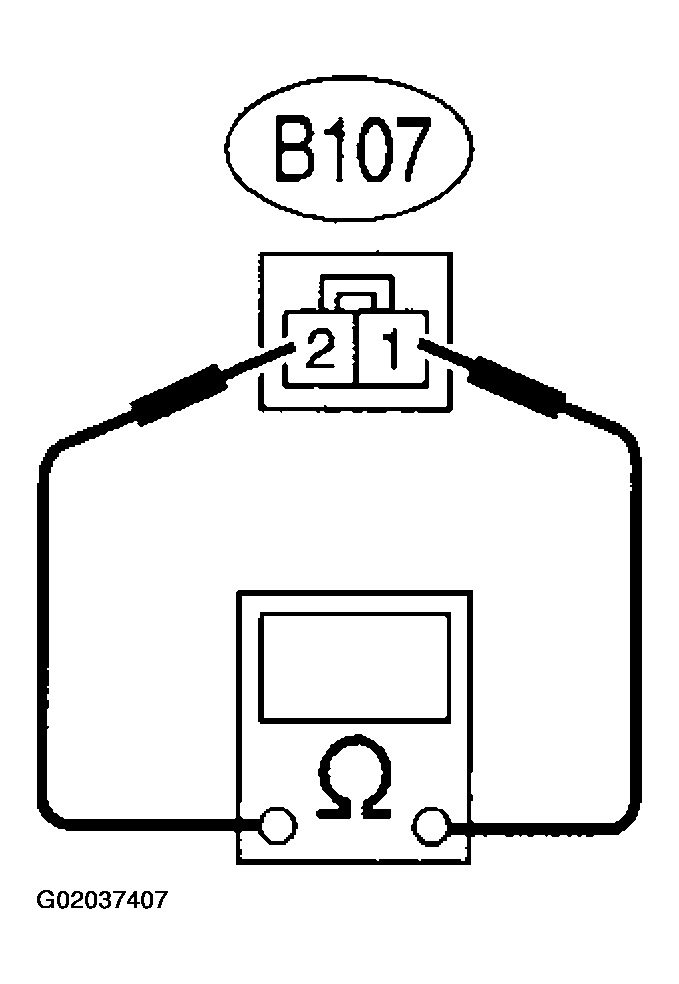

Fig 4: Identifying Clutch Switch Connector Test Points (With cruise control)
