Clutch System: Flywheel: Installation

Install flywheel and ST.
ST 498497100 CRANKSHAFT STOPPER

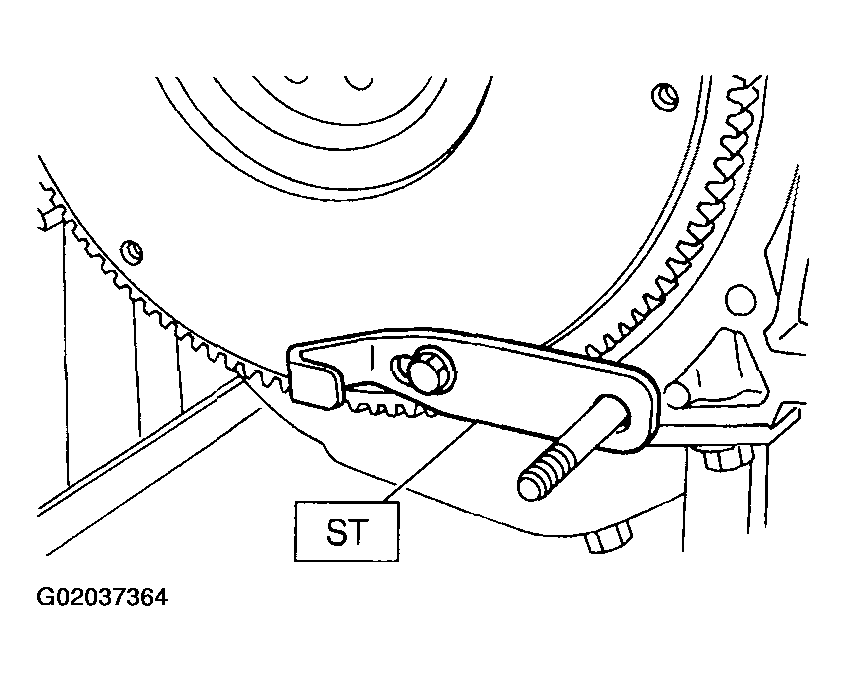

Fig 1: Identifying Flywheel & ST
Tighten the flywheel attaching bolts to the specified torque.
NOTE: Tighten flywheel installing bolts gradually. Each bolt should be tightened to the specified torque in a crisscross fashion.

Tightening torque:
1. 72 N-m (7.3 kgf-m, 52.8 ft-lb)

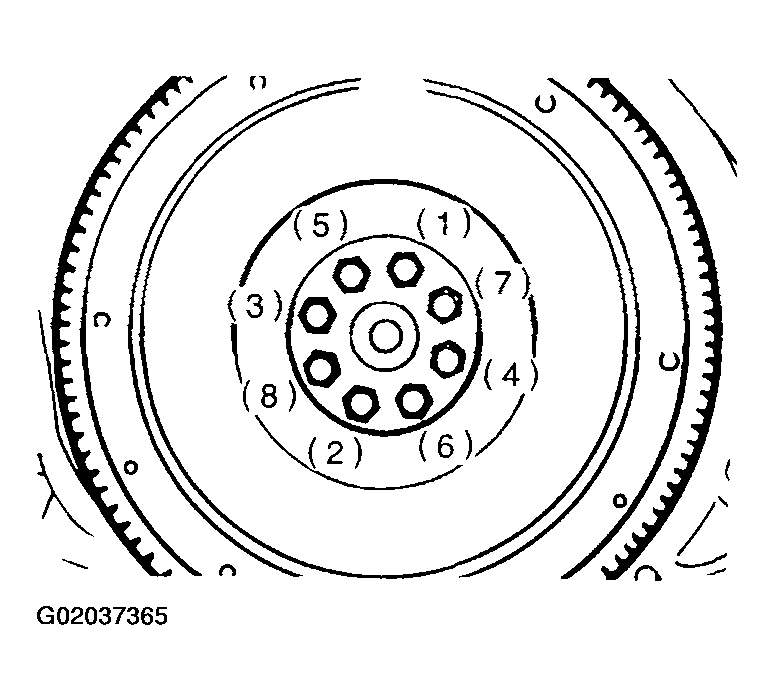

  Fig 2: Identifying Crisscross Tightening Sequence
2. Install clutch disc and cover. See Clutch Disc and Cover .
3. Install transmission assembly. MANUAL TRANSMISSION ASSEMBLY .
