Clutch System: Flywheel: Removal

Remove transmission assembly. See MANUAL TRANSMISSION ASSEMBLY .
Install ST on flywheel.
ST 498497100 CRANKSHAFT STOPPER

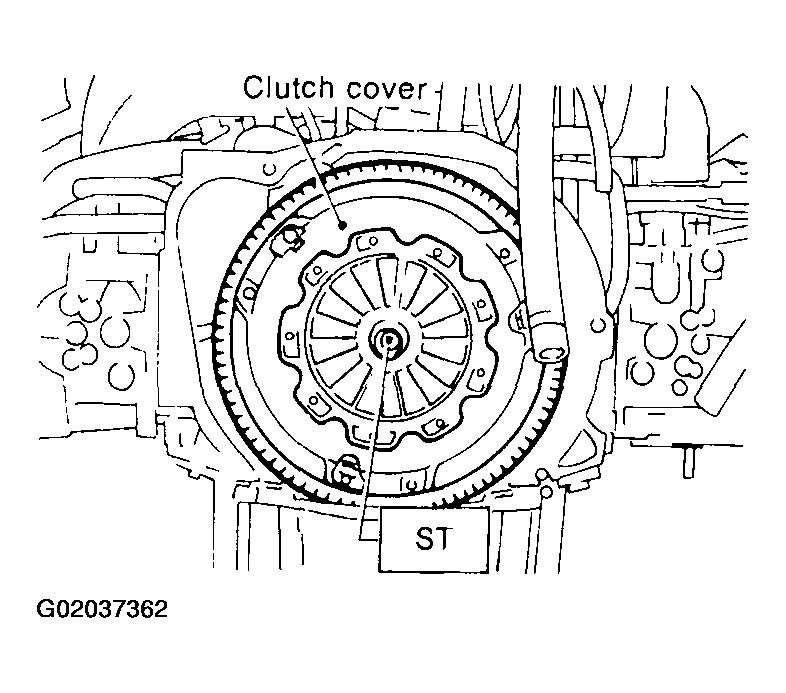

Fig 1: Installing ST On Flywheel
Remove clutch cover and clutch disc. See Clutch Disc and Cover .
CAUTION:
- Take care not to allow oil on the clutch disc facing.
- Do not disassemble either clutch cover or clutch disc.
Using ST, remove flywheel.
ST 498497100 CRANKSHAFT STOPPER

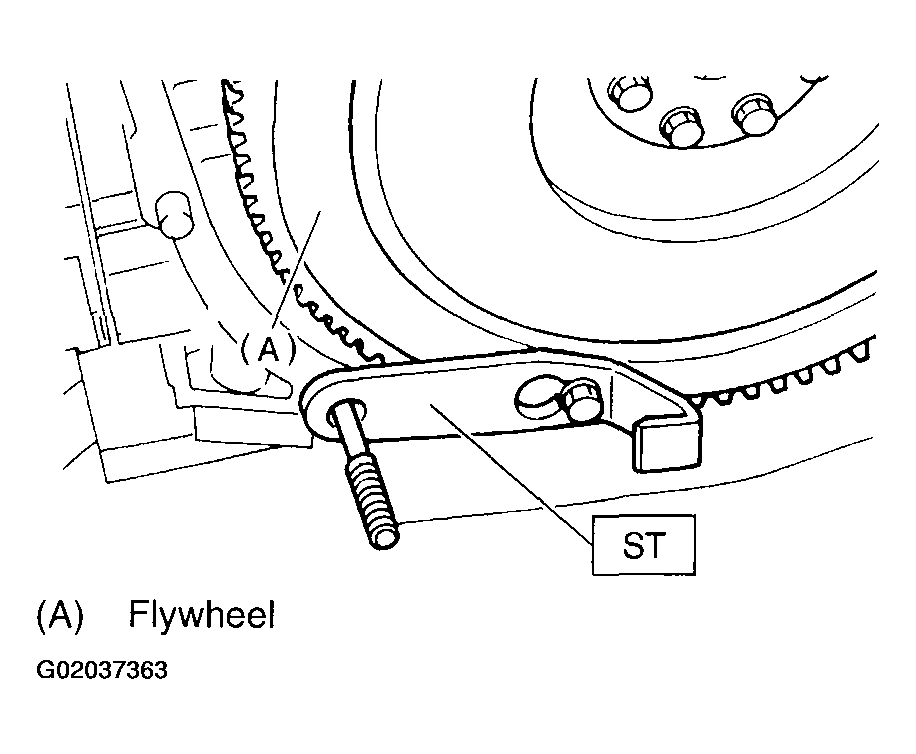

Fig 2: Identifying ST & Flywheel
