Master Cylinder: Disassembly

  1. Remove straight pin and reservoir tank.

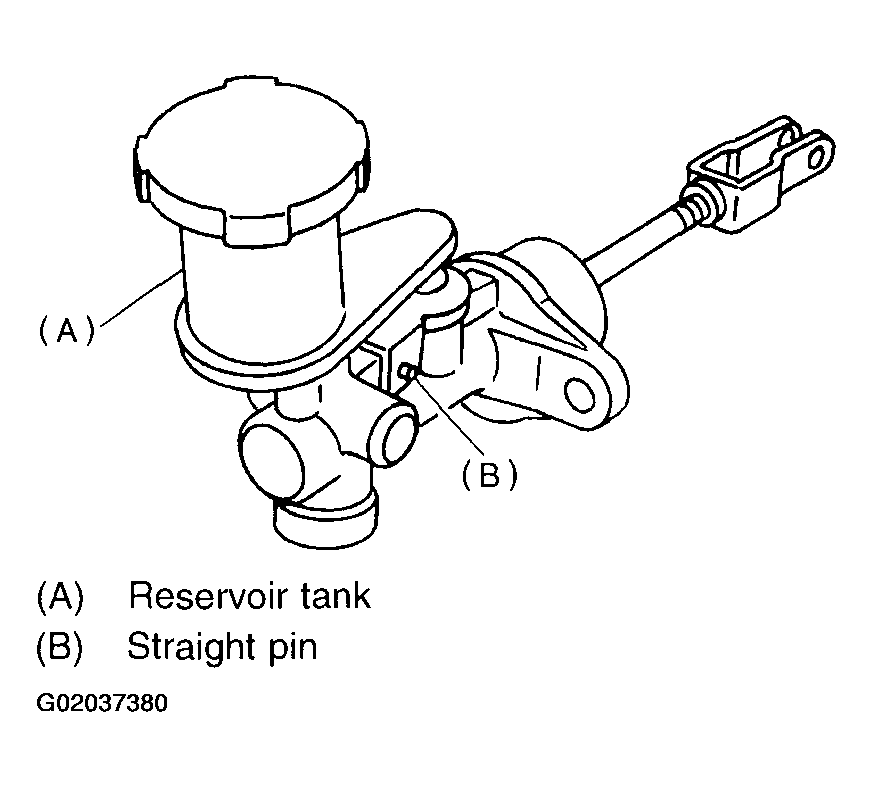

    Fig 1: Removing Straight Pin & Reservoir Tank
    G02037380
  2. Remove oil seal.

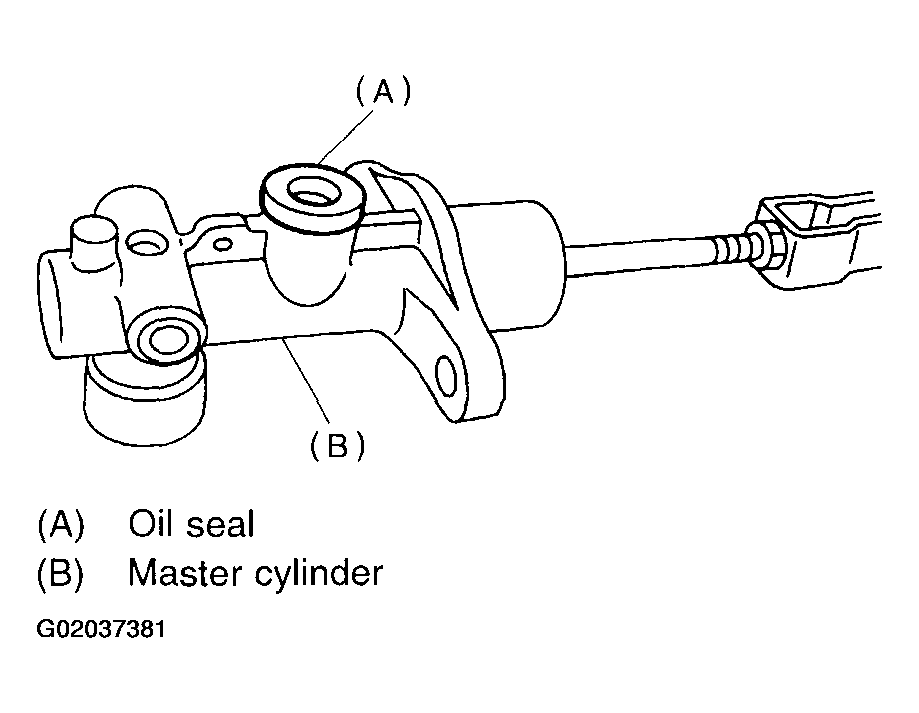

    Fig 2: Removing Oil Seal
    G02037381
  3. Move the cylinder boot backward.

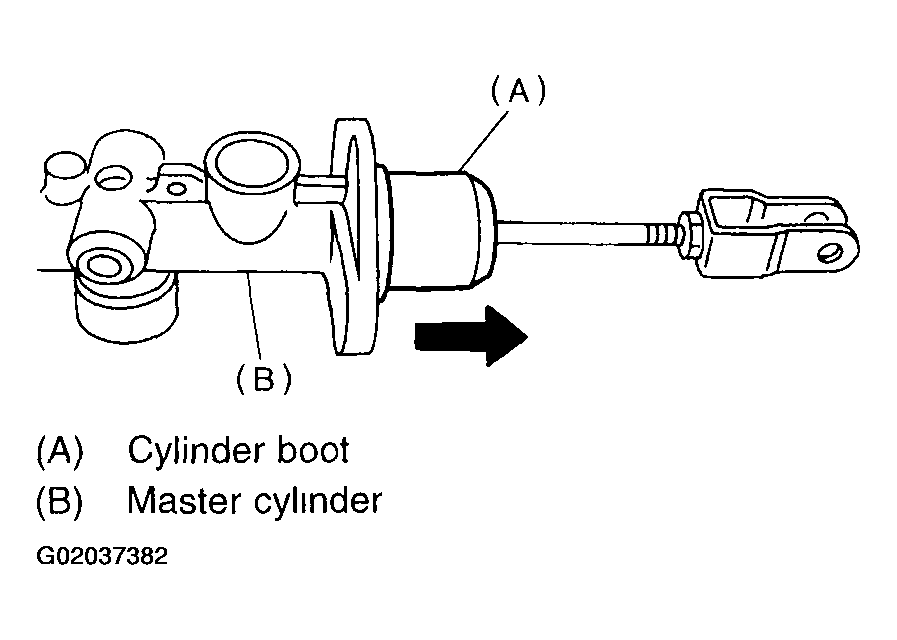

    Fig 3: Identifying Cylinder Boot
    G02037382
  4. Remove snap ring.
    CAUTION: Be careful when removing the snap ring to prevent the rod, washer, piston and return spring from flying out.
