Master Cylinder: Installation

Install master cylinder to body, and install clutch pipe to master cylinder.
CAUTION: Check that pipe is routed properly.

Tightening torque:
1. T1: 15 N.m (1.5 kgf-m, 10.8 ft-lb)
2. T2: 18 N.m (1.8 kgf-m, 13.0 ft-lb)

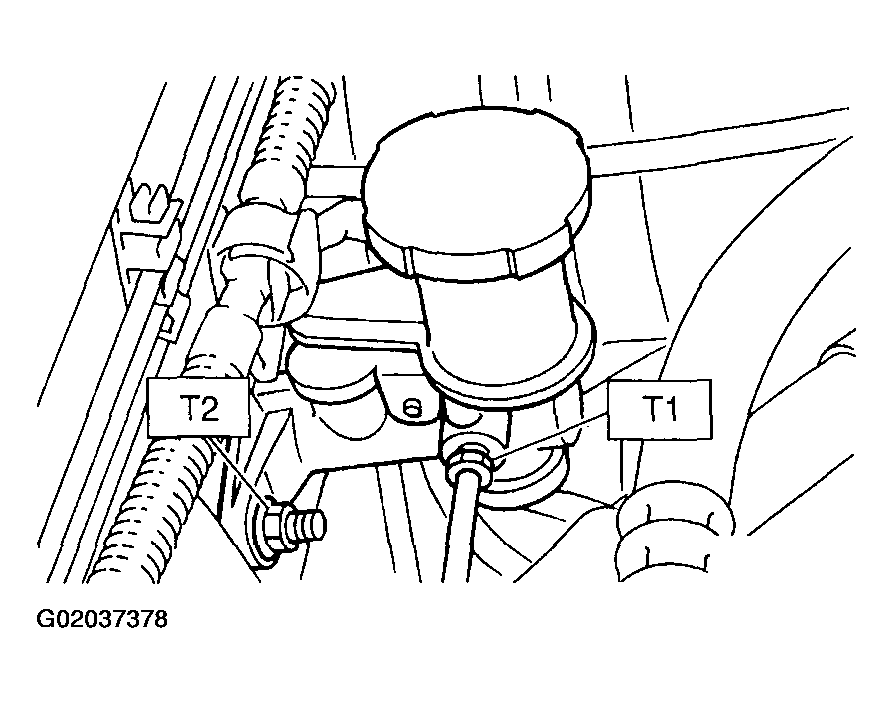

  Fig 1: Installing Master Cylinder & Clutch Pipe
Connect push rod of master cylinder to clutch pedal, and install clevis pin and snap pin.
NOTE: Apply grease to clevis pin.

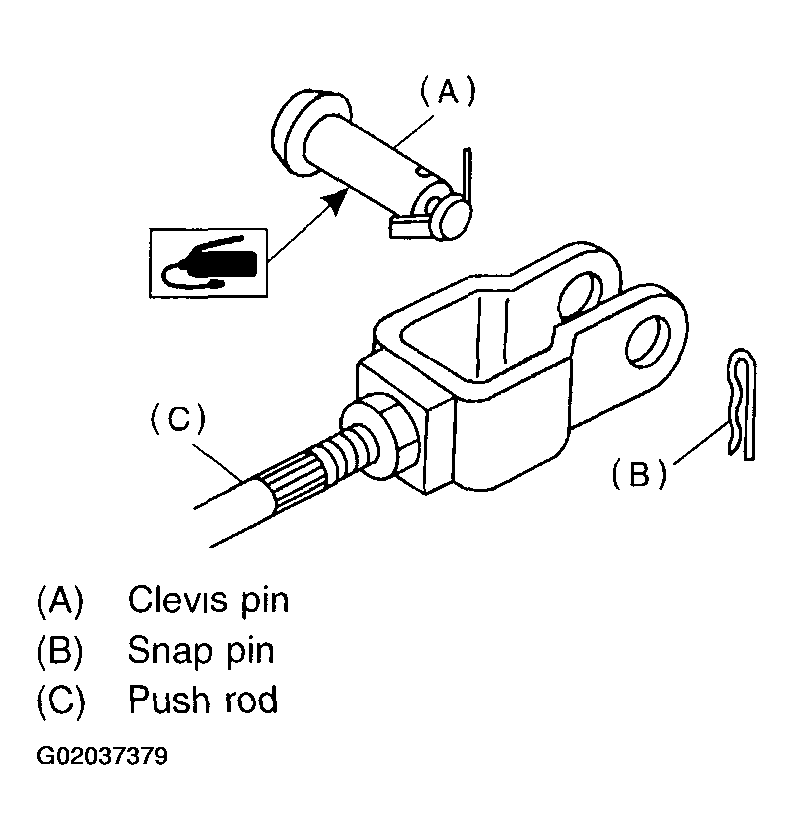

Fig 2: Identifying Push Rod & Components
After bleeding air from system, ensure that clutch operates properly.
See Clutch Fluid Air Bleeding .
Install air cleaner case and air intake duct.
