Master Cylinder: Removal
- Thoroughly drain brake fluid from reservoir tank.

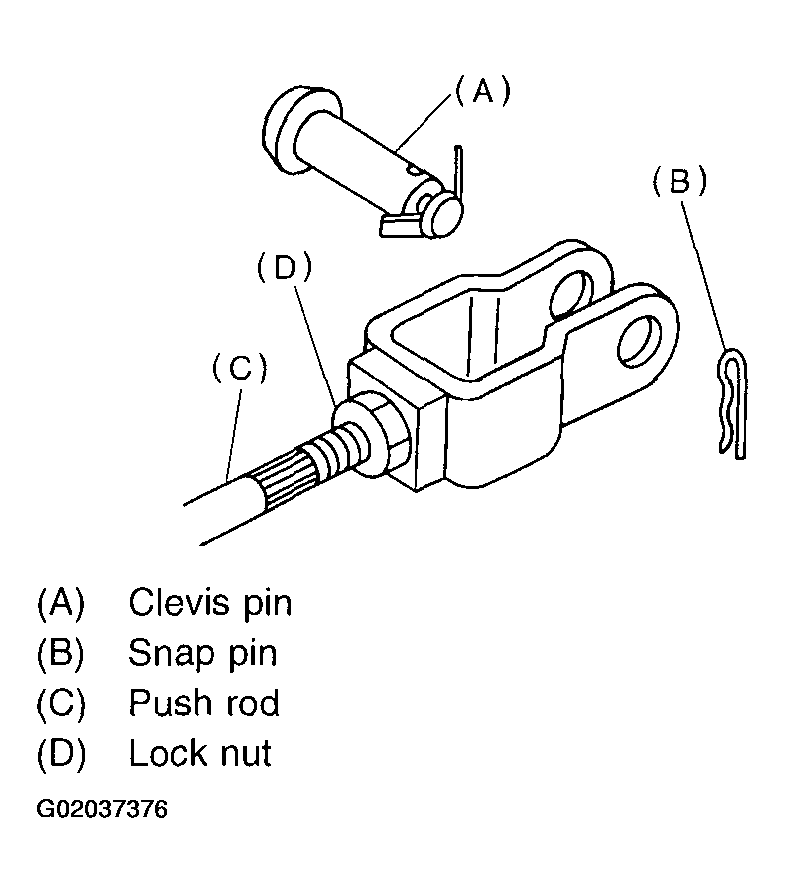

- Remove snap pin, clevis pin and separate push rod of master cylinder from clutch pedal.
- Remove air cleaner case and air intake duct.

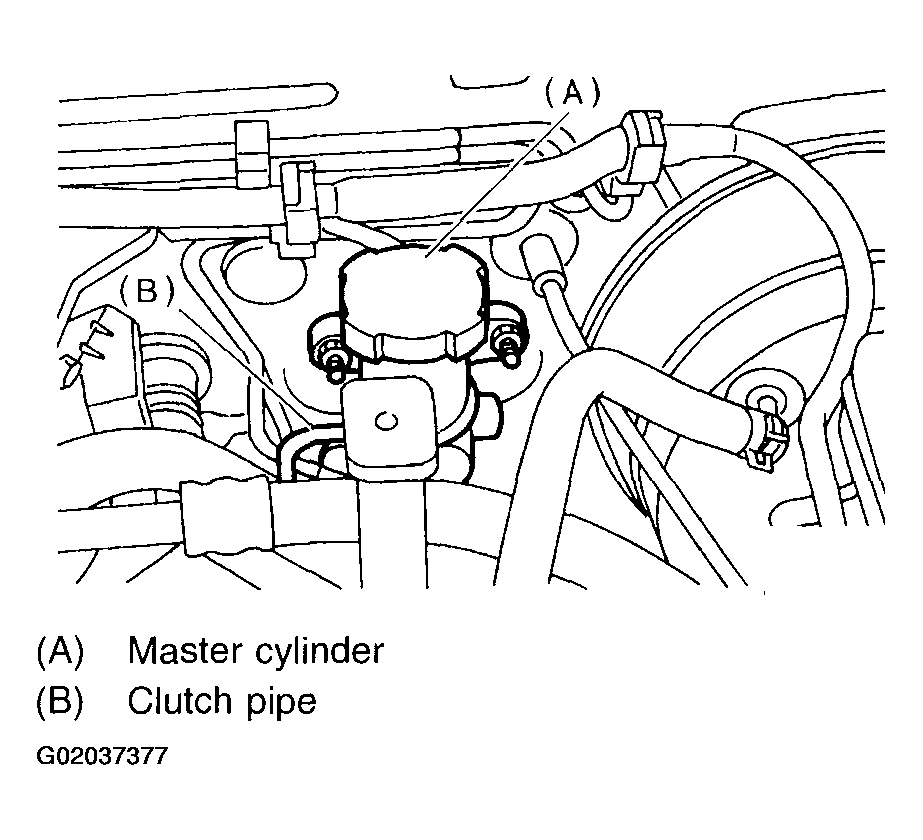

- Remove clutch pipe from master cylinder.
- Remove master cylinder with reservoir tank.CAUTION: Be extremely careful not to spill brake fluid. Brake fluid spilled on the vehicle body will harm the paint surface; wipe it off quickly if spilled.
