Operating Cylinder: Installation

Install in the reverse order of removal.
NOTE: Before installing operating cylinder, apply grease (SUNLIGHT 2: P/N 003602010) to contact point of release lever and operating cylinder.

Tightening torque:
1. T1: 18 N.m (1.8 kgf-m, 13.0 ft-lb)
2. T2: 37 N.m (3.8 kgf-m, 27.5 ft-lb)

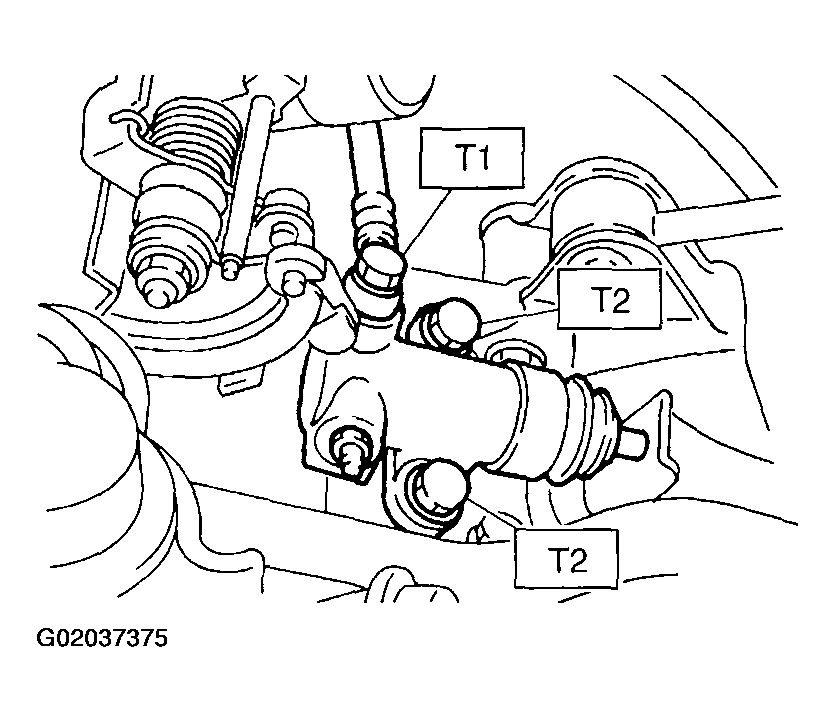

  Fig 1: Identifying Contact Points Of Release Lever & Operating Cylinder
After bleeding air from operating cylinder, ensure that clutch operates properly.
See Clutch Fluid Air Bleeding .
