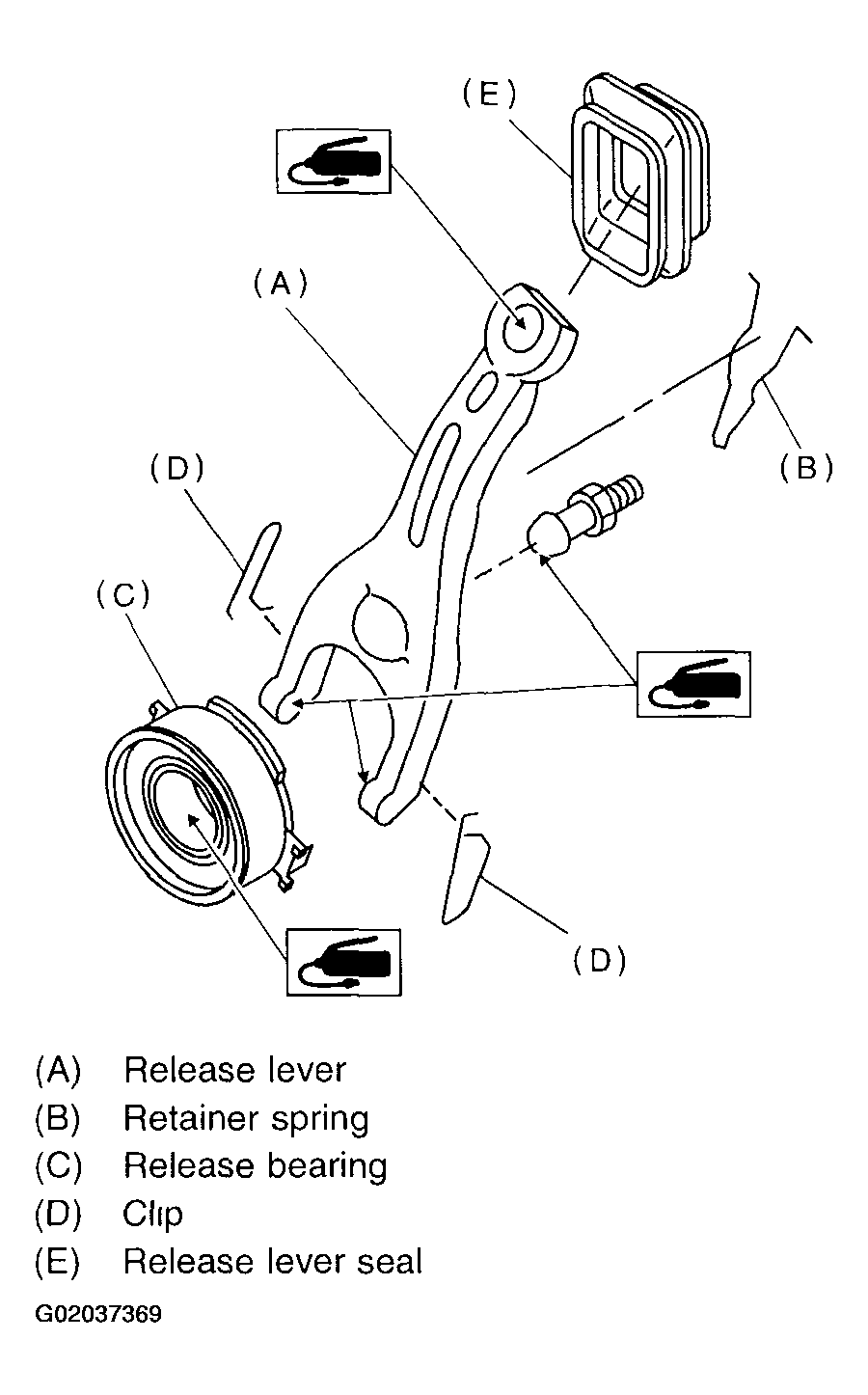

Release Bearing and Lever: Installation
CAUTION:
Before or during assembling, lubricate the following points with a light coat of grease.
- Contact surface of lever and pivot
- Contact surface of lever and bearing
- Transmission main shaft spline (Use grease containing molybdenum disulfide.)
- Contact surface of lever and operating cylinder
- While pushing release lever to pivot and twisting it to both sides, fit retainer spring onto the constricted portion of pivot.NOTE:
- Apply grease (SUNLIGHT 2: P/N 003602010) to contact point of release lever and operating cylinder.
- Confirm that retainer spring is securely fitted by observing it through the main case hole.
- Install release bearing and fasten it with two clips.
- Install release lever seal.
Tightening torque:
- T: 37 N.m (3.8 kgf-m, 27.5 ft-lb)
- After remounting engine and transmission on body.
