Center Differential: Disassembly

NOTE: Do not disassemble center differential because it is a non-disassemble part.

Remove ball bearing using ST.

CAUTION: Do not reuse ball bearing.

ST 498077300 CENTER DIFFERENTIAL BEARING REMOVER

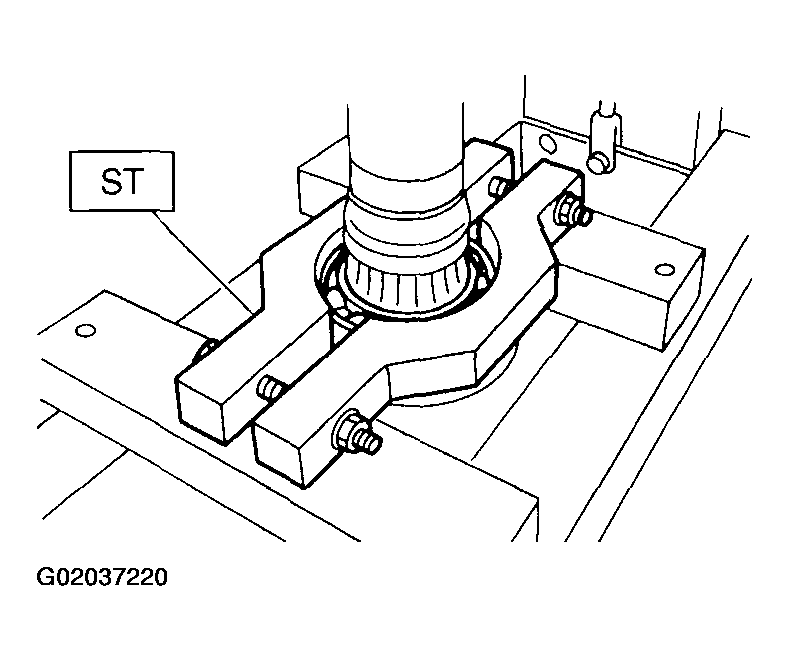

Fig 1: Removing Ball Bearing Using ST
