Front Differential Assembly: Disassembly

Remove right and left snap rings from differential, and then remove two axle drive shafts.
NOTE: During reassembly, reinstall each axle drive shaft in the same place from which it was removed.
Loosen twelve bolts and remove hypoid driven gear.

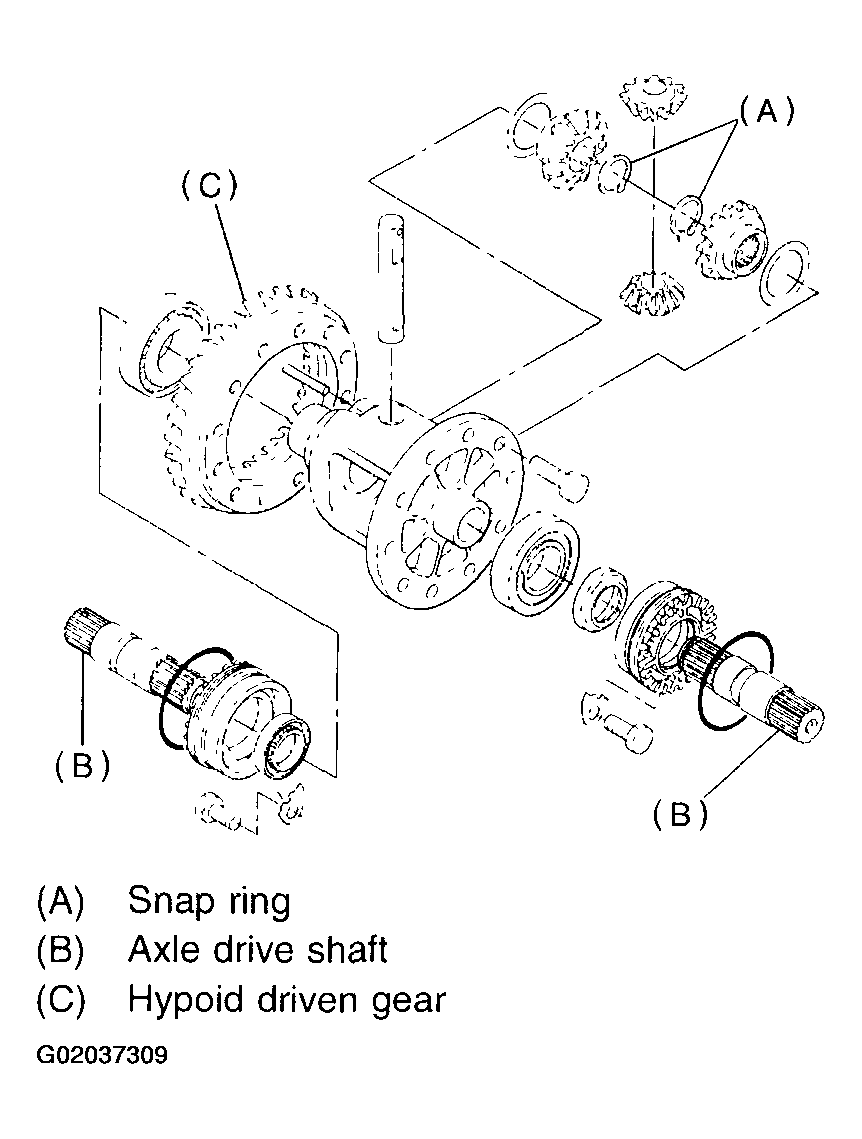

Fig 1: Removing Right And Left Snap Rings From Differential - Removing Two Axle Drive Shafts
Drive out straight pin from differential assembly toward hypoid driven gear.
ST 899904100 REMOVER

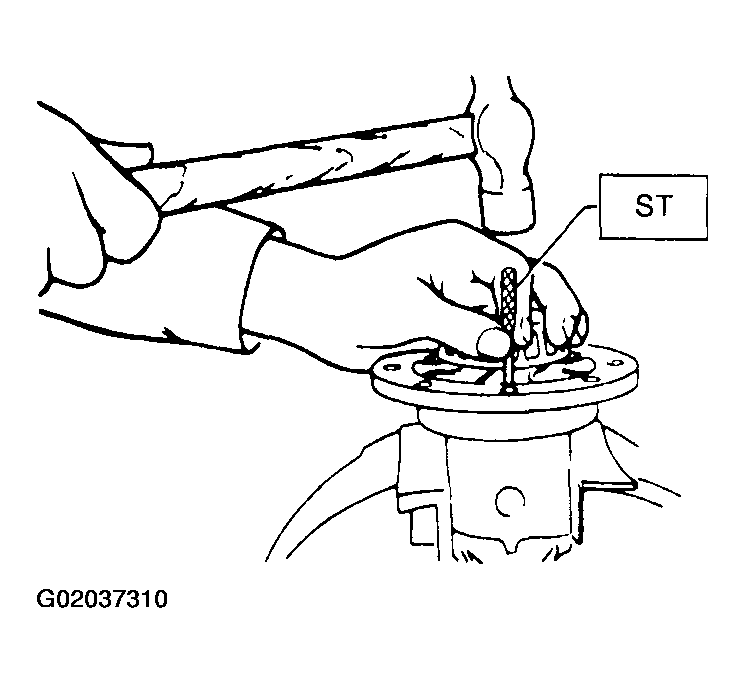

Fig 2: Driving Out Straight Pin
Pull out pinion shaft, and remove differential bevel pinion and gear and washer.

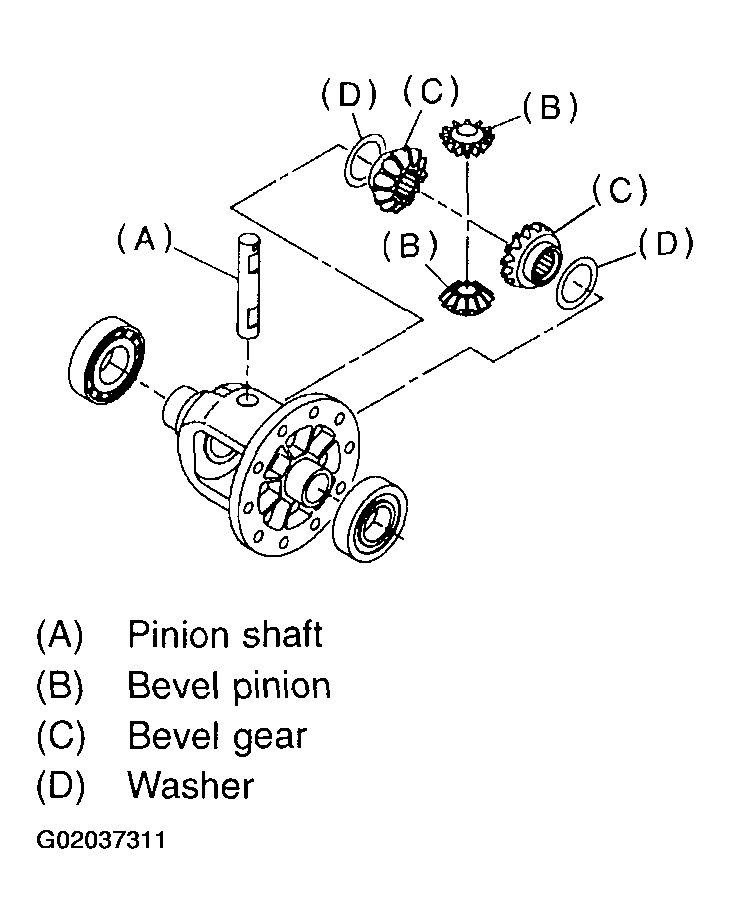

Fig 3: Removing Differential Bevel Pinion, Gear & Washer
Remove roller bearing using ST.
ST 399527700 PULLER SET

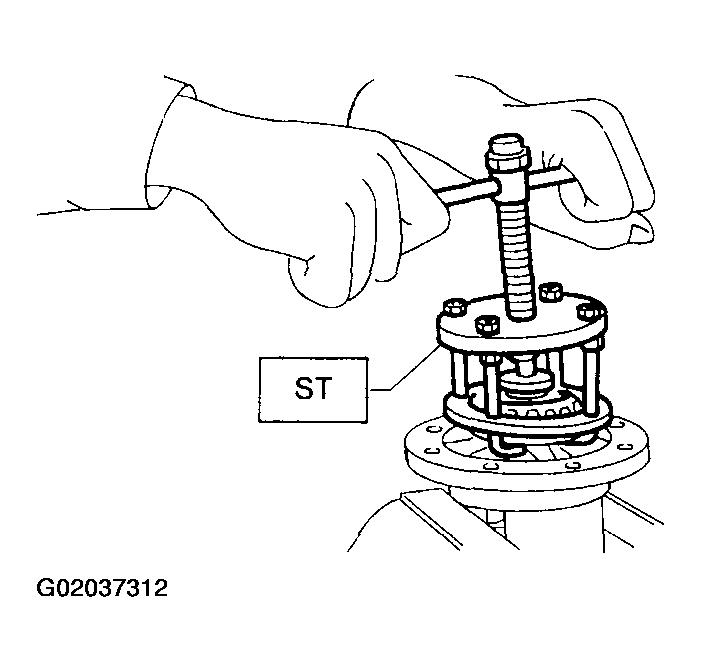

Fig 4: Removing Roller Bearing
