Drive Pinion Assembly

Tightening torque: N.m (kgf-m, ft-lb)

  1. T1:  29 (3, 21.7)
  2. T2:  118 (12, 86.8)
  3. T3:  265 (27, 195)

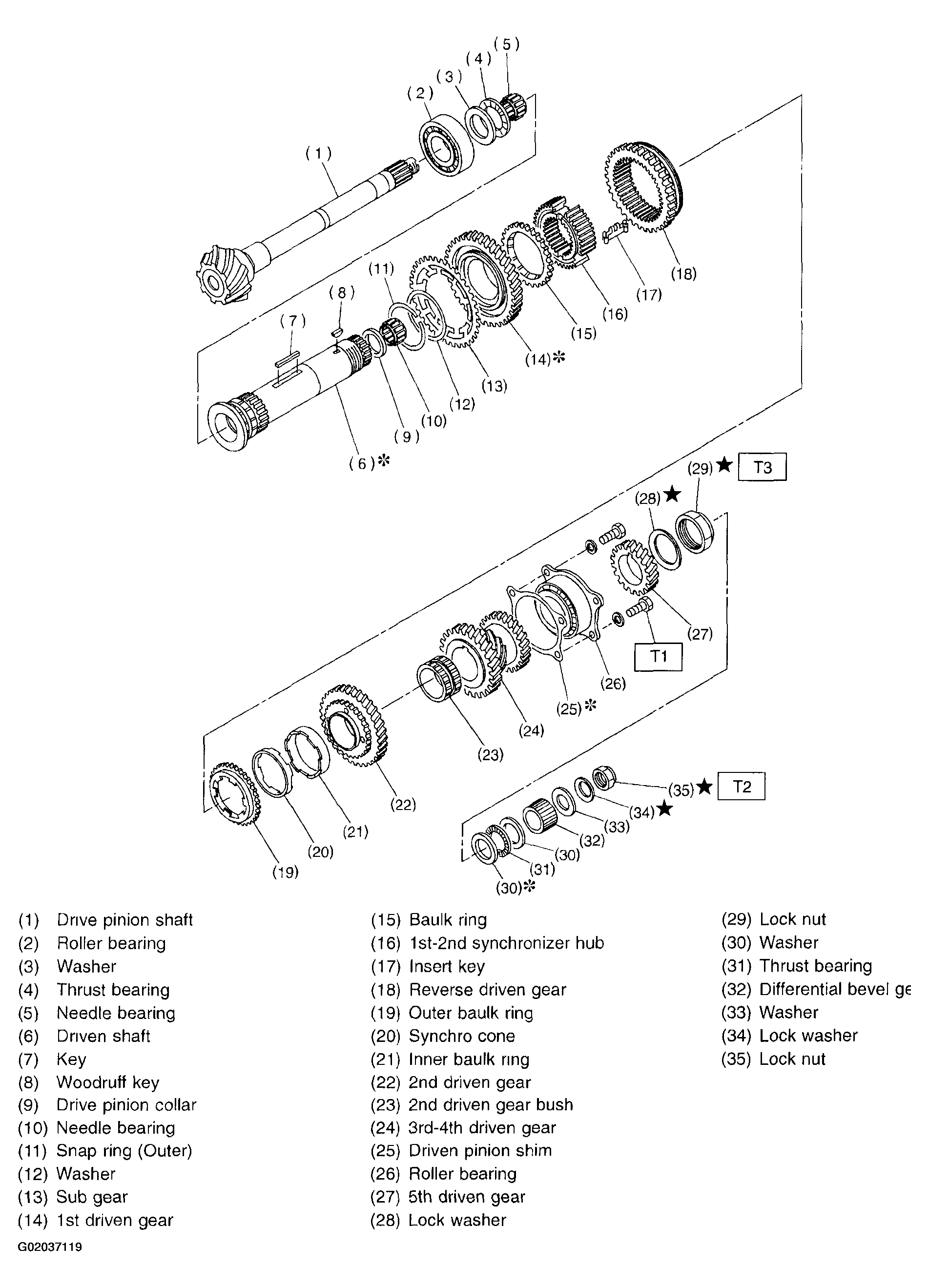

Fig 1: Drive Pinion Assembly Overview
G02037119
