Special Tools

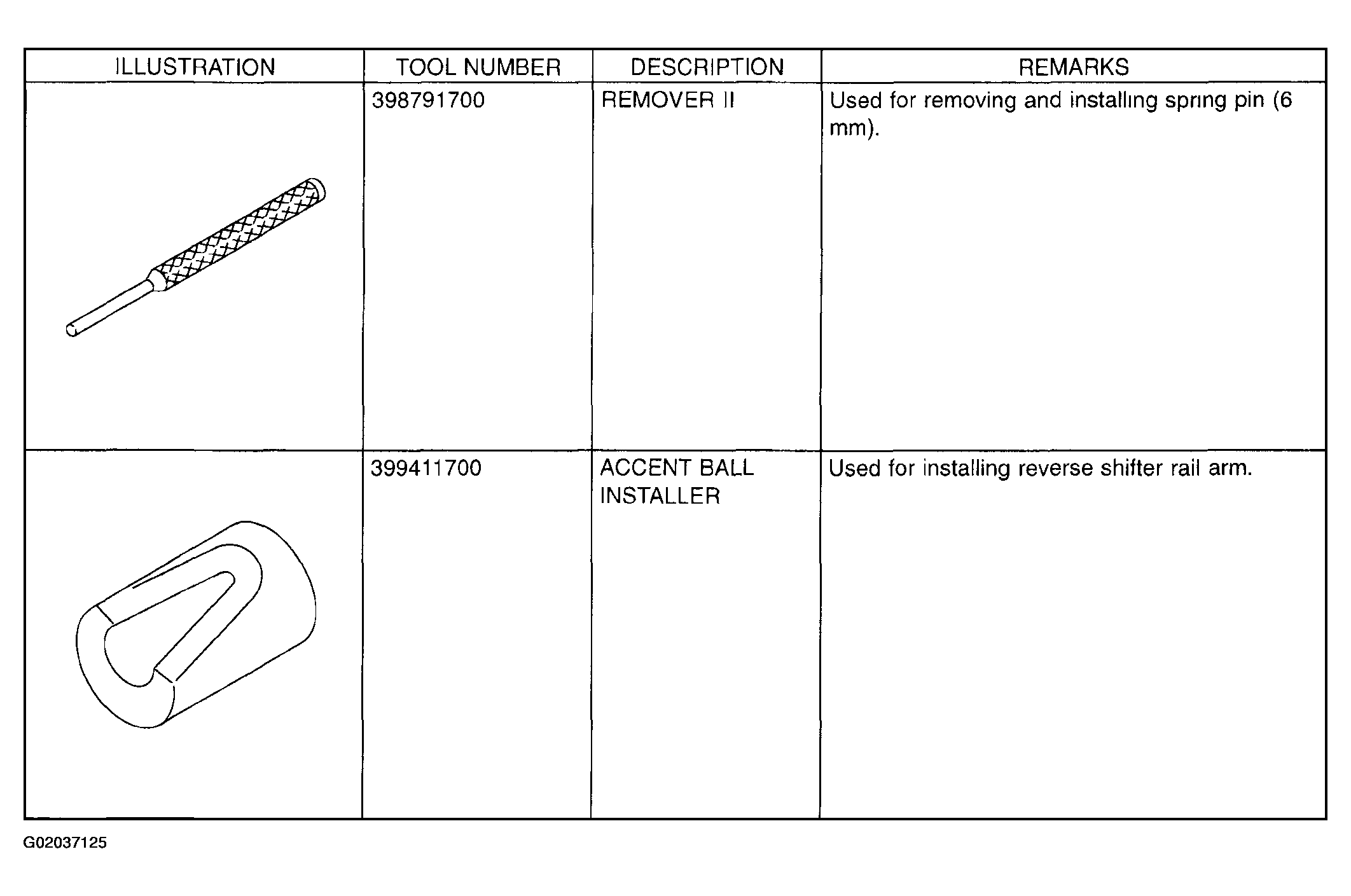

Fig 1: Special Tool Chart No. 1

G02037125

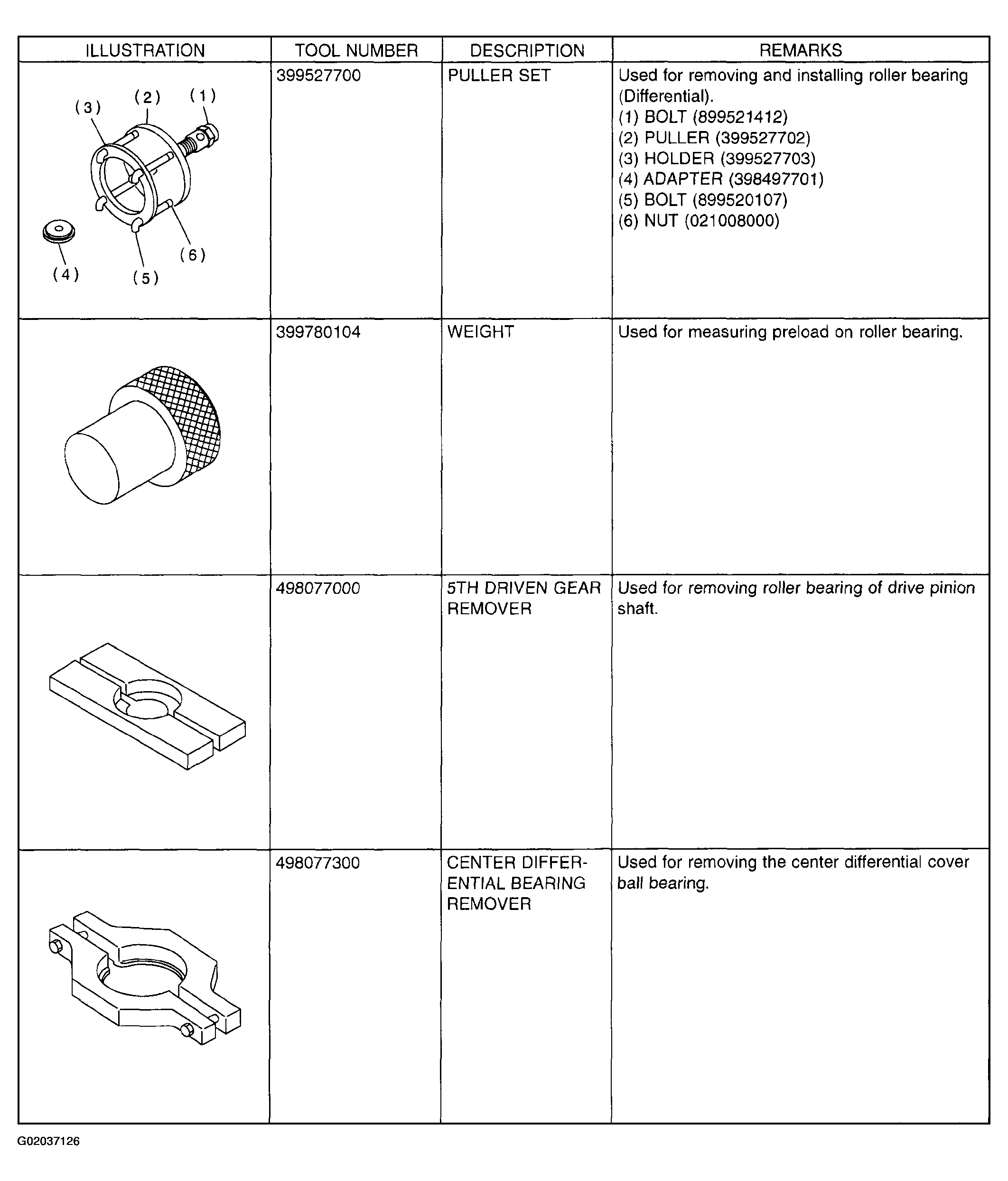

Fig 2: Special Tool Chart No. 2

G02037126

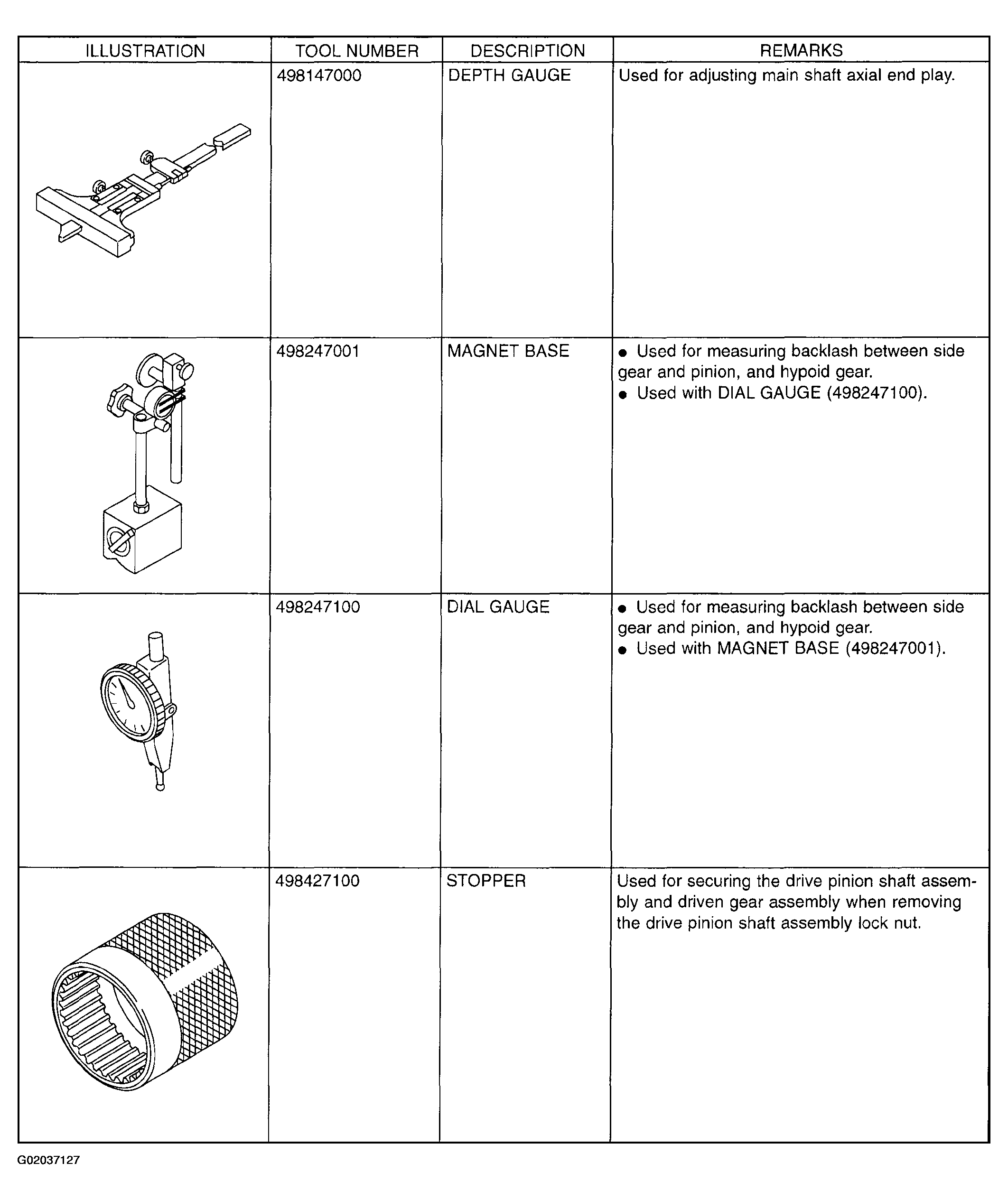

Fig 3: Special Tool Chart No. 3

G02037127

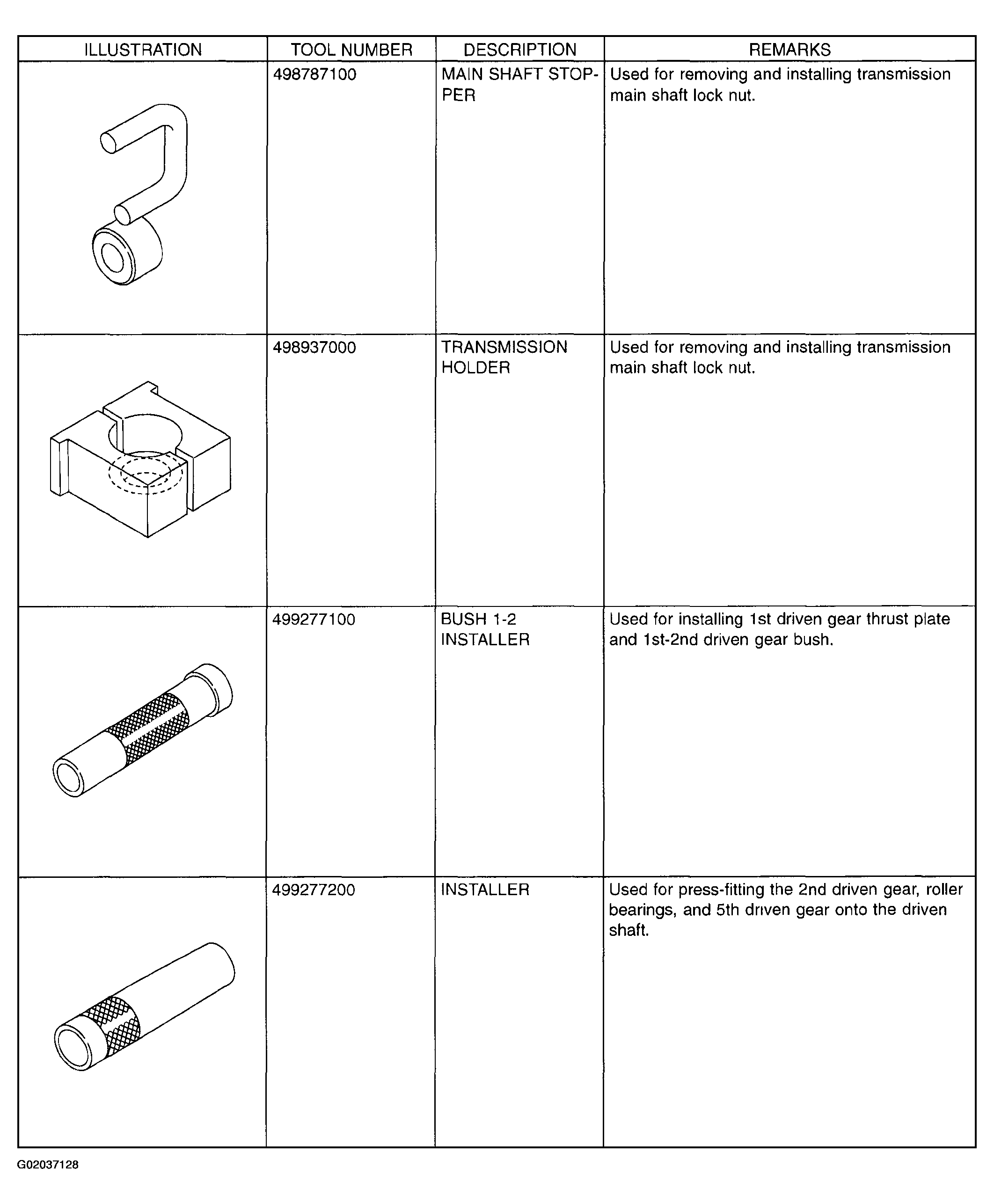

Fig 4: Special Tool Chart No. 4

G02037128

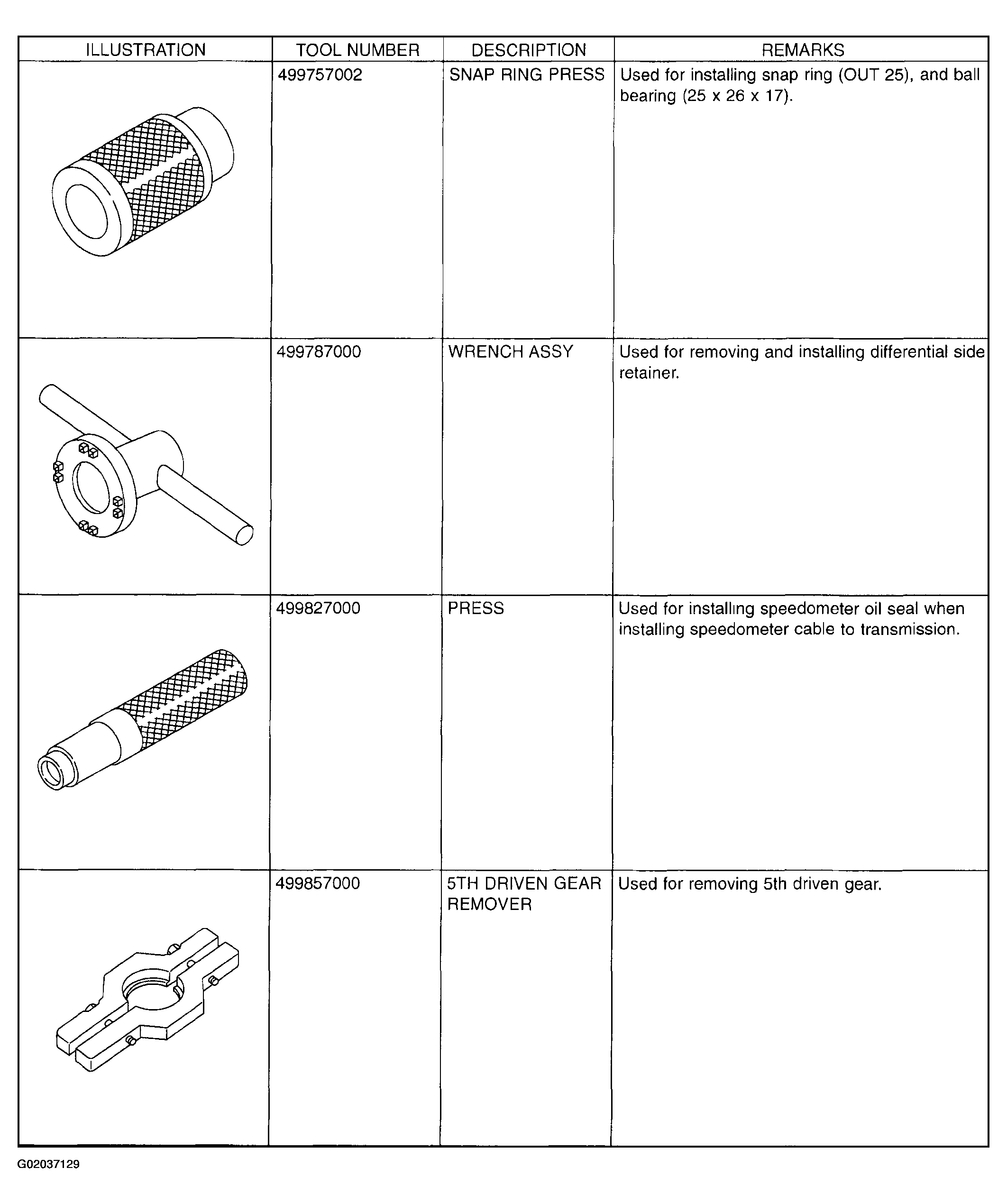

Fig 5: Special Tool Chart No. 5

G02037129

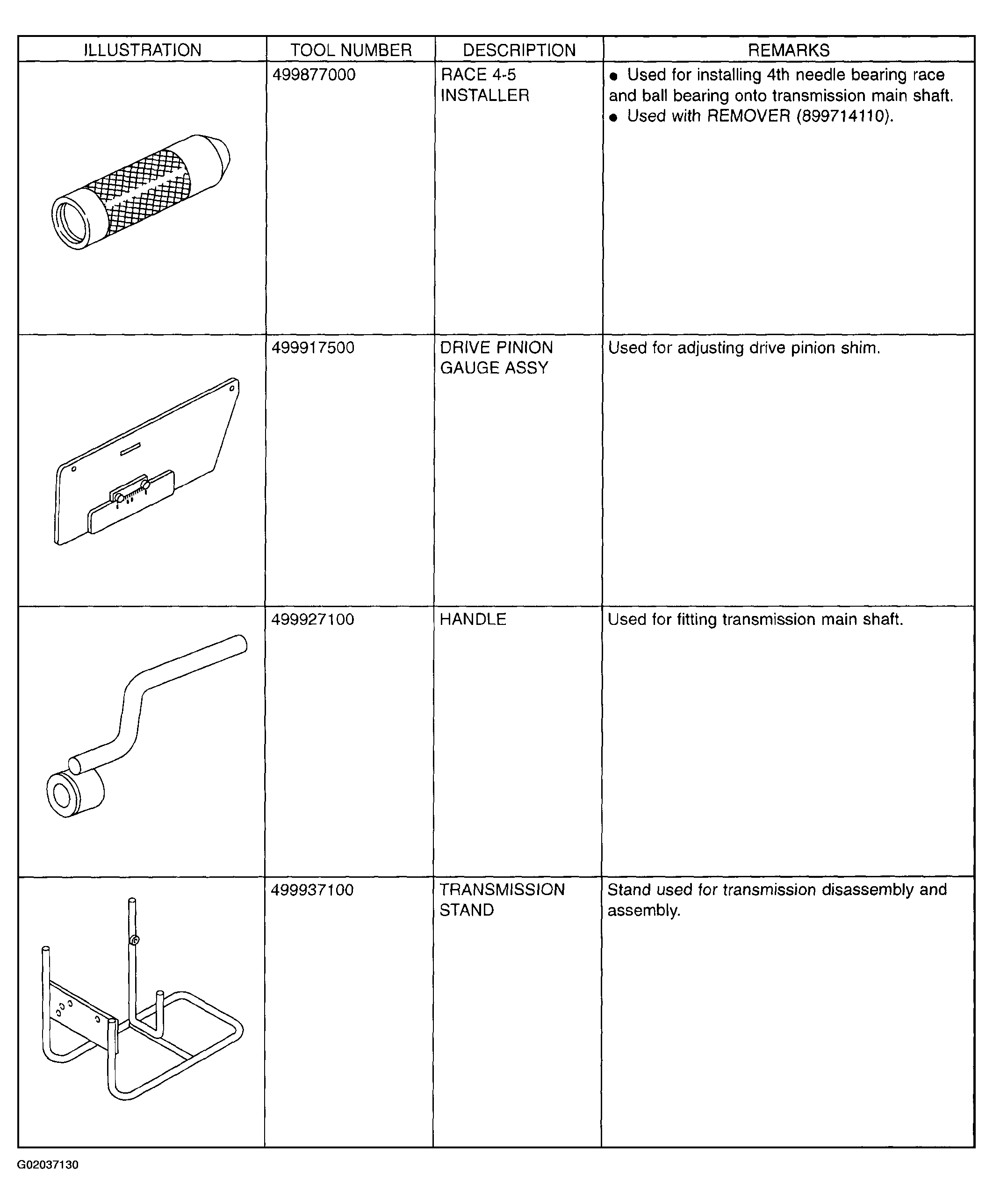

Fig 6: [Special Tool Chart No. 6

G02037130

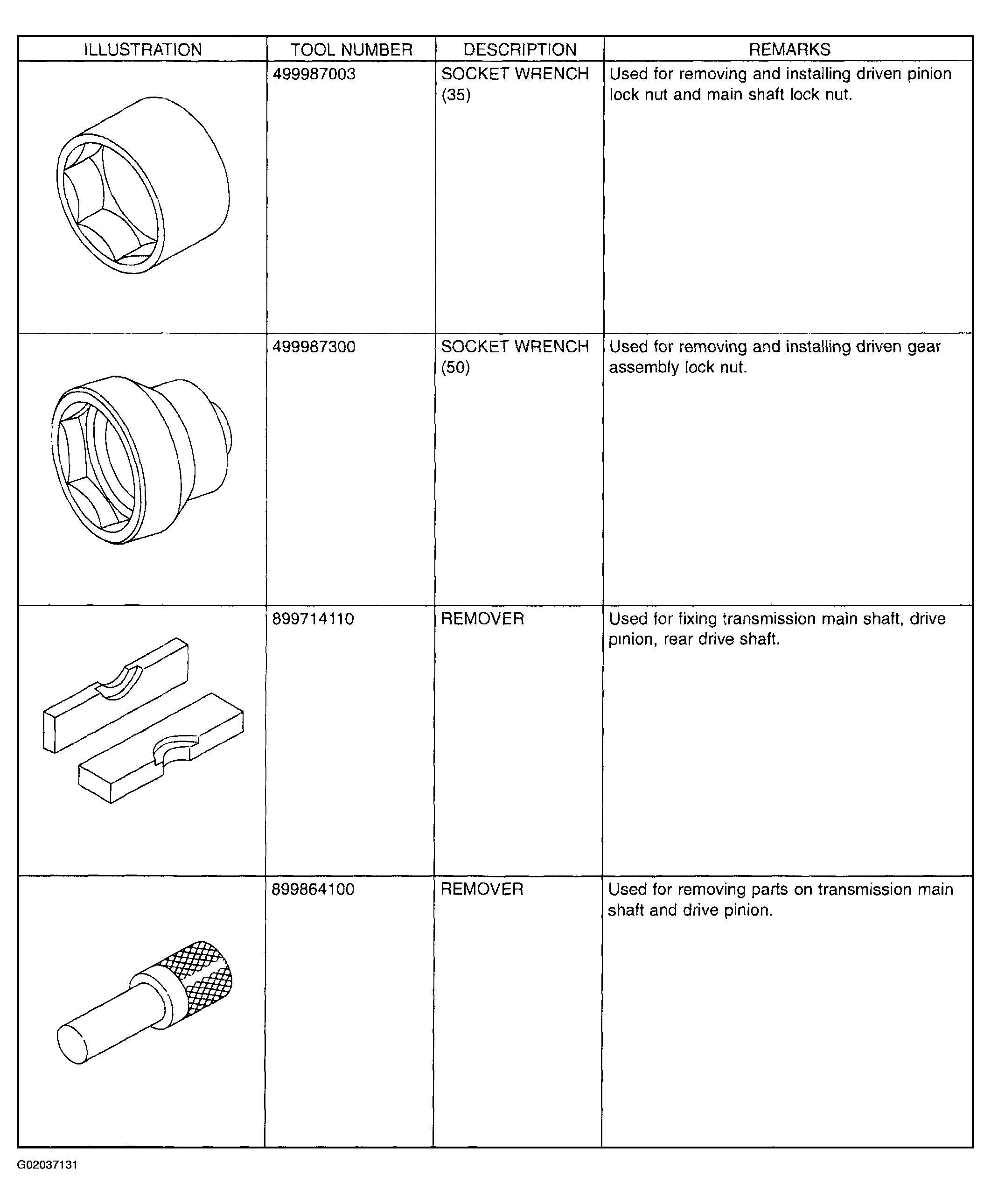

Fig 7: Special Tool Chart No. 7

G02037131

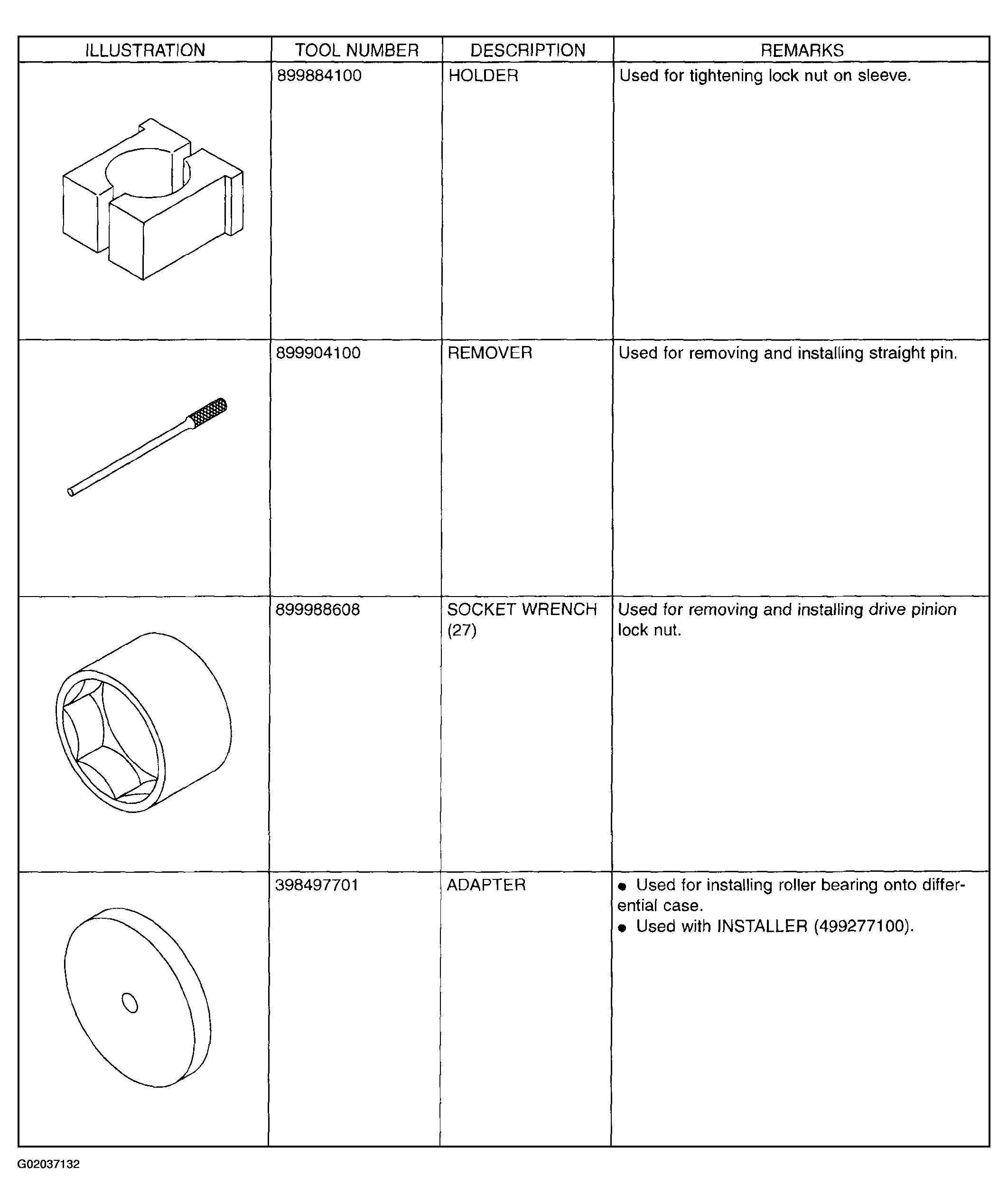

Fig 8: Special Tool Chart No. 8

G02037132

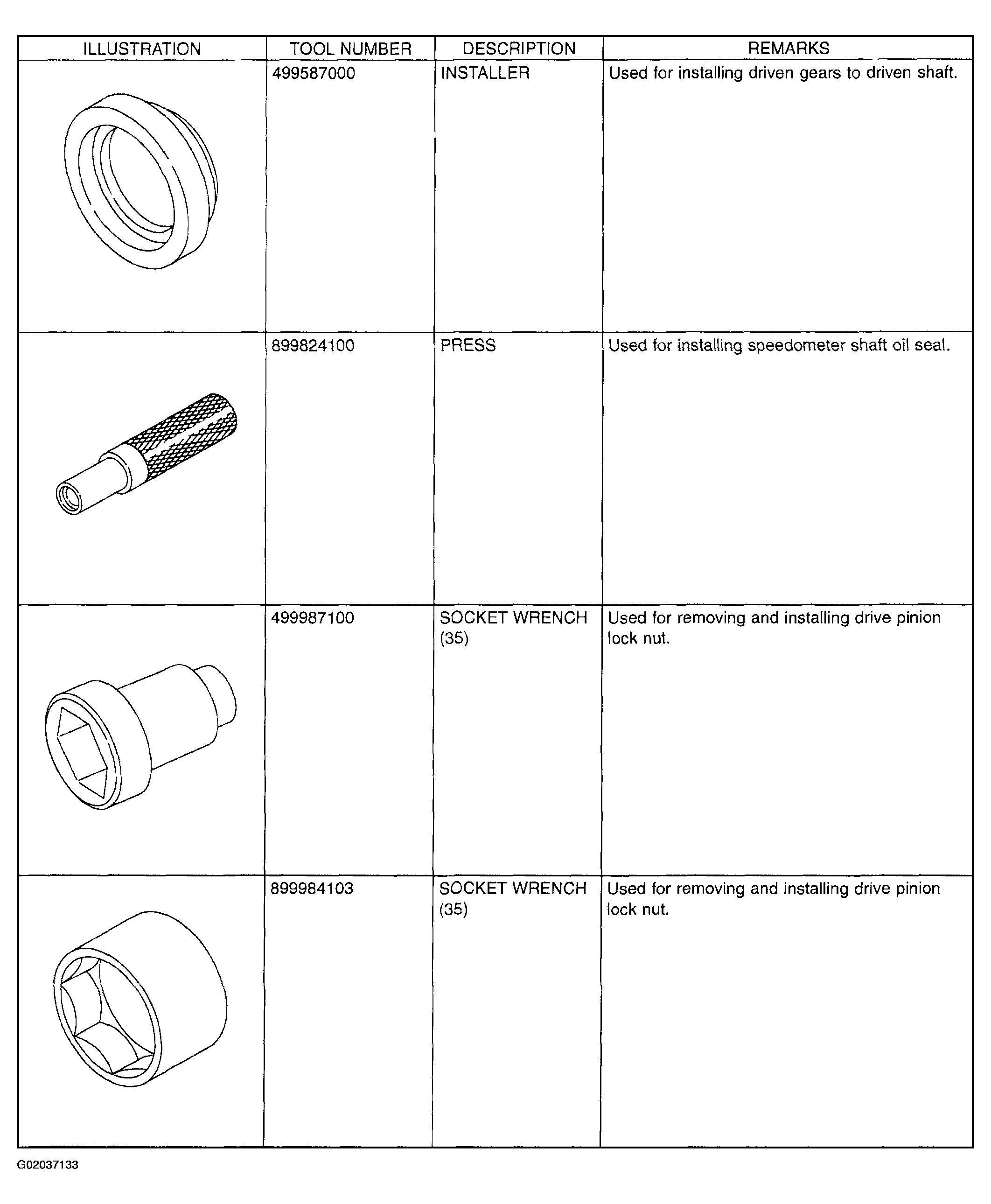

Fig 9: Special Tool Chart No. 9

G02037133

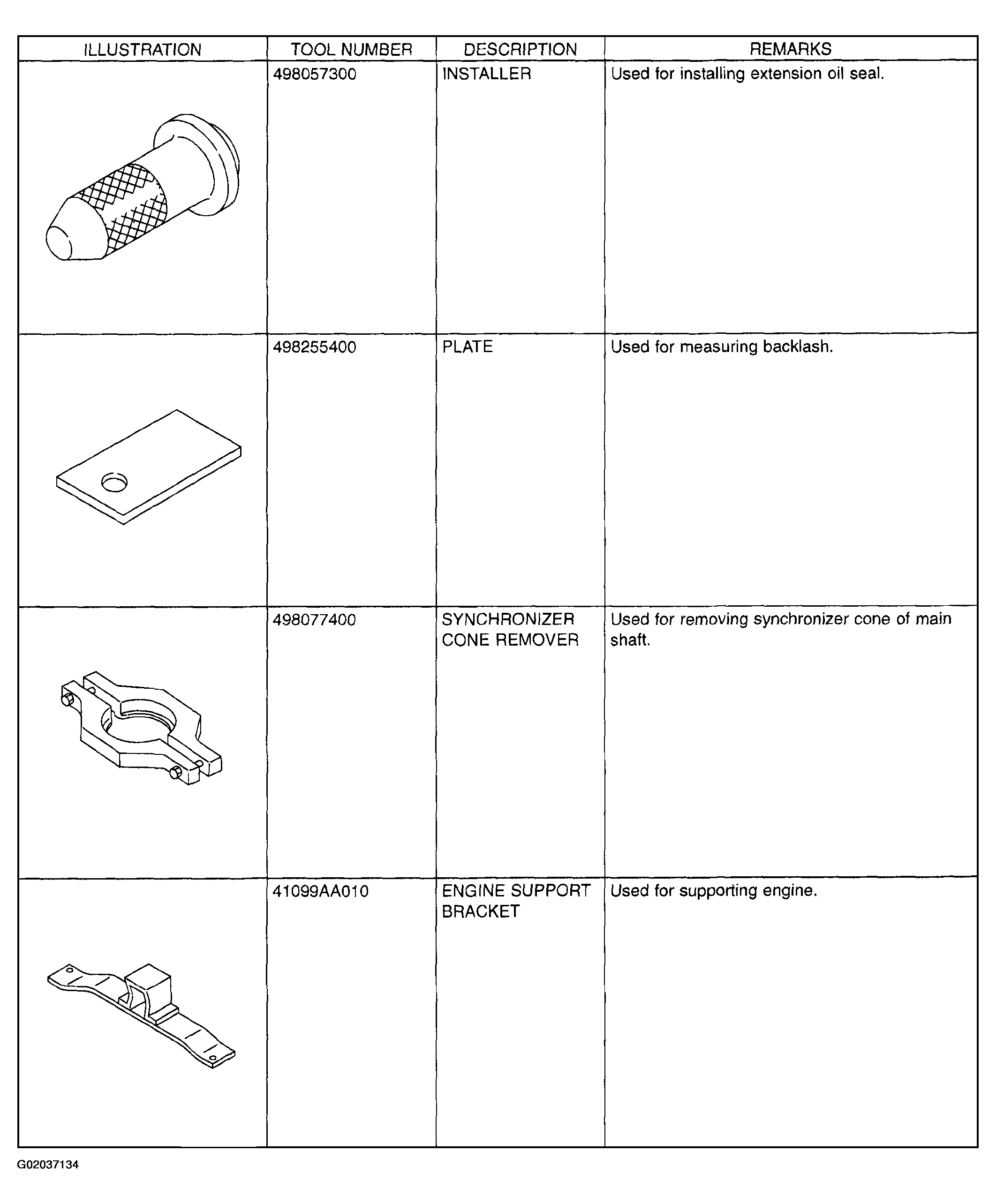

Fig 10: Special Tool Chart No. 10

G02037134

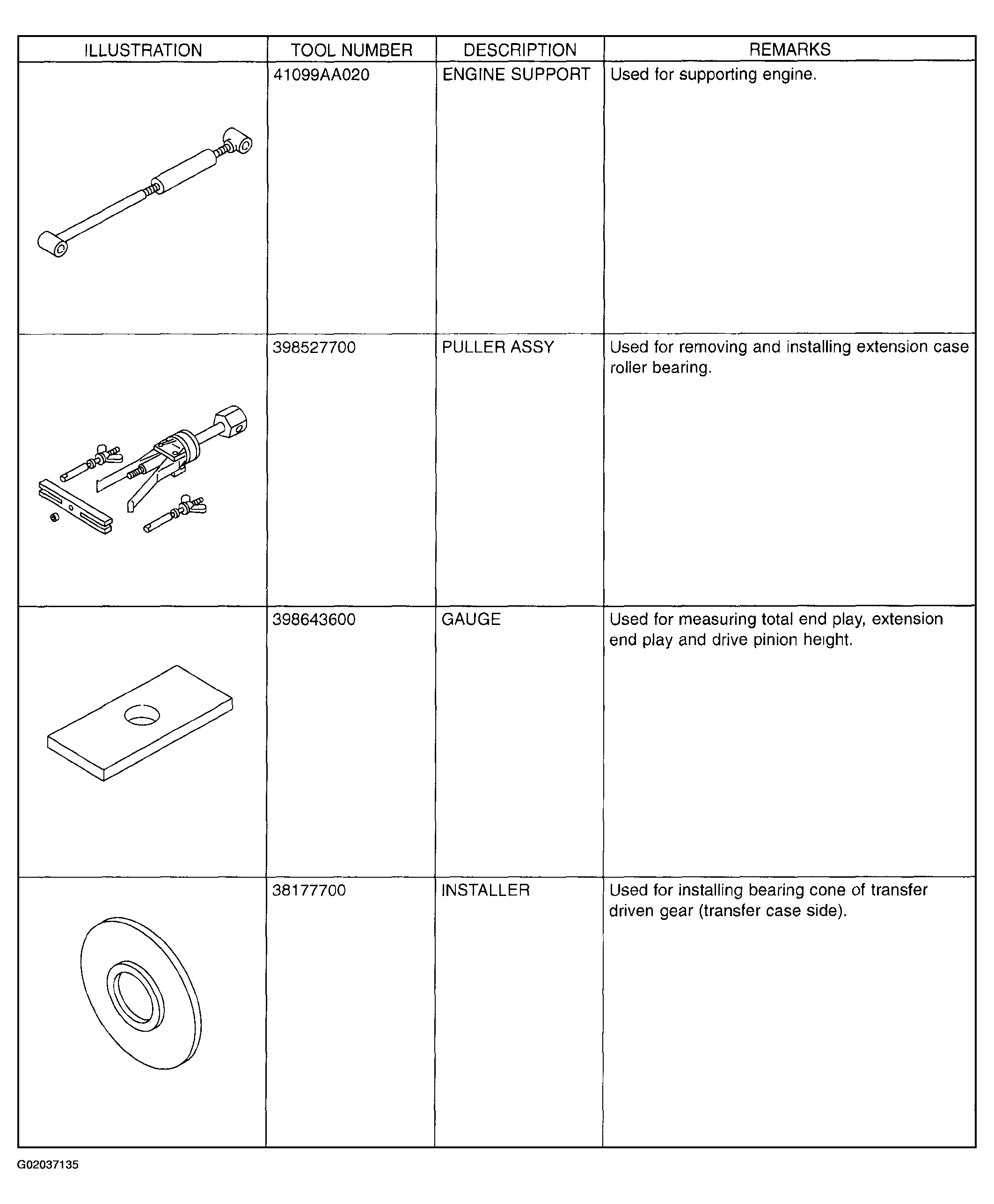

Fig 11: Special Tool Chart No. 11

G02037135

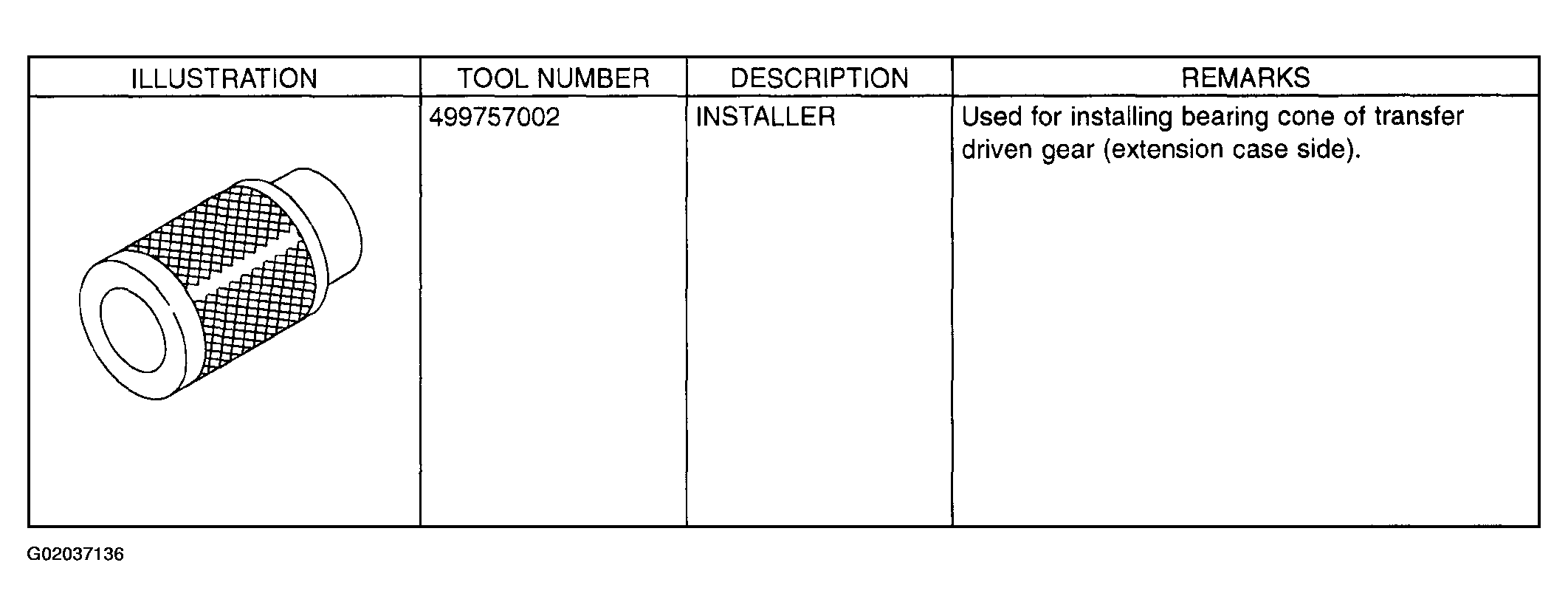

Fig 12: Special Tool Chart No. 12

G02037136
