Extension Assembly

Thrust washer (50 x 61 x t) to taper roller bearing table roller race side clearance

1. 0.2 - 0.3 mm T (0.008 - 0.012 in T)
   NOTE: T: Tight

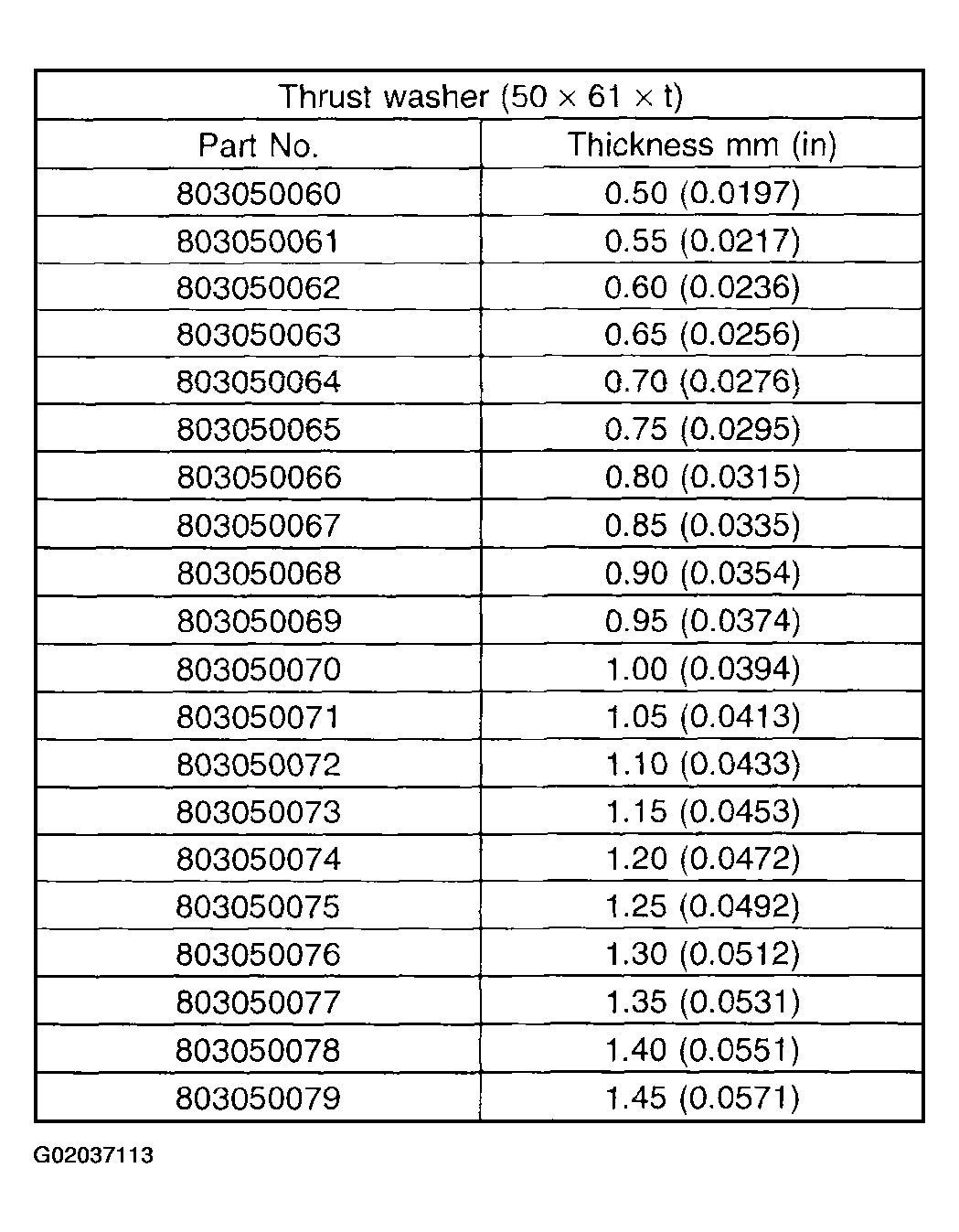

   Fig 1: Thrust Washer Thickness Chart (Tapered Roller Bearing)



   Thrust washer to center differential side clearance

2. 0.15 - 0.35 mm (0.0059 - 0.0138 in)

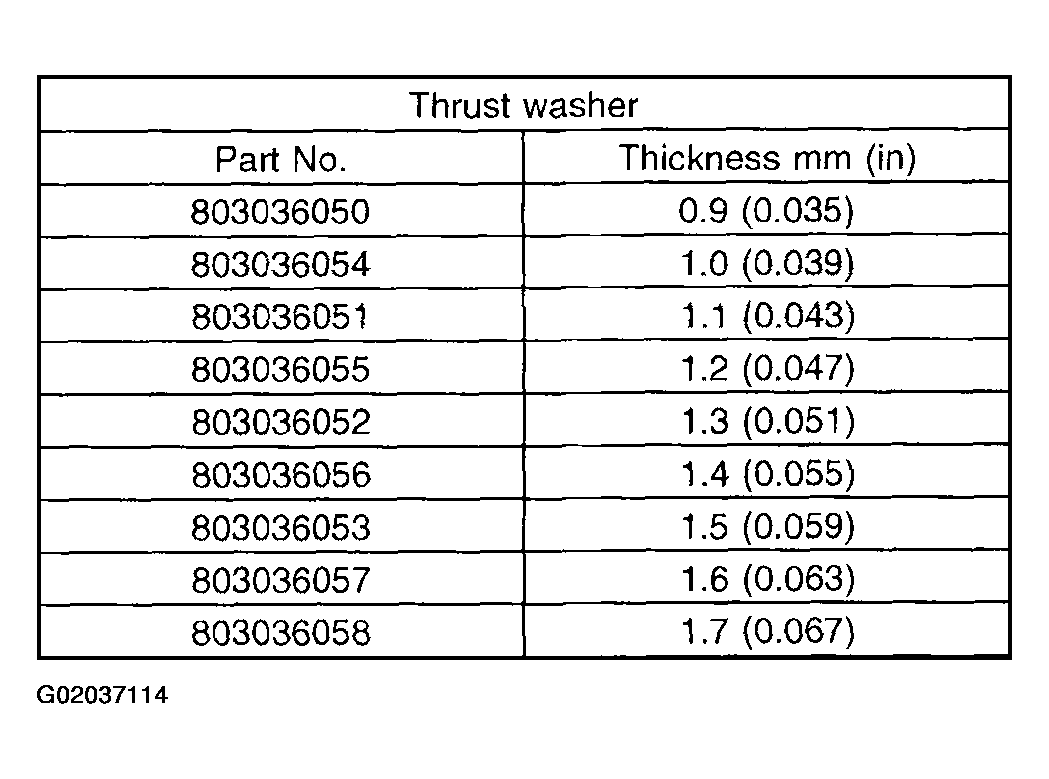

   Fig 2: Thrust Washer Thickness Chart (Center Differential)
