Front Differential

Bevel gear to pinion backlash

1. 0.13 - 0.18 mm (0.0051 - 0.0071 in)

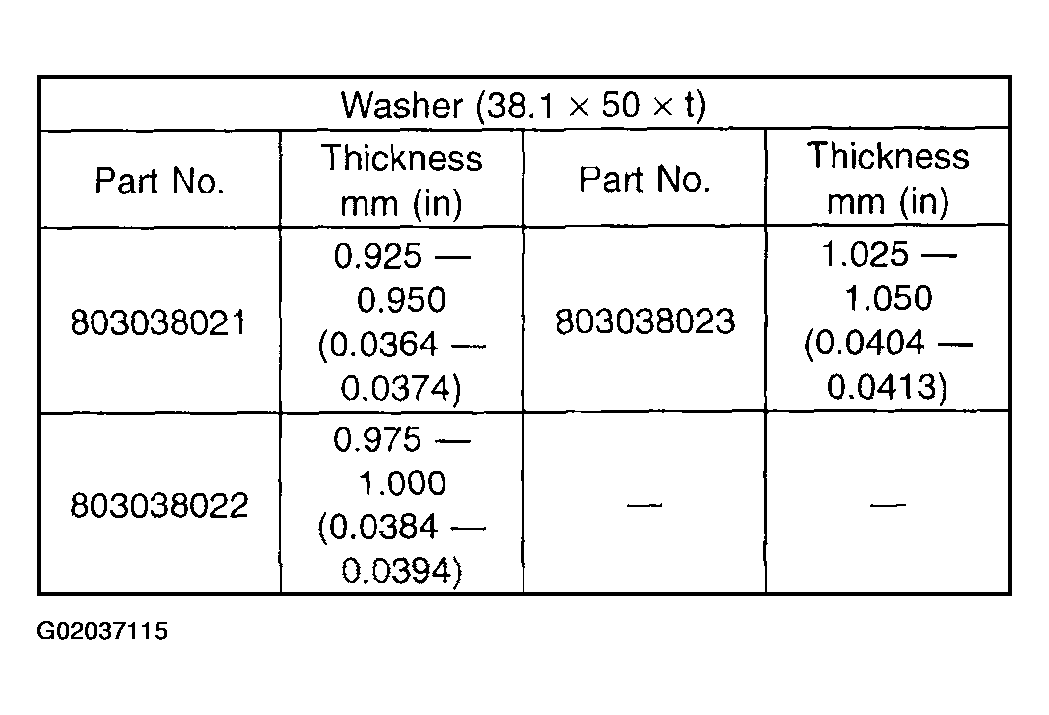

   Fig 1: Bevel Gear Washer Chart



   Pinion shaft to axle drive shaft clearance

2. 0 - 0.2 mm (0 - 0.008 in)

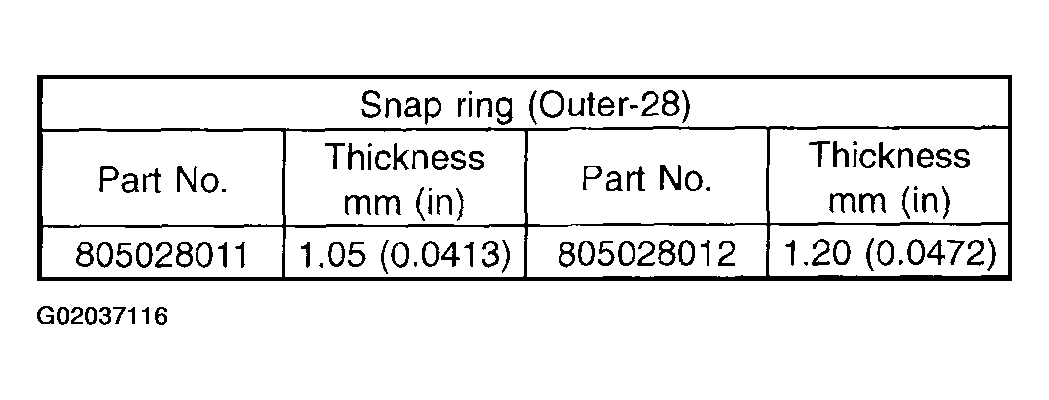

   Fig 2: Pinion Shaft To Axle Drive Shaft Clearance Washer Chart
