Transmission Case Assembly

Drive pinion shim adjustment Hypoid gear backlash

  1. 0.13 - 0.18 mm (0.0051 - 0.0071 in)

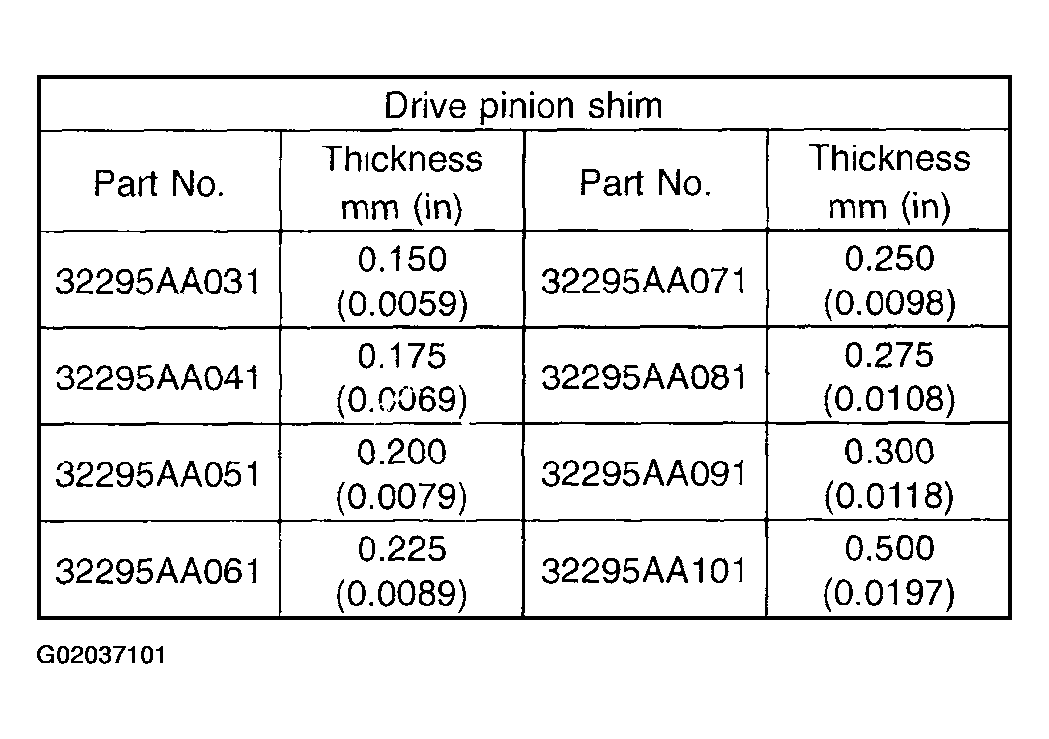

    Fig 1: Drive Pinion Shim Adjustment Chart
    G02037101

Selection of main shaft rear plate

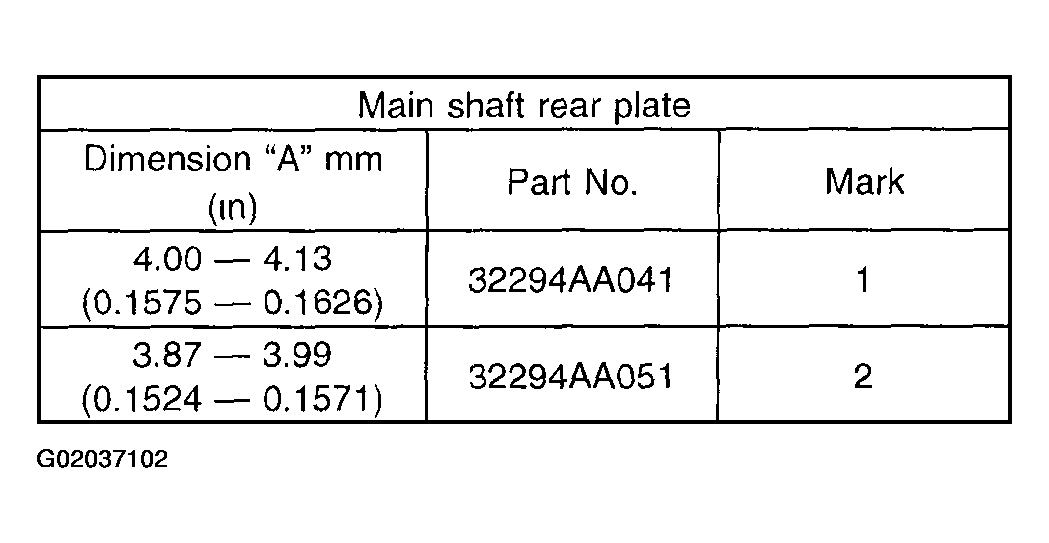

Fig 2: Selecting Main Shaft Rear Plate Chart
G02037102
