Reverse Check Sleeve: Adjustment

  1. Shift shifter arm to "5th" and then to reverse to see if reverse check mechanism operates properly.
  2. Also check to see if arm returns to neutral when released from the reverse position. If arm does not return properly, replace reverse check plate.

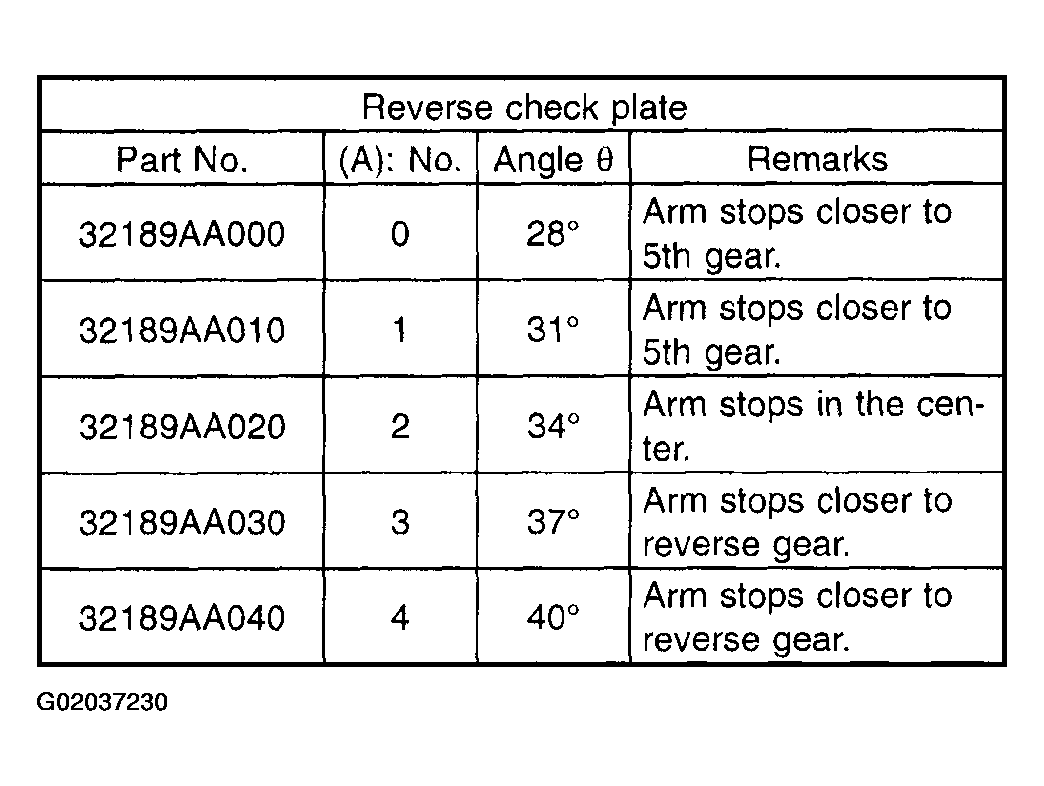

    Fig 1: Reverse Check Plate Chart
    G02037230
    Fig 2: Checking Reverse Check Plate
    G02037231
