Reverse Check Sleeve: Inspection

Make sure the cutout section of reverse accent shaft is aligned with the opening in reverse check sleeve.
Spin cam by hand for smooth rotation.
Move cam and shaft all the way toward plate and release.
If cam does not return properly, replace reverse check spring; if shaft does not, check for scratches on the inner surface of sleeve. If sleeve is in good order, replace spring.

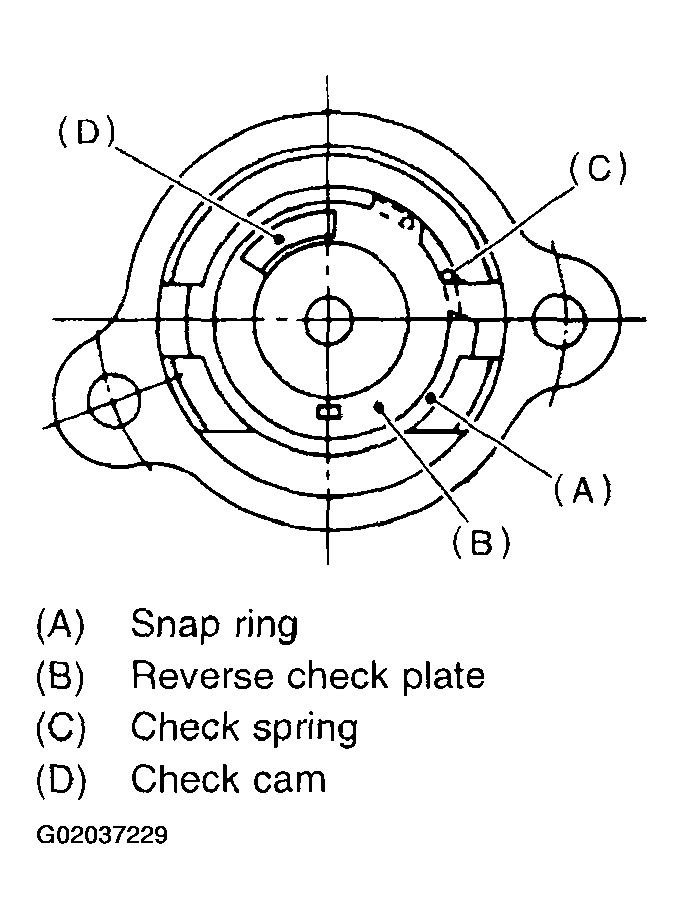

Fig 1: Checking Reverse Check Sleeve Assembly
Select a suitable reverse accent shaft and reverse check plate. See ADJUSTMENT .
