Extension Case

  1. Using ST, install oil seal to extension case. See Oil Seal  .
    CAUTION: Use new oil seal.
  2. Install shift bracket to extension case.

    Tightening torque:

    1. 25 N.m (2.5 kgf-m, 18.1 ft-lb)

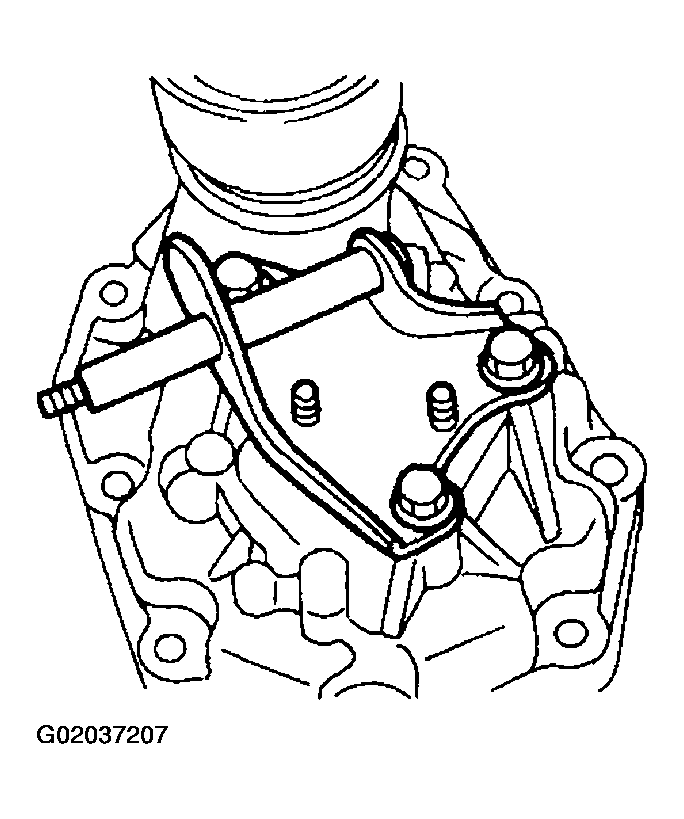

      Fig 1: Installing Shift Bracket
      G02037207
  3. Install transfer drive gear to extension case. See INSTALLATION  .
