Transfer Case

  1. Remove reverse check assembly. See Reverse Check Sleeve  .
  2. Remove oil guide.

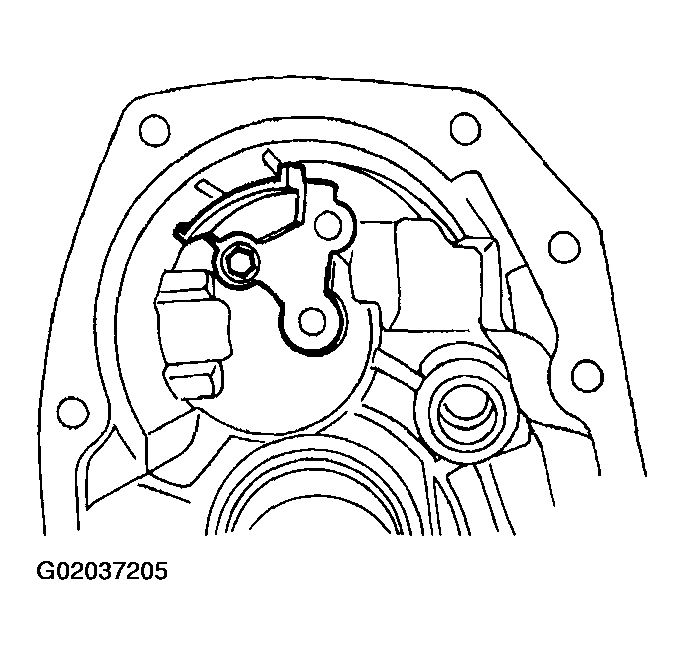

    Fig 1: Removing Oil Guide
    G02037205
