Transfer Drive Gear: Disassembly

  1. Remove snap ring.

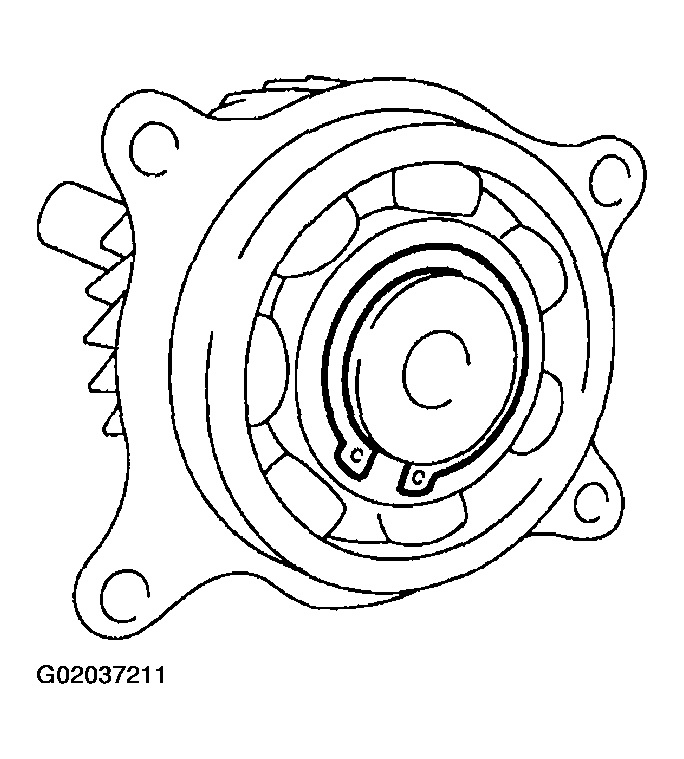

    Fig 1: Removing Snap Ring
    G02037211
  2. Remove ball bearing.
    Fig 2: Removing Ball Bearing
    G02037212
