Transfer Driven Gear: Removal

  1. Remove the manual transmission assembly from vehicle. See Manual Transmission Assembly  .
  2. Remove back-up light switch and neutral position switch. See Switches and Harness  .
  3. Remove transfer case with extension case assembly. See Transfer Case and Extension Case Assembly  .
  4. Remove extension case assembly.
  5. Remove transfer driven gear.

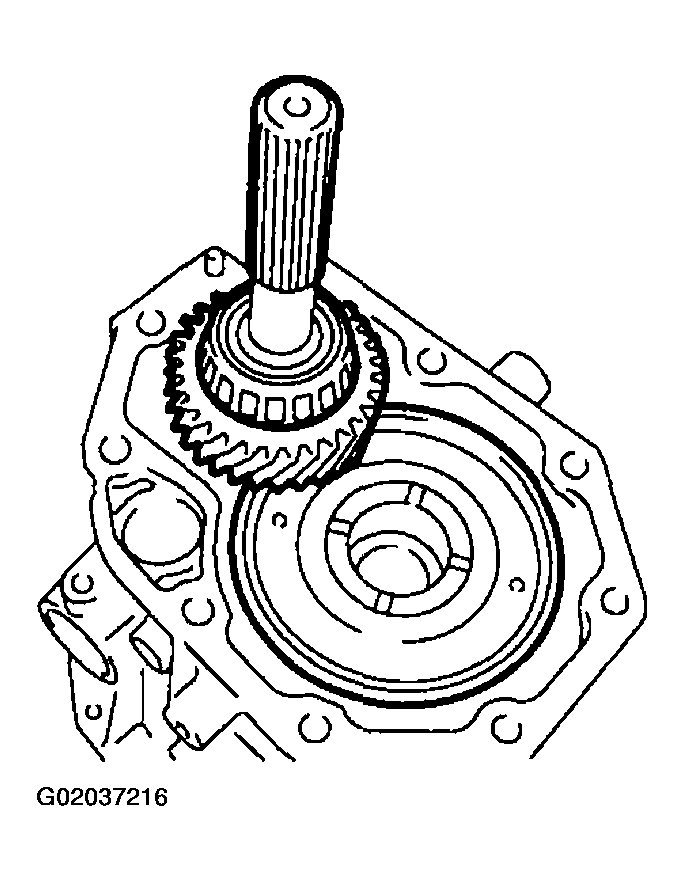

    Fig 1: Removing Transfer Driven
    G02037216
  6. Remove bearing cup.

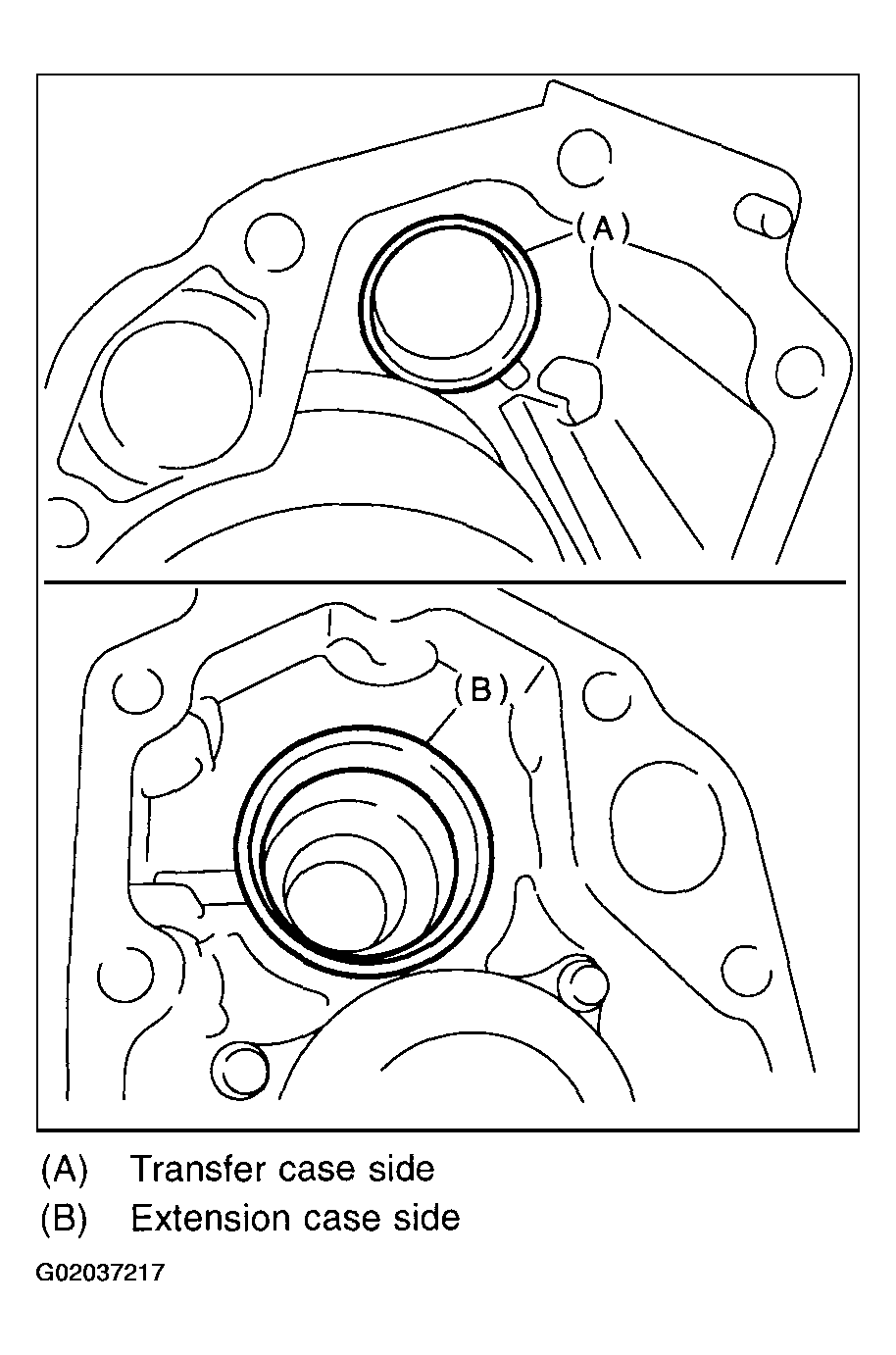

    Fig 2: Removing Bearing Cup
    G02037217
