Transmission Gear Oil: Replacement

Lift-up the vehicle.
Drain transmission gear oil completely.
CAUTION: Directly after the engine has been running, the transmission gear oil is hot. Be careful not to burn yourself.

NOTE: Tighten transmission gear oil drain plug after draining transmission gear oil.

Tightening torque:
1. 44 N.m (4.5 kgf-m, 32.5 ft-lb)

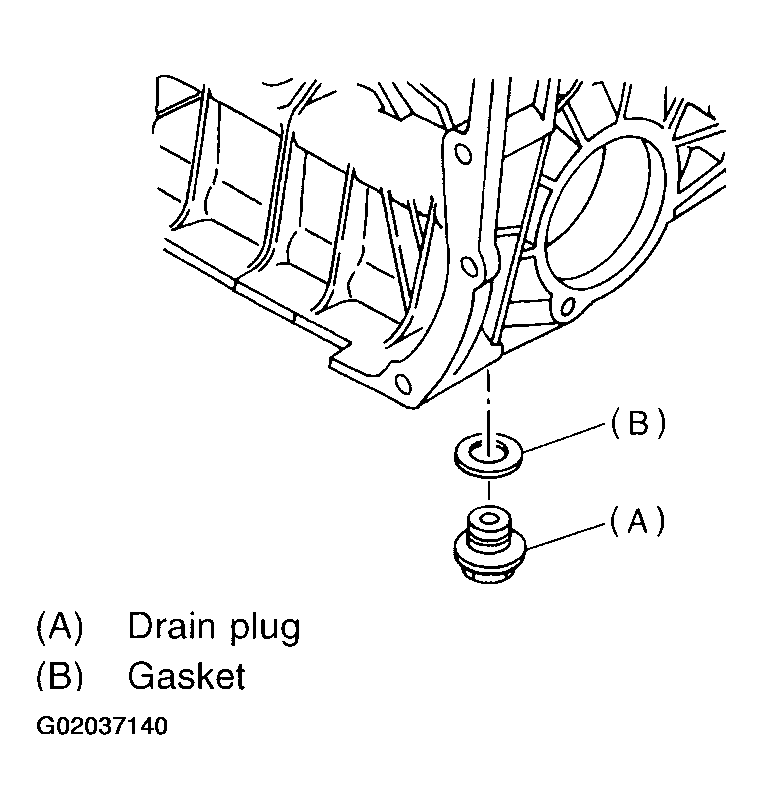

  Fig 1: Installing Drain Plug
Pour gear oil into the gauge hole.
Recommended gear oil:
1. Use GL-5 or equivalent.
  Gear oil capacity:
2. 3.5 l (3.7 US qt, 3.1 Imp qt)
Check the level of the transmission gear oil.
CAUTION: When inserting the level gauge into transmission gear, align the protrusion on the side of the top part of the level gauge with the notch in the gauge hole.

NOTE: The level should be within the specified range marked on the gauge.
