Pitching Stopper

  1. Disconnect battery ground terminal.
  2. Remove the air intake duct and cleaner case.
  3. Remove the pitching stopper.

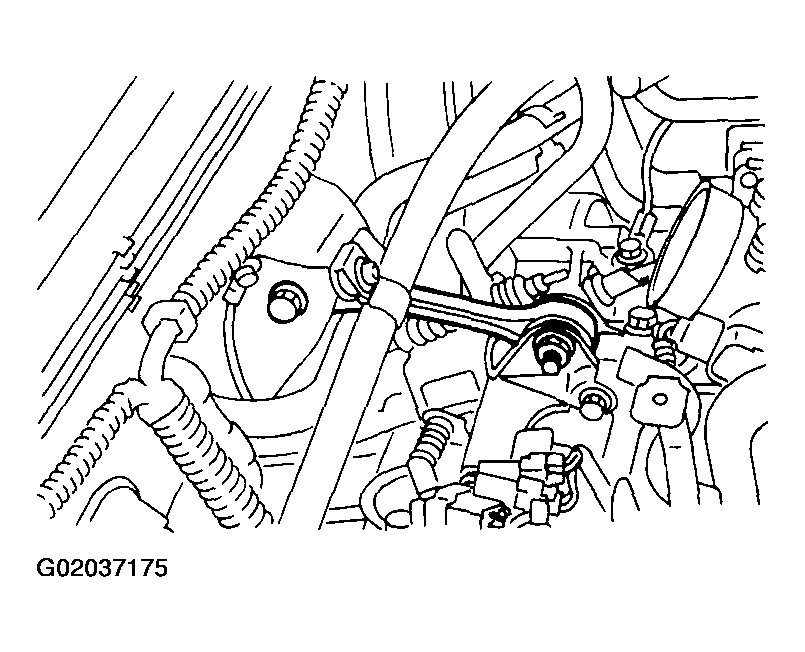

    Fig 1: Removing the pitching stopper
    G02037175
