Fuel Cut Valve: Removal

  1. Remove fuel tank. See REMOVAL  , Fuel Tank.
  2. Move clip and disconnect evaporation hose from fuel cut valve.

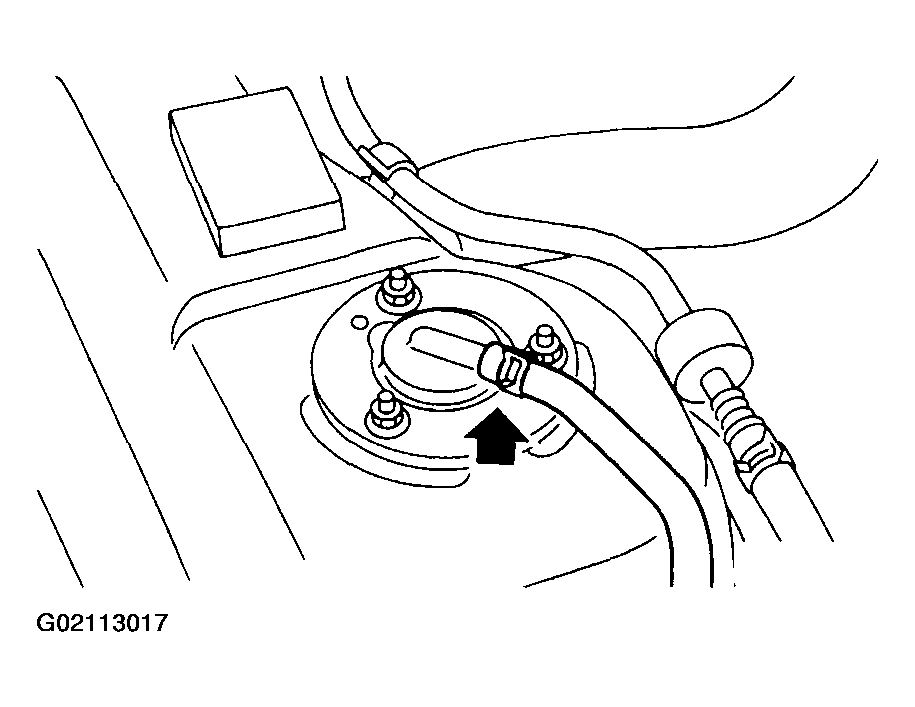

    Fig 1: Disconnecting Evaporation Hose From Fuel Cut Valve
    G02113017
  3. Remove bolts which install fuel cut valve.
