Fuel Filler Pipe: Disassembly

  1. Disconnect evaporation hose (M) and (N) from evaporation pipe assembly.

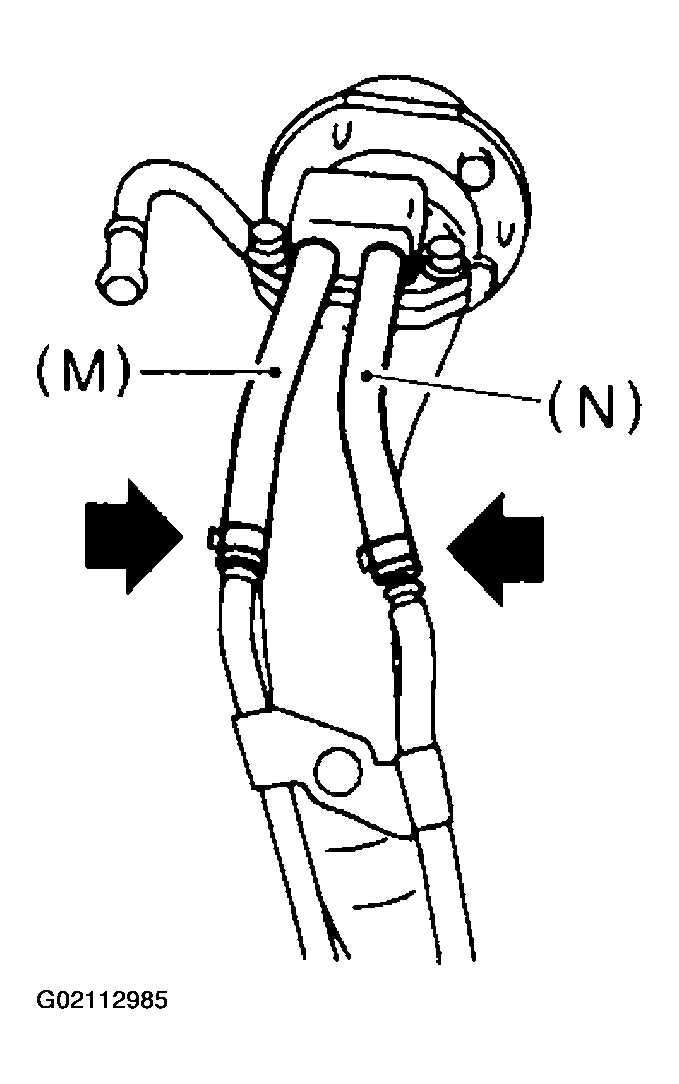

    Fig 1: Disconnecting Evaporation Hose & From Evaporation Pipe Assembly
    G02112985
  2. Remove shut valve from fuel filler pipe.

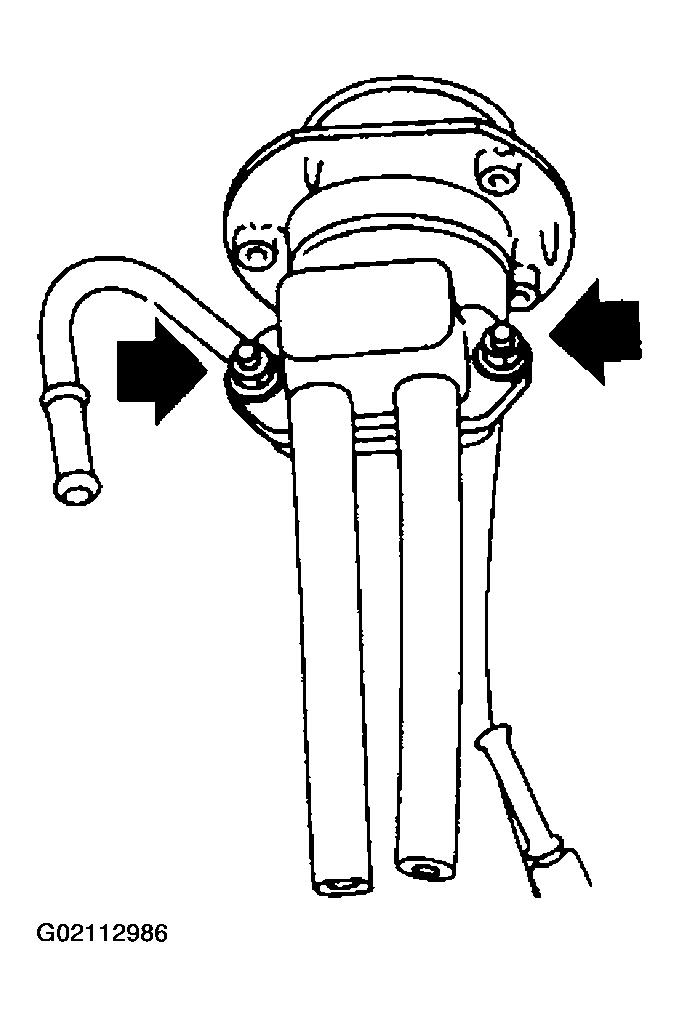

    Fig 2: Removing Shut Valve From Fuel Filler Pipe
    G02112986
  3. Remove nut which holds evaporation pipe assembly on fuel filler pipe.
    Fig 3: Removing Nut Holding Evaporation Pipe Assembly
    G02112987
