Fuel Level Sensor: Installation

Install in the reverse order of removal.

WARNING:
  • Ground cable must be connected.
  • Spark may occur and ignite if fuel is nearby.

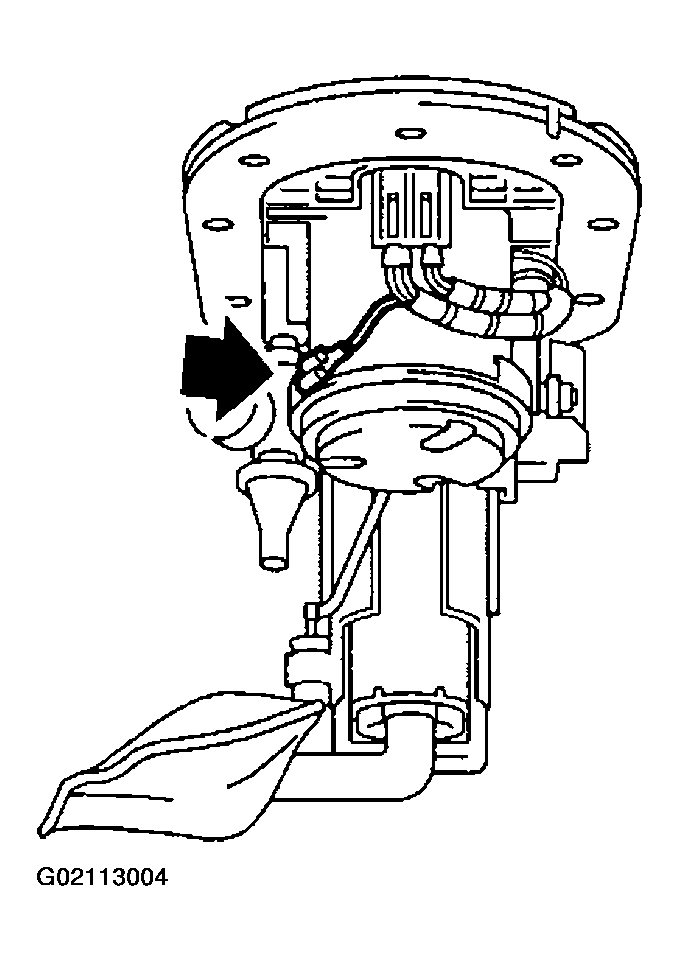

    Fig 1: Connecting Ground Cable
    G02113004
