Fuel Pump Relay: Removal

  1. Disconnect battery ground cable.

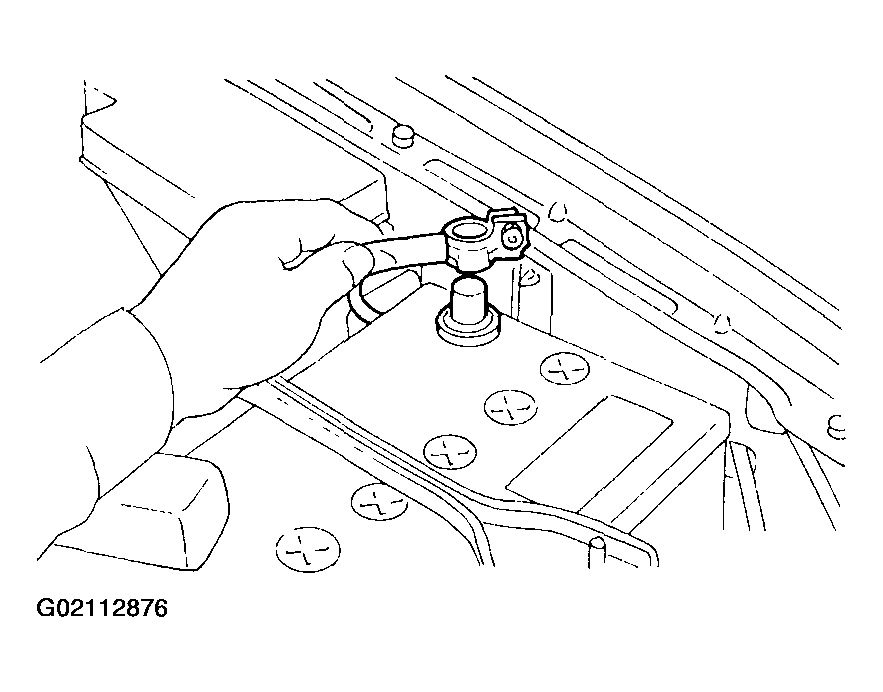

    Fig 1: Disconnecting Battery Ground Cable
    G02112876
  2. Remove lower cover. See REMOVAL , Instrument Panel Assembly.
  3. Disconnect connector from fuel pump relay.

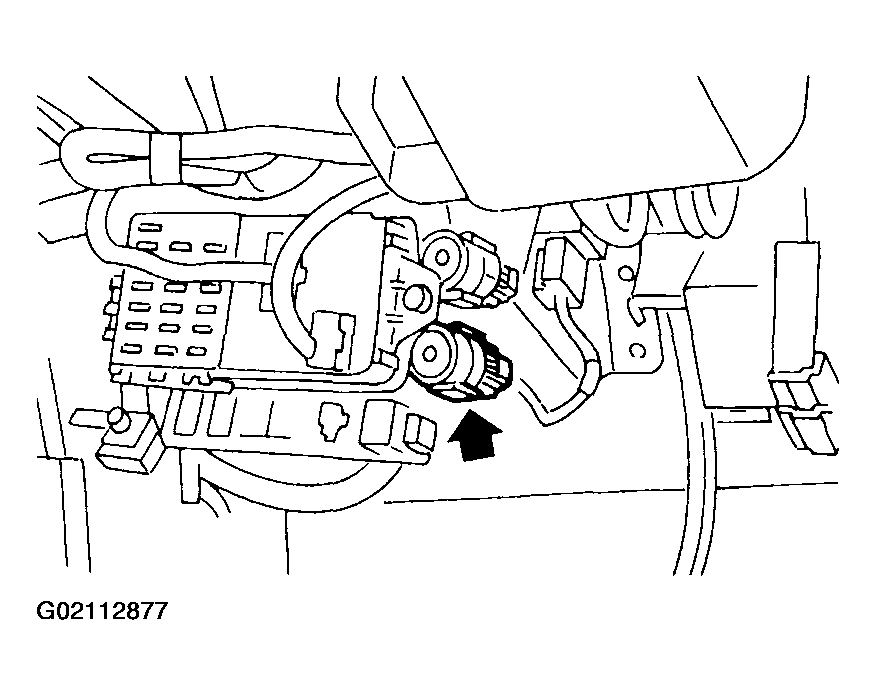

    Fig 2: Disconnecting Connector From Fuel Pump Relay
    G02112877
  4. Remove fuel pump relay from mounting bracket.
