Fuel Pump: Disassembly

  1. Remove fuel pump and pump holder.
    NOTE: When disassembling pump holder, be careful as it is installed with two pawls.

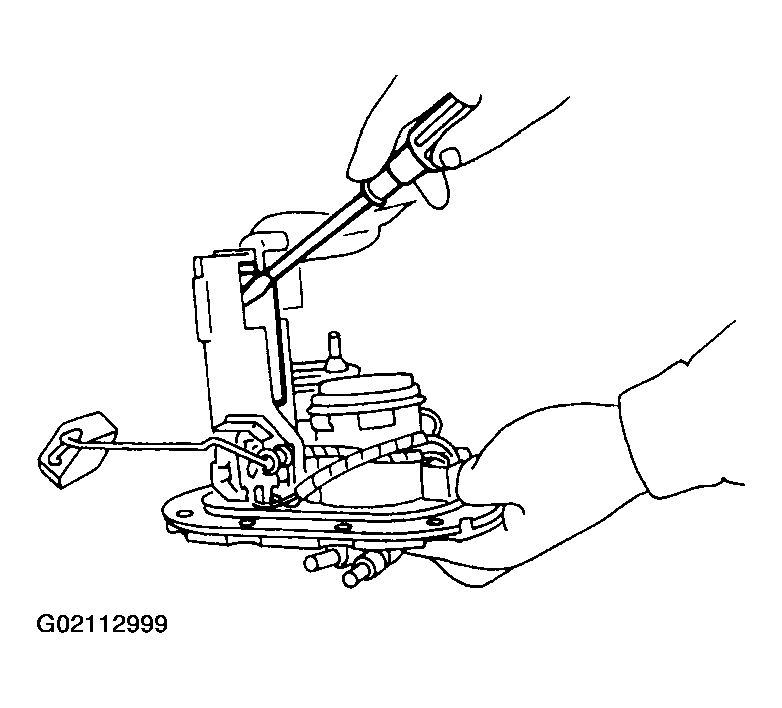

    Fig 1: Removing Fuel Pump & Pump Holder
    G02112999
  2. Disconnect connector from fuel pump.

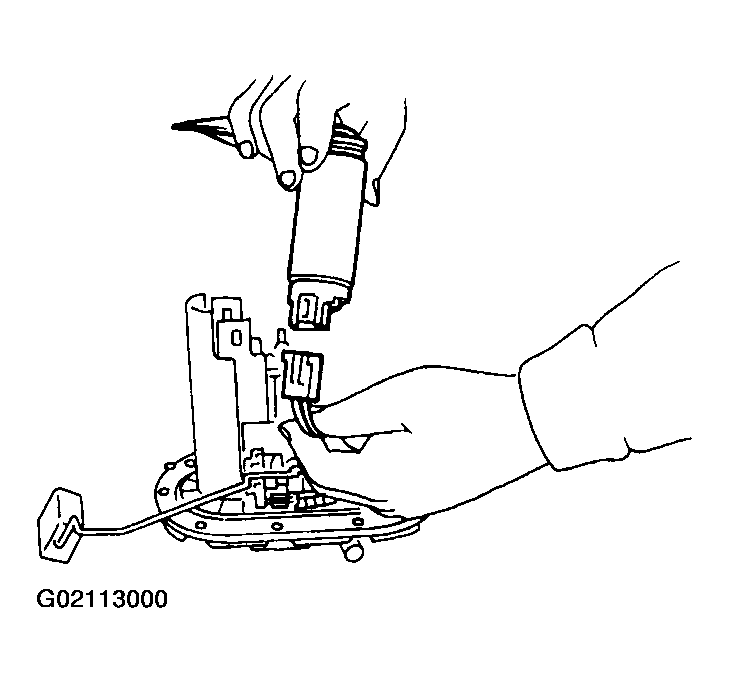

    Fig 2: Disconnecting Connector From Fuel Pump
    G02113000
