Fuel Pump: Installation

Install in the reverse order of removal. Do the following:

1. Always use new gaskets.
2. Ensure sealing portion is free from fuel or foreign particles before installation.
3. Tighten nuts in alphabetical sequence shown in figure to specified torque.
   1. Tightening torque:  5.9 N.m (0.6 kgf-m, 4.3 ft-lb)

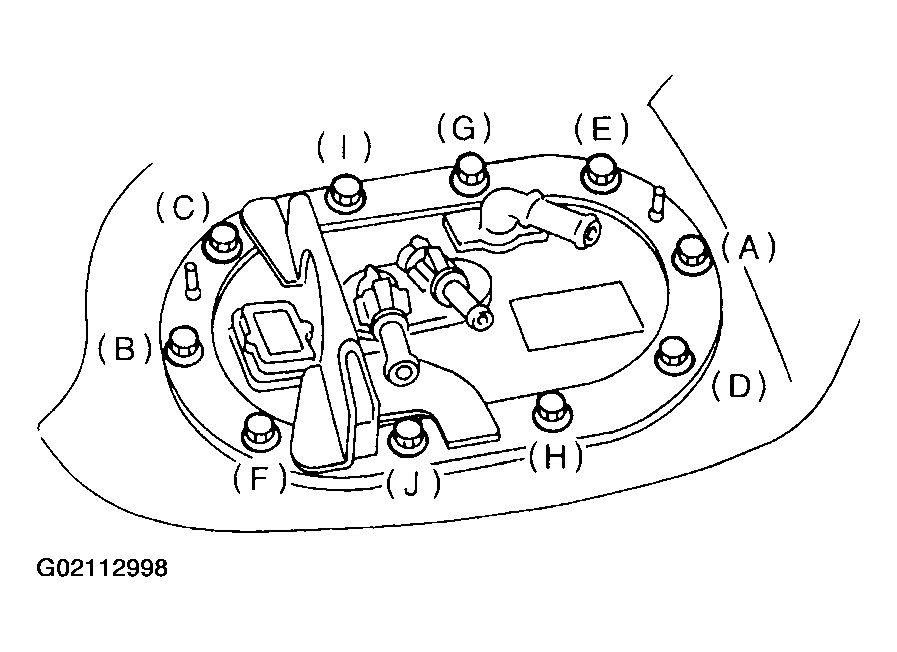

   Fig 1: Tightening Nuts In Alphabetical Sequence
