Fuel Pump: Removal

WARNING:

NOTE: Fuel pump assembly consists of fuel pump and fuel level sensor.

Release fuel pressure. See RELEASING OF FUEL PRESSURE , OPERATION, Fuel.
Open fuel filler flap lid and remove fuel filler cap.

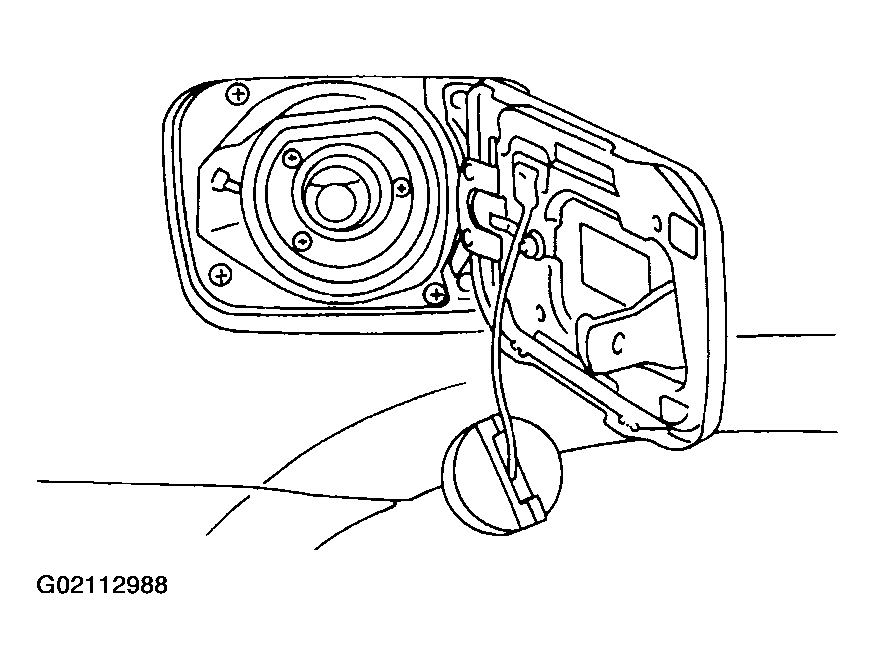

Fig 1: Removing Fuel Filler Cap
Disconnect battery ground cable.

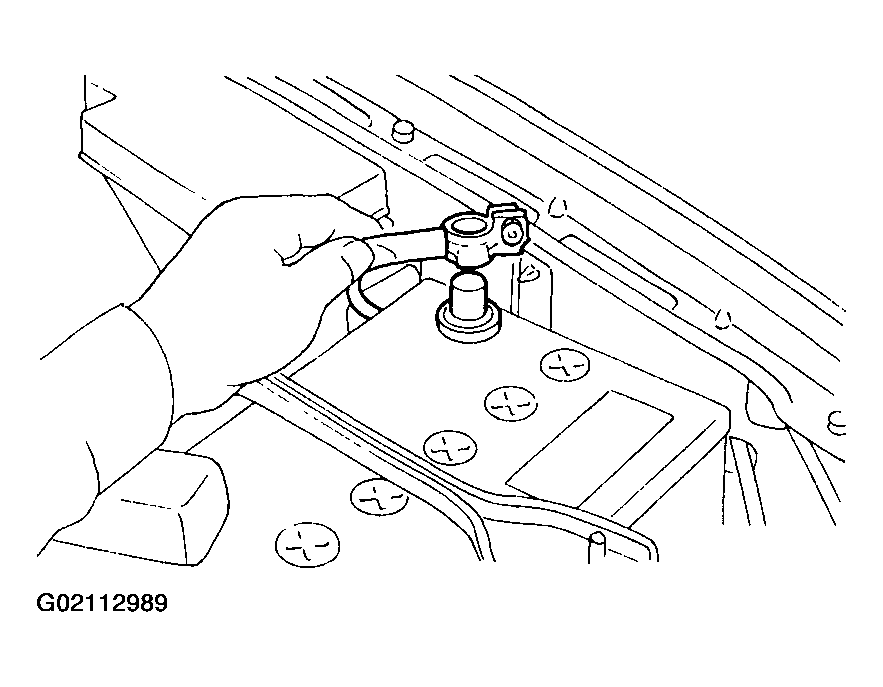

Fig 2: Disconnecting Battery Ground Cable
Lift-up the vehicle.
Remove front side fuel tank cover.

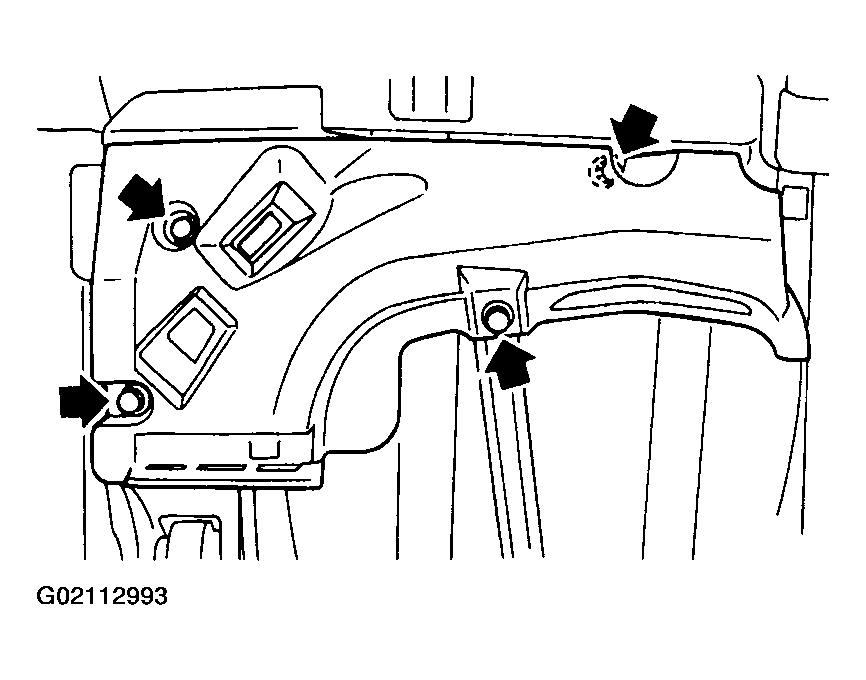

Fig 3: Removing Front Side Fuel Tank Cover

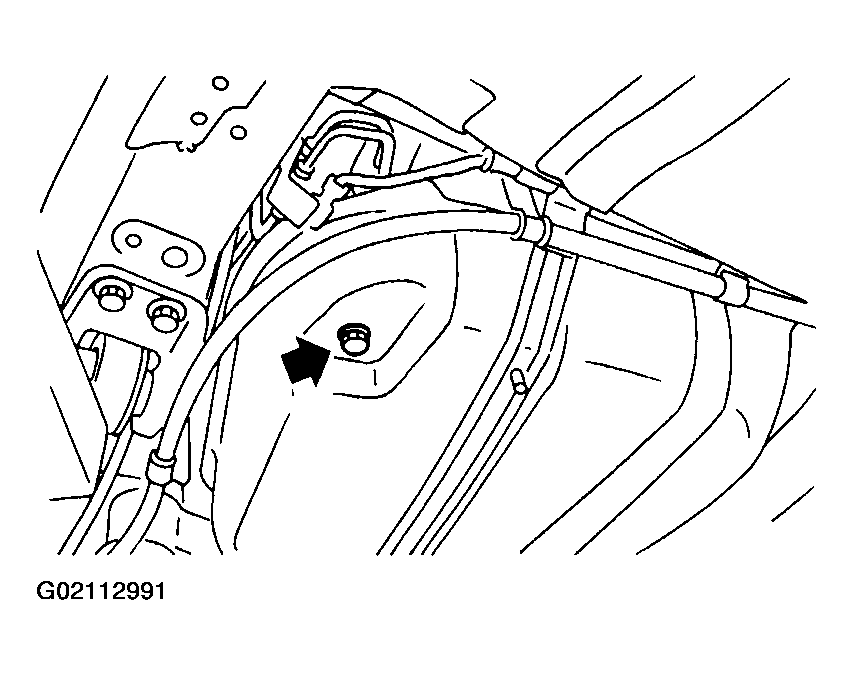

Drain fuel from fuel tank. Set a container under the vehicle and remove drain plug from fuel tank.

Fig 4: Draining Fuel From Fuel Tank
Tighten fuel drain plug and install front right side fuel tank cover.
1. Tightening torque: 26 N.m (2.65 kgf-m, 19.2 ft-lb)
Fig 5: Tightening Fuel Drain Plug
1. Tightening torque: 18 N.m (1.8 kgf-m, 13.0 ft-lb)

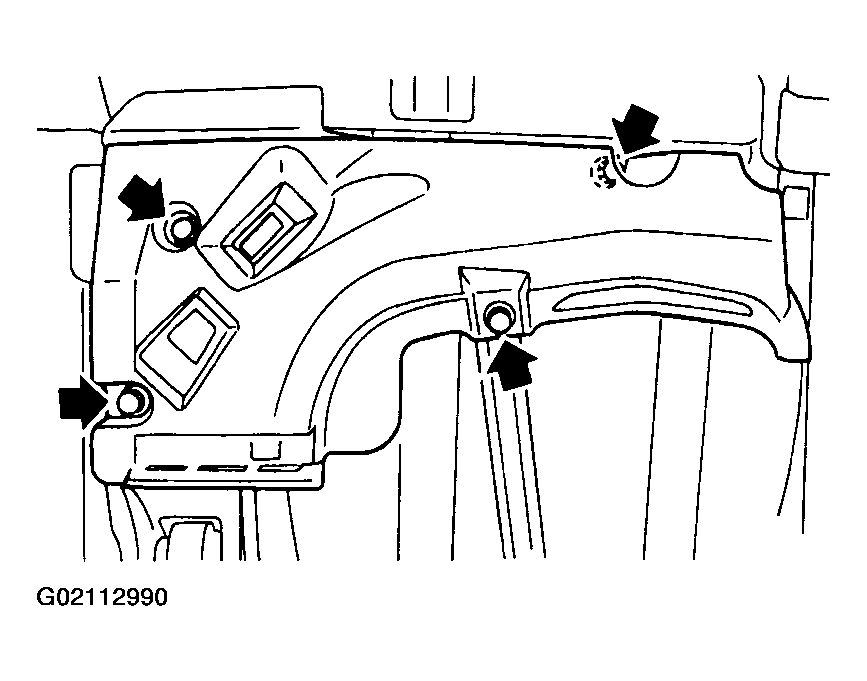

Fig 6: Installing Front Right Side Fuel Tank Cover
Raise rear seat and turn floor mat up.

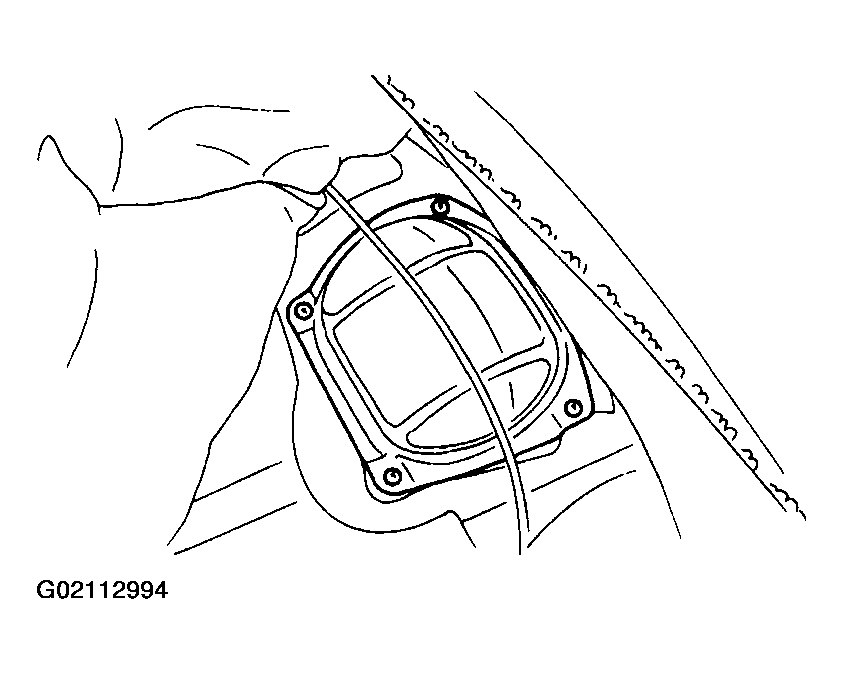

Remove access hole lid.

Fig 7: Removing Access Hole Lid

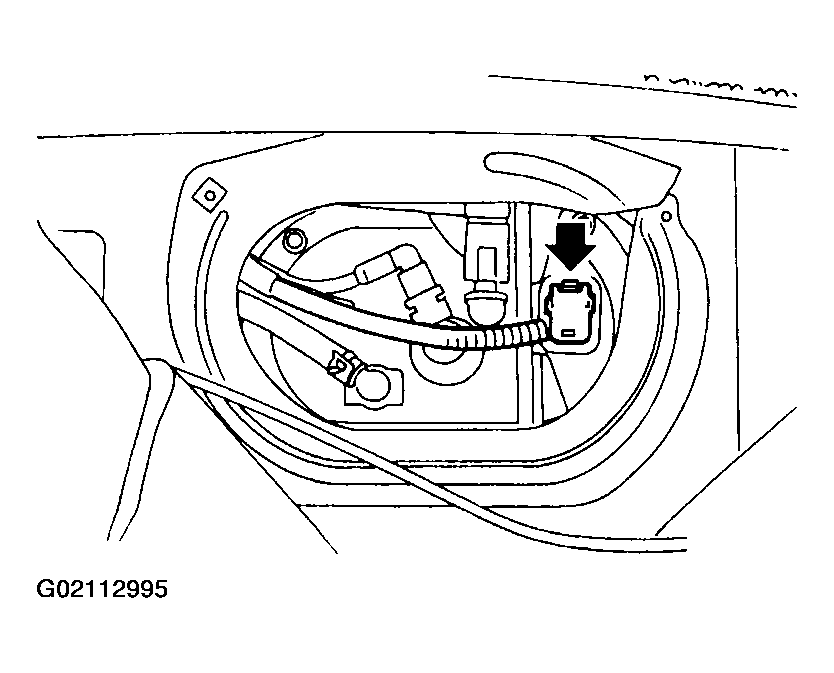

Disconnect connector from fuel pump.

Fig 8: Disconnecting Connector From Fuel Pump

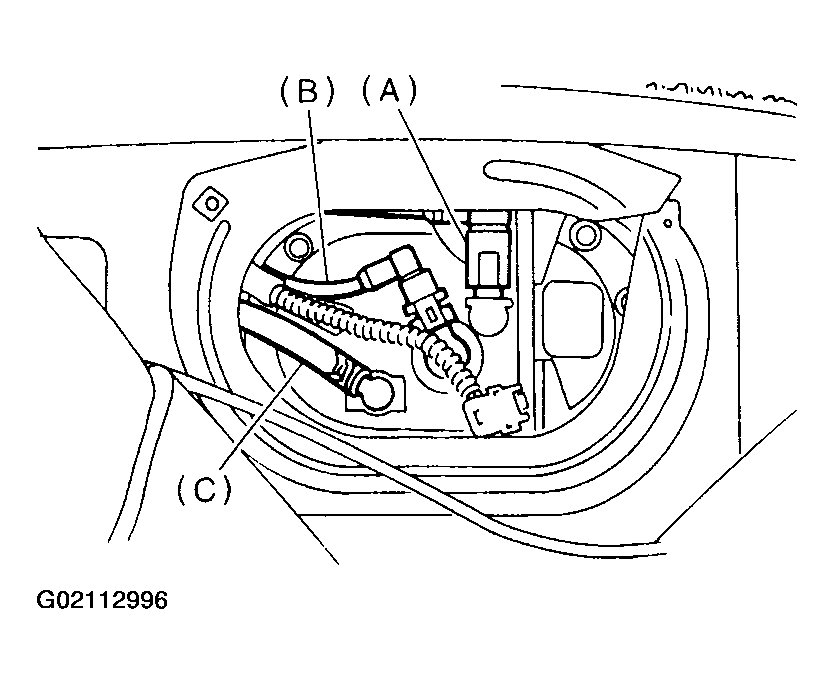

Move clips and then disconnect jet pump hose (C).
Disconnect quick connector and then disconnect fuel delivery hose (A) and return hose (B). See REMOVAL , Fuel Delivery, Return and Evaporation Lines.

Fig 9: Disconnecting Fuel Delivery Hose & Return Hose

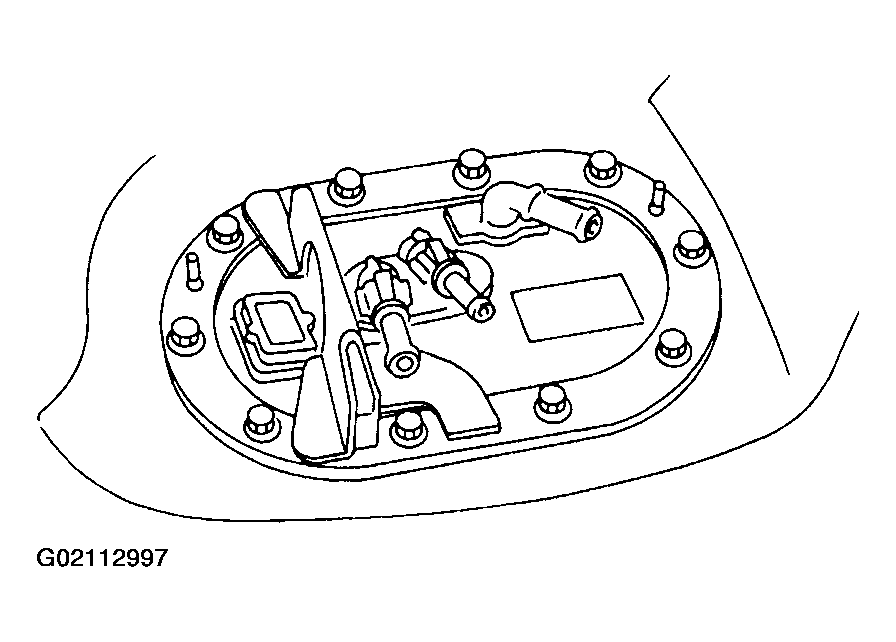

Remove nuts which install fuel pump assembly onto fuel tank.

Fig 10: Removing Nuts Installing Fuel Pump Assembly
Take off fuel pump assembly from fuel tank.
