Releasing Of Fuel Pressure

WARNING:
  • Place "NO FIRE" signs near the working area.
  • Be careful not to spill fuel on the floor.
  1. Disconnect connector from fuel pump relay.

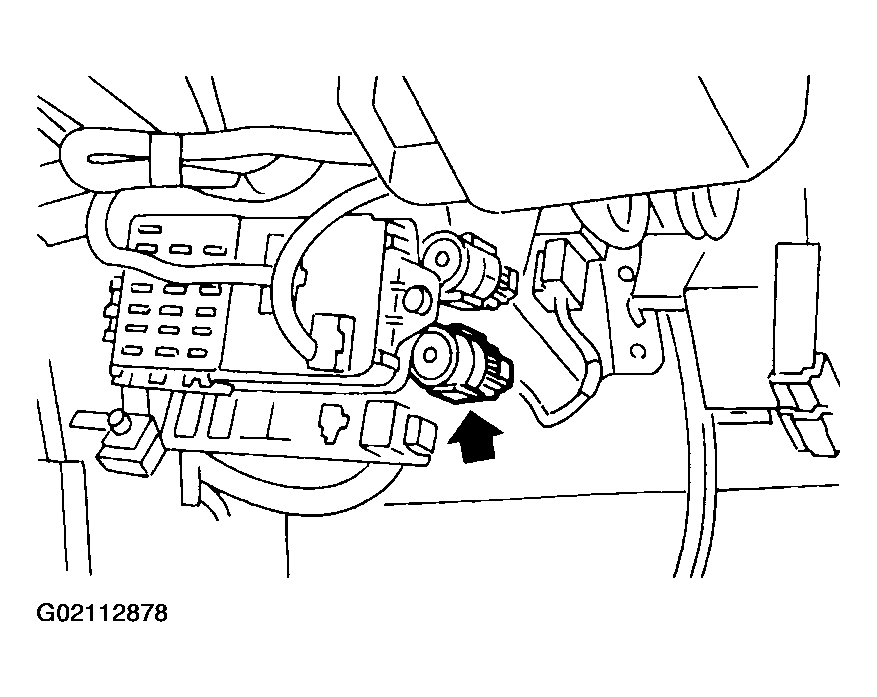

    Fig 1: Disconnecting Connector From Fuel Pump Relay
    G02112878
  2. Start the engine and run it until it stalls.
  3. After the engine stalls, crank it for five more seconds.
  4. Turn ignition switch to OFF.
