Fuel Tank

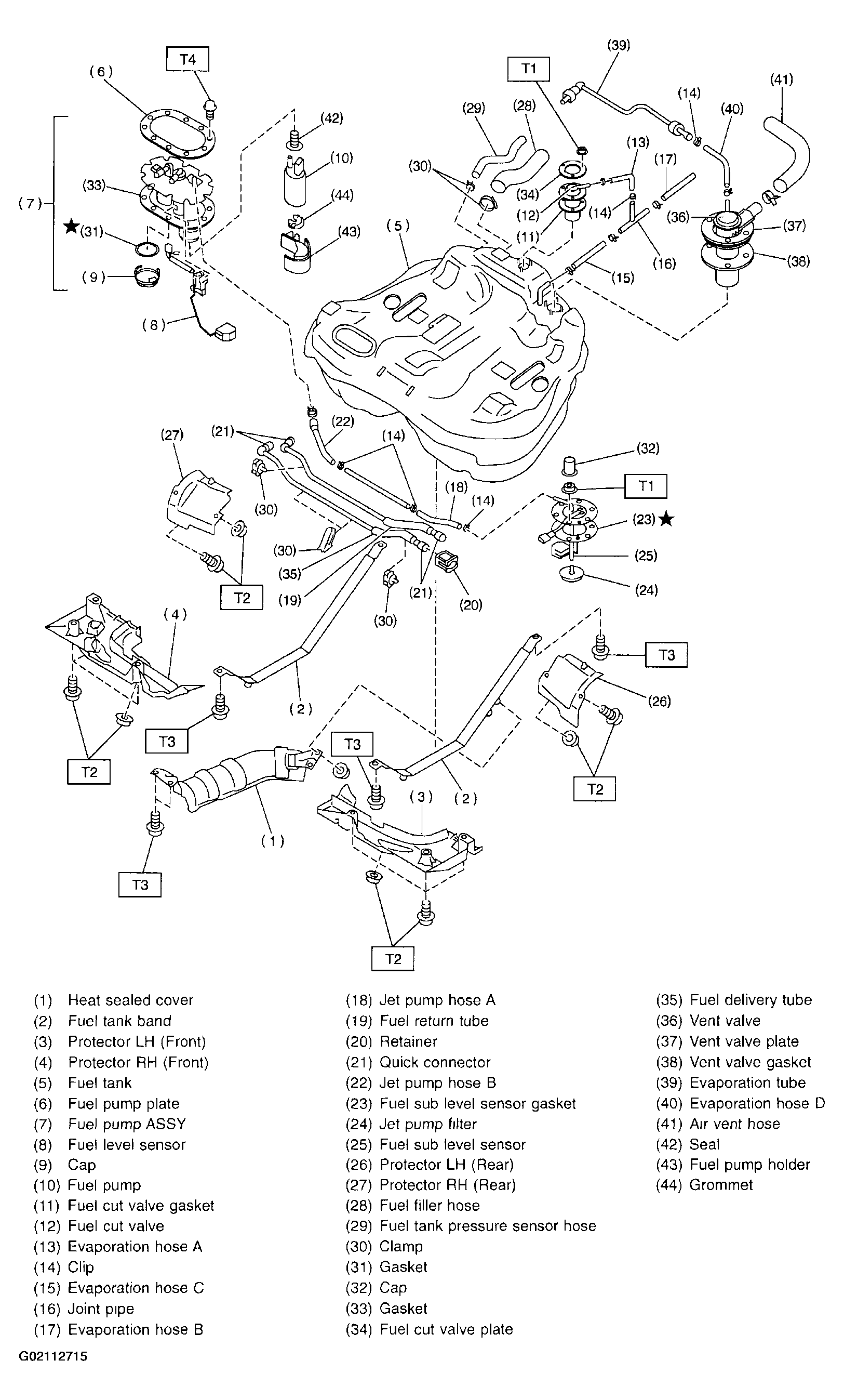

Fig 1: Exploded View Of Fuel Tank & Components
G02112715

Tightening torque: N-m (kgf-m, ft-lb)

  1. T1:  4.4 (0. 45, 3.3)
  2. T2:  18 (1.8, 13.0)
  3. T3:  33 (3.4, 25)
  4. T4:  5.9 (0.6, 4.3)
