Throttle Body: Removal

Disconnect battery ground cable.

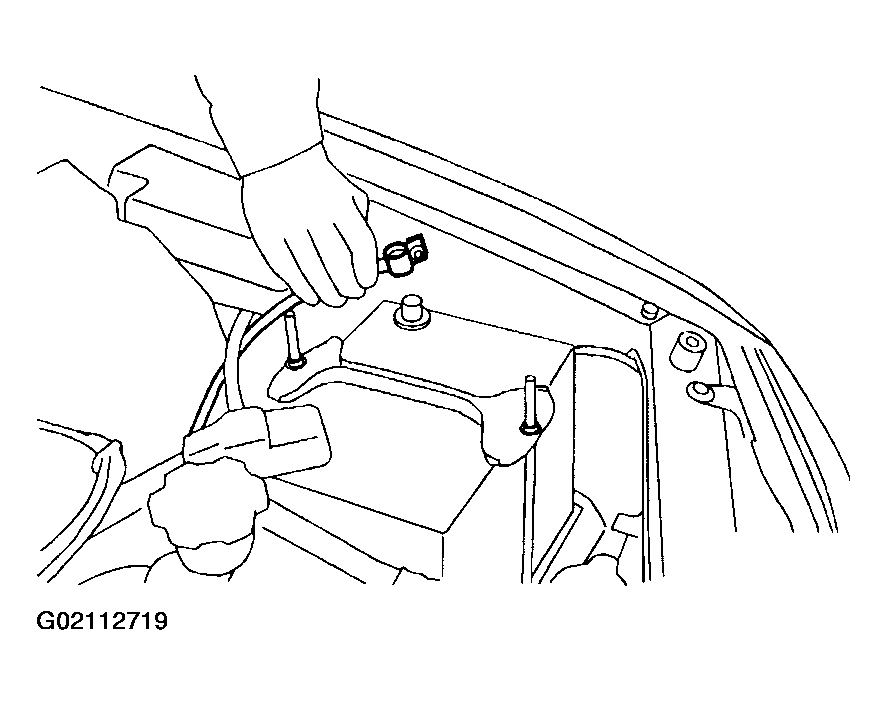

Fig 1: Disconnecting Battery Ground Cable
Remove air intake chamber. See REMOVAL , Air Intake Chambers.
Disconnect accelerator cable (A).
Disconnect cruise control cable (B). (With cruise control model)

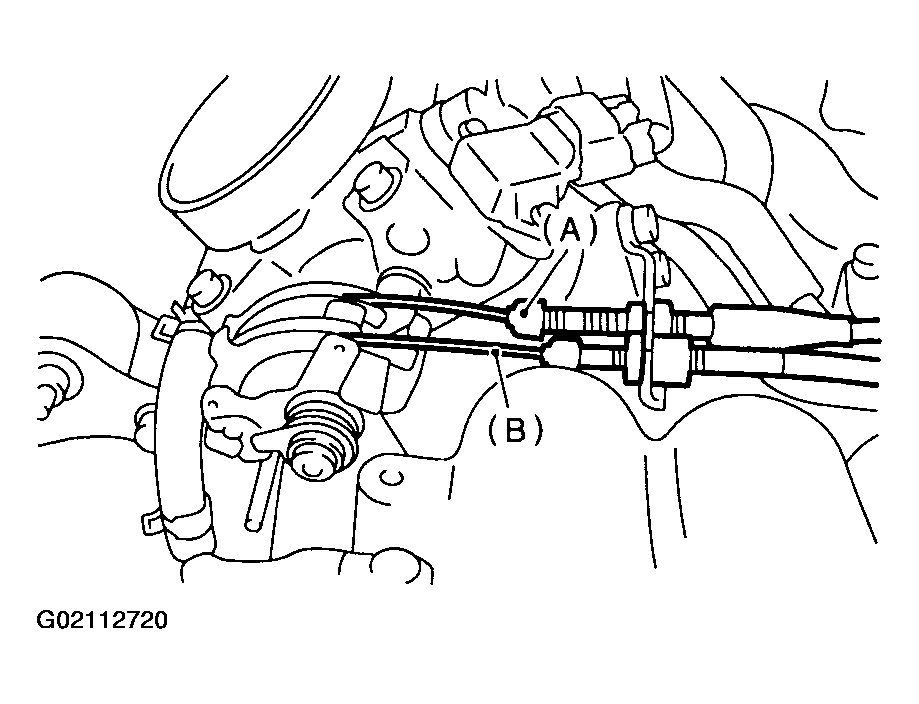

Fig 2: Disconnecting Accelerator Cable & Cruise Control Cable (With Cruise Control Model)
Disconnect connectors from intake manifold pressure sensor (A) and idle air control solenoid valve (B).
Disconnect air by-pass hose (C) from idle air control solenoid valve.

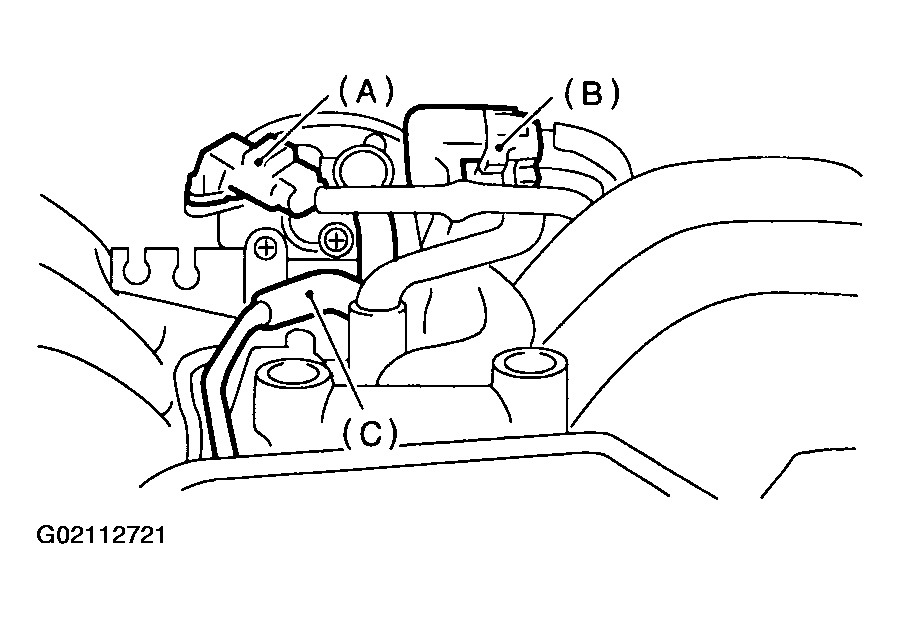

Fig 3: Disconnecting Connectors From Intake Manifold Pressure Sensor
Disconnect throttle position sensor connector.

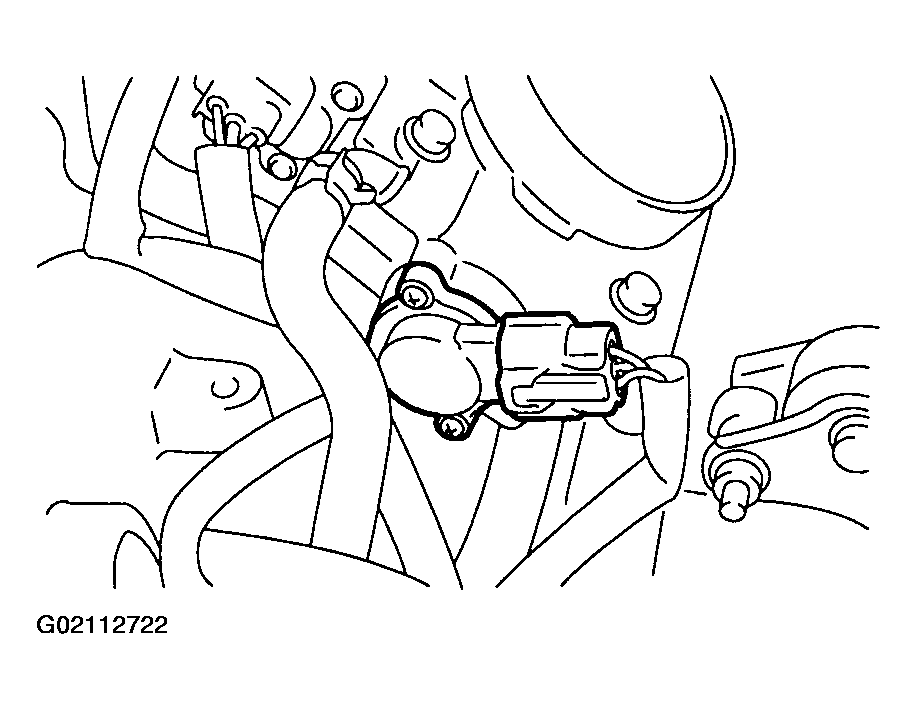

Fig 4: Disconnecting Throttle Position Sensor Connector
Disconnect engine coolant hoses from throttle body.
Remove bolts which secure throttle body to intake manifold.

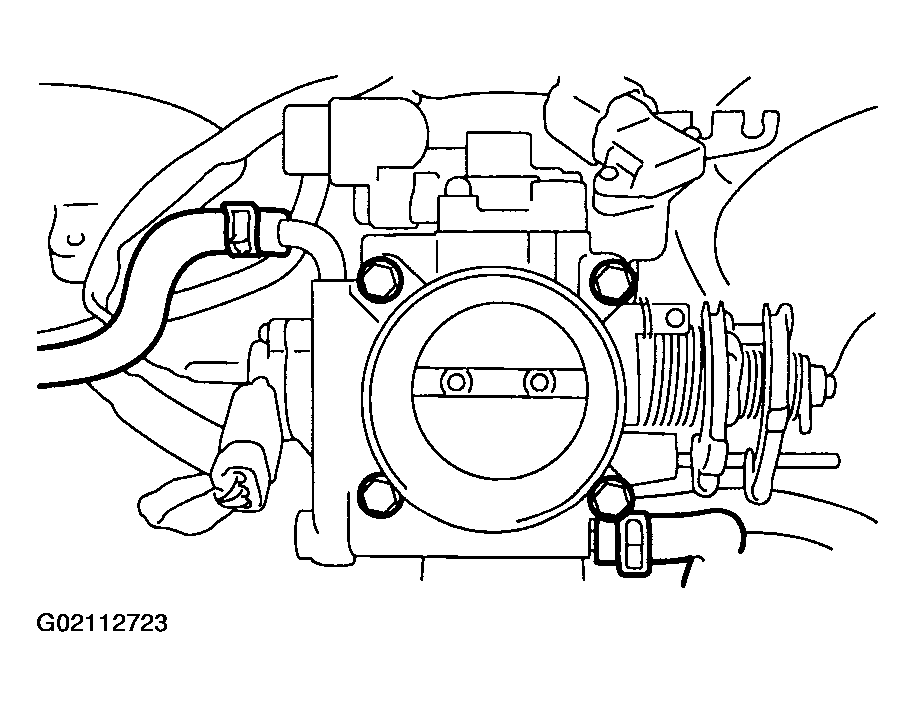

Fig 5: Removing Bolts Securing Throttle Body To Intake Manifold
