Electrical Specification

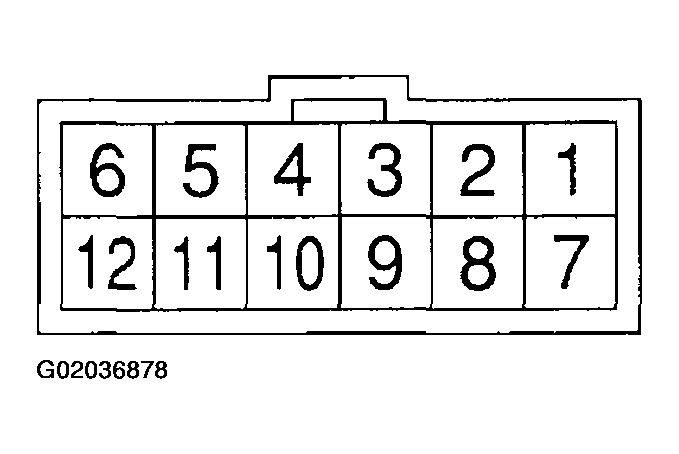

Fig 1: Identifying Electrical Socket

G02036878

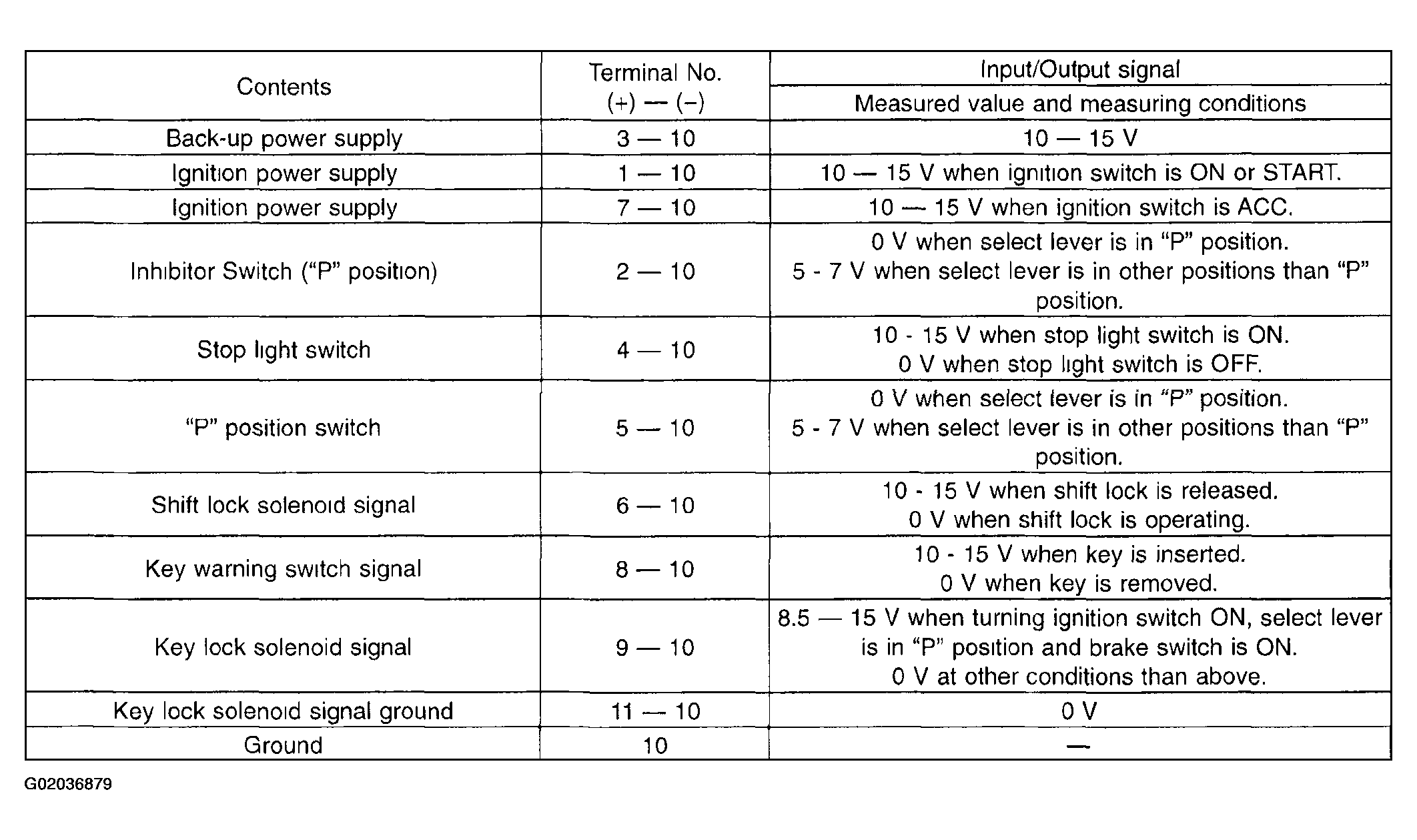

Fig 2: Electrical Specifications Chart

G02036879
