Keyless Entry Control Module: Removal

  1. Disconnect battery ground cable.
  2. Remove instrument panel lower cover. Refer to REMOVAL , Instrument Panel Assembly.
  3. Remove nut, then remove keyless entry control module (A) while disconnecting connector.

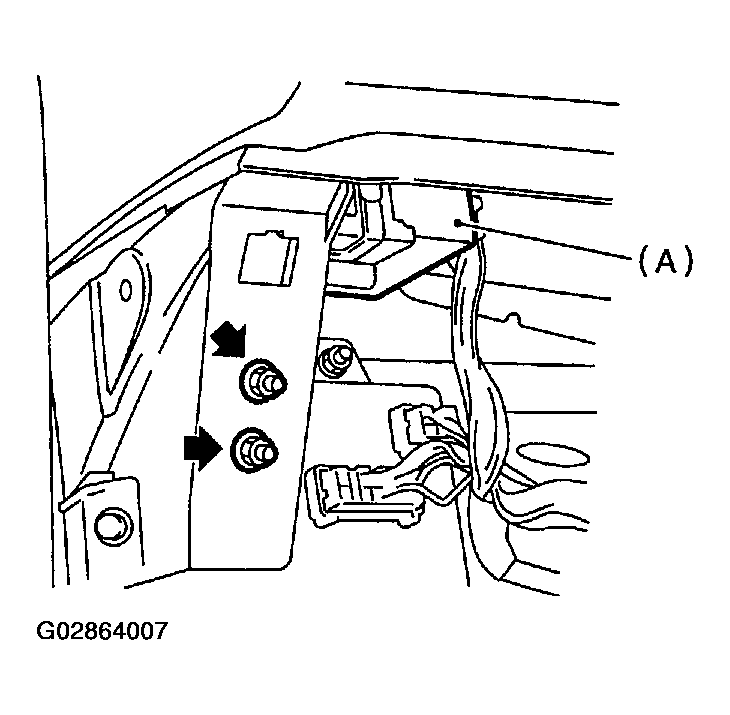

    Fig 1: Removing Keyless Entry Control Module
    G02864007Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect keyless entry control module.
