Impact Sensitivity

NOTE: Before adjustment, make sure the security control module has been securely installed on the bracket.
  1. Remove security control module. Refer to REMOVAL  , Security Control Module.
  2. Adjust the sensitivity adjust screw in security control module.
    NOTE: After adjusting, be sure to plug the adjust screw hole.

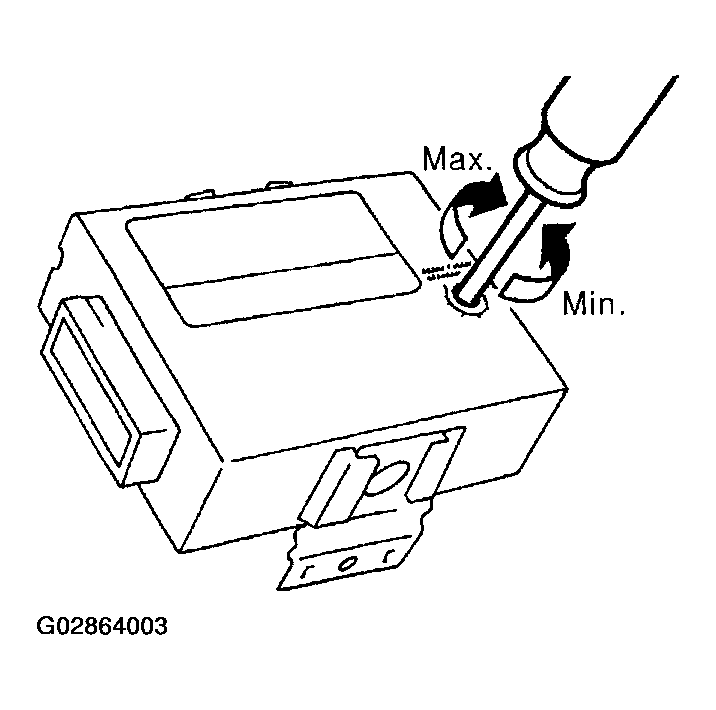

    Fig 1: Adjusting Sensitivity Screw
    G02864003Courtesy of SUBARU OF AMERICA, INC.
  3. Install security control module.
  4. Perform impact sensitivity test.
