Security Control Module: Removal

  1. Disconnect battery ground cable.
  2. Remove shift knob (MT model).
  3. Remove console cover (A) and front cover (B) while disconnecting connector.

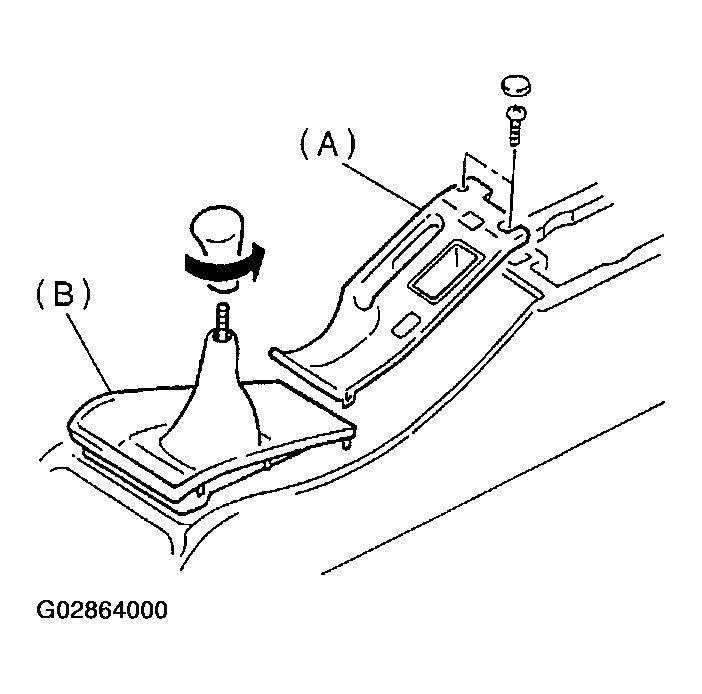

    Fig 1: Removing Console Cover & Front Cover
    G02864000Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect connector from security control module.
  5. Remove bolt (A) and loosen bolt (B).
    NOTE: Loosen bolt (B) without completely removing it.

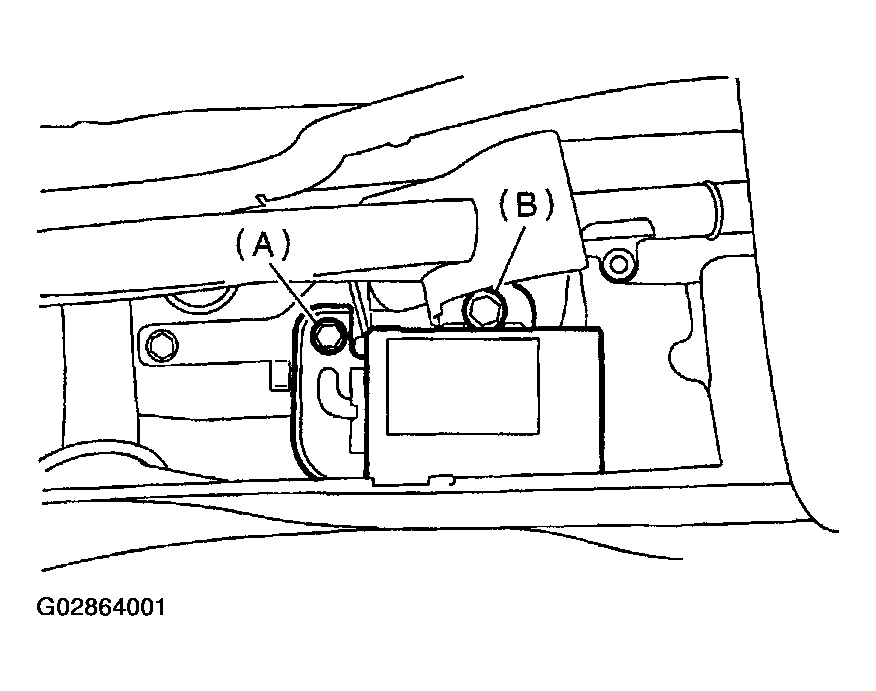

    Fig 2: Removing Bolt
    G02864001Courtesy of SUBARU OF AMERICA, INC.
  6. Remove security control module.
