HVAC System - Mechanism & Function: Compressor: Function: Compression

Further rotation of the rotor after suction makes the volume of each cylinder chamber smaller, thus compression occurs.

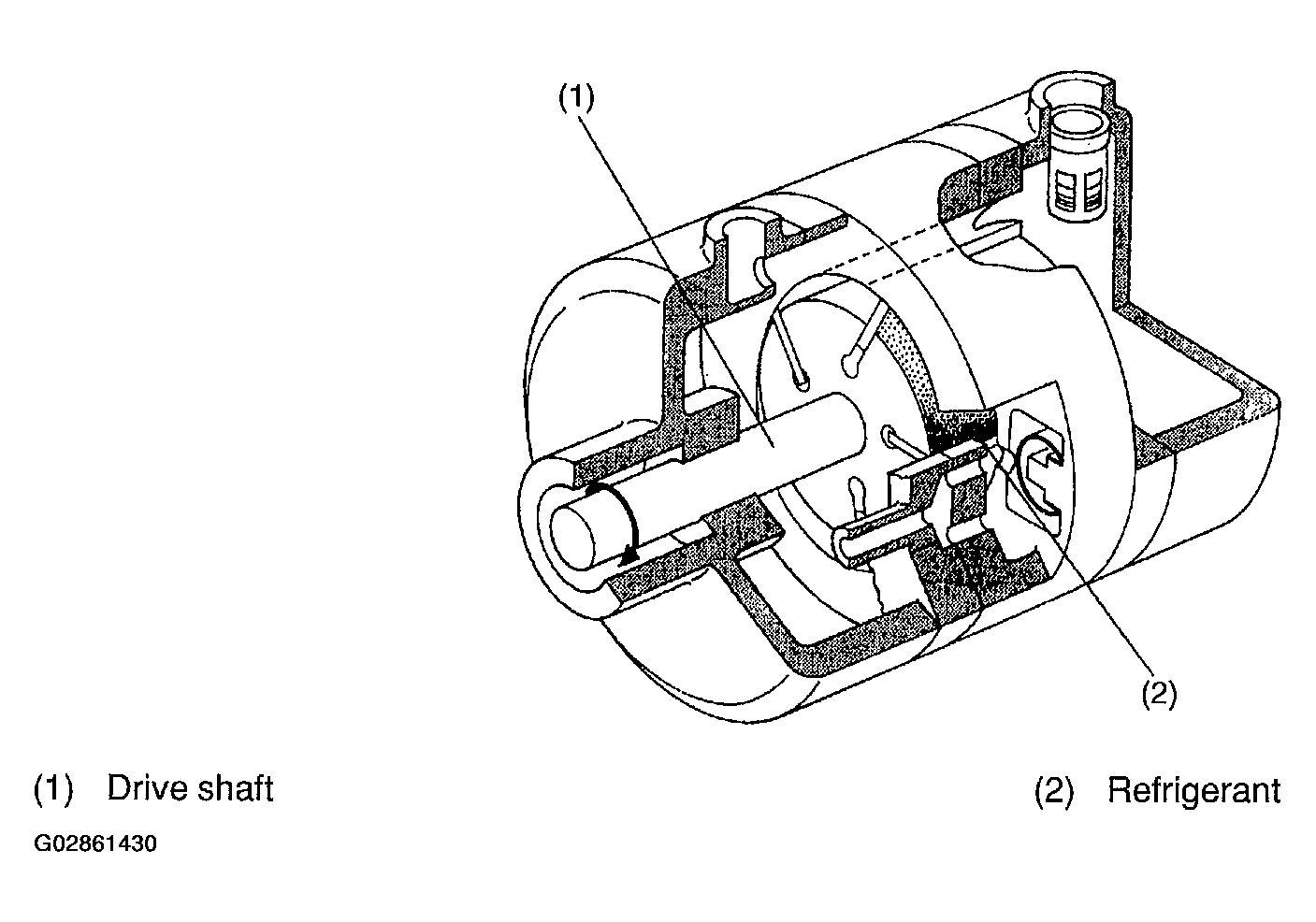

Fig 1: Identifying Compressor Function (Compression)

Courtesy of SUBARU OF AMERICA, INC.
