Security Control Module (Impact Sensitivity)

NOTE: Before adjustment, ensure security control module has been securely installed on the bracket.

Remove security control module. See SECURITY CONTROL MODULE under REMOVAL & INSTALLATION. Adjust the sensitivity adjusting screw in the security control module. Turn clockwise for maximum sensitivity or counterclockwise for minimum sensitivity. See Fig 1 . Be sure to plug adjusting screw hole. Install security control module. Perform impact sensitivity test. See SECURITY CONTROL MODULE under COMPONENT TESTS.

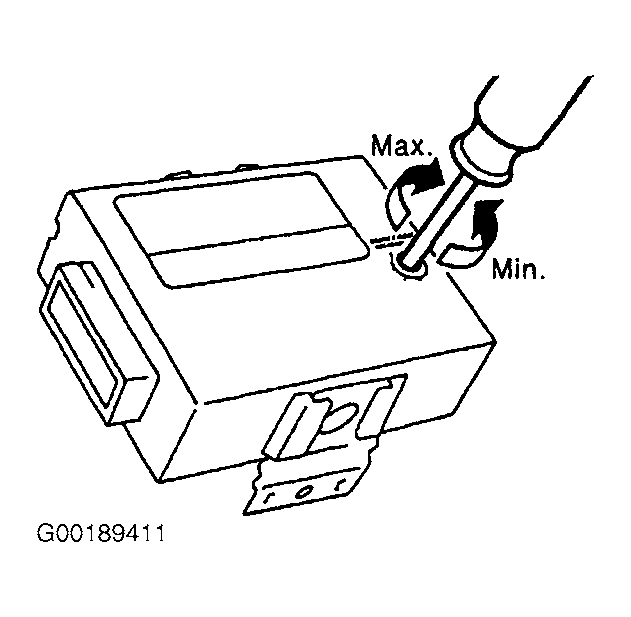

Fig 1: Adjusting Security Control Module's Impact Sensitivity

Courtesy of SUBARU OF AMERICA, INC.
