Security Control Module

Disconnect battery ground cable.
Remove shift knob (MT model).
Remove console cover (A) and front cover (B) while disconnecting connector. See Fig 1 .
Disconnect connector from security control module.
Remove bolt (A) and loosen bolt (B) without completely removing it. See Fig 2 .
Remove security control module.
Install security control module in reverse order of removal procedure.
NOTE: Tighten bolts securely so that they do not come loose.

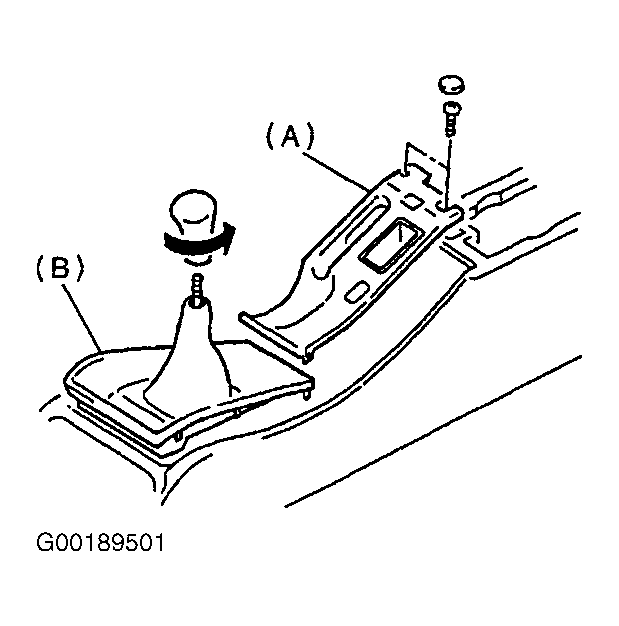

Fig 1: Removing Security Control Module (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

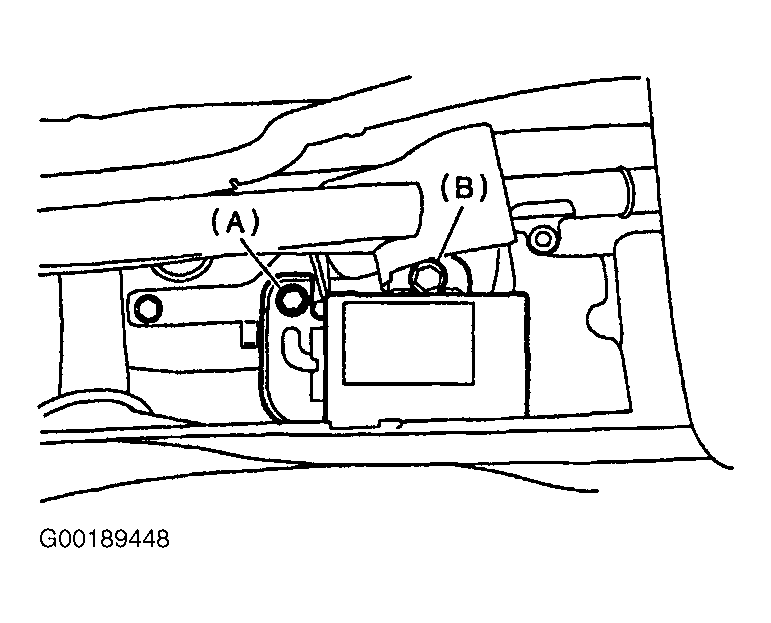

Fig 2: Removing Security Control Module (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
