Power Window System: Inspection

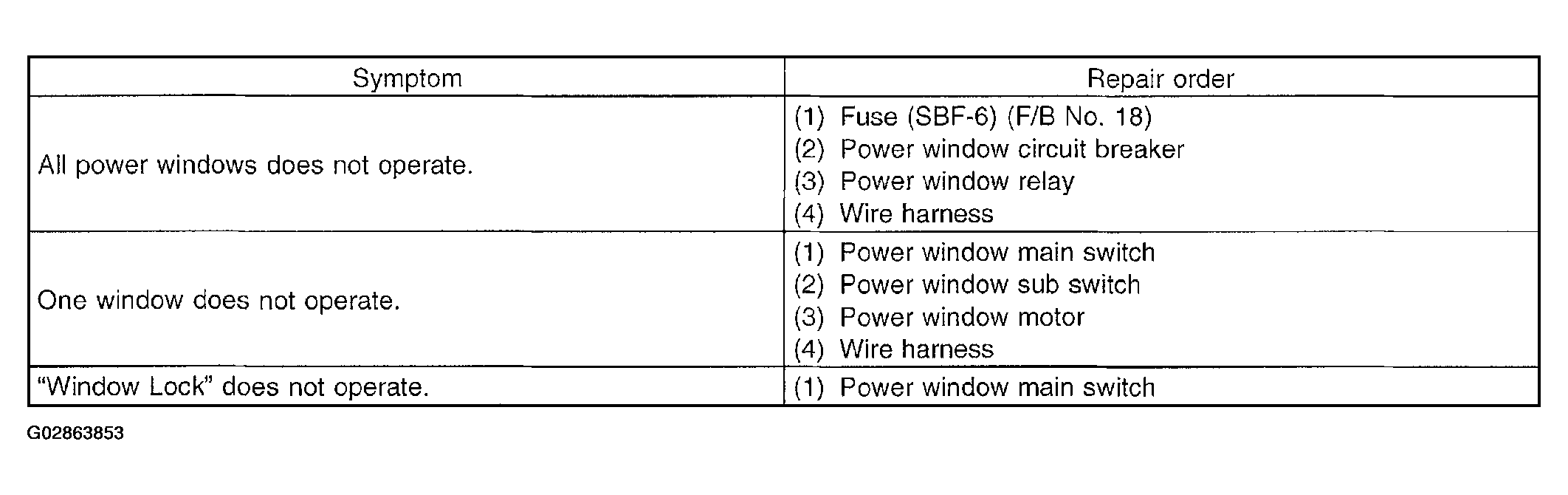

Fig 1: Power Window System Inspection Chart

G02863853

Courtesy of SUBARU OF AMERICA, INC.
