Front Regulator and Motor Assembly: Removal

  1. Remove door trim. Refer to REMOVAL , Front Door Trim.
  2. Remove sealing cover. Refer to REMOVAL , Front Sealing Cover.
  3. Remove door glass. Refer to REMOVAL  , Front Door Glass.
  4. Disconnect electrical connector.
  5. Loosen four bolts and two nuts to pull out regulator assembly.

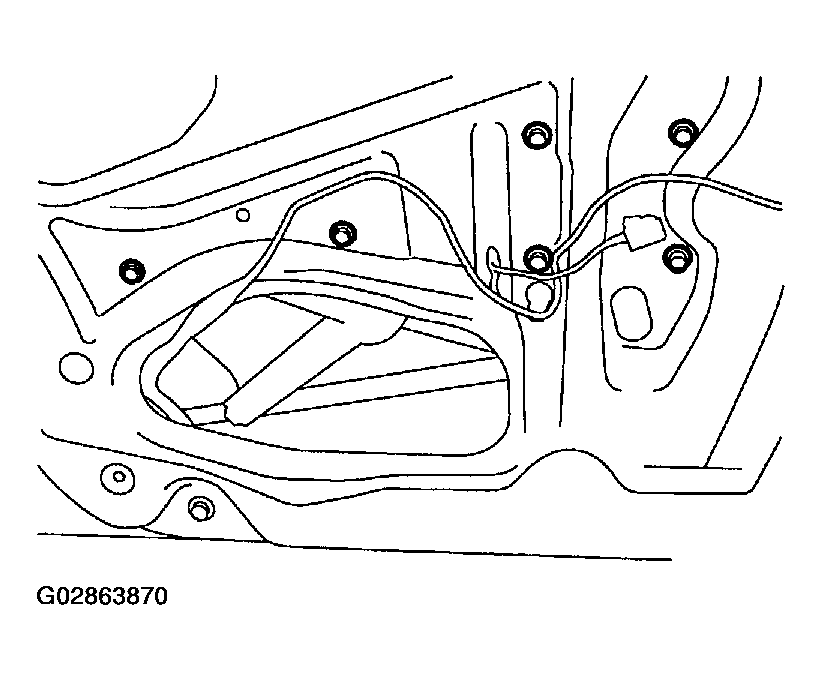

    Fig 1: Removing Bolts/Nuts To Pull Out Regulator Assembly
    G02863870Courtesy of SUBARU OF AMERICA, INC.
  6. Loosen screws to remove motor assembly.

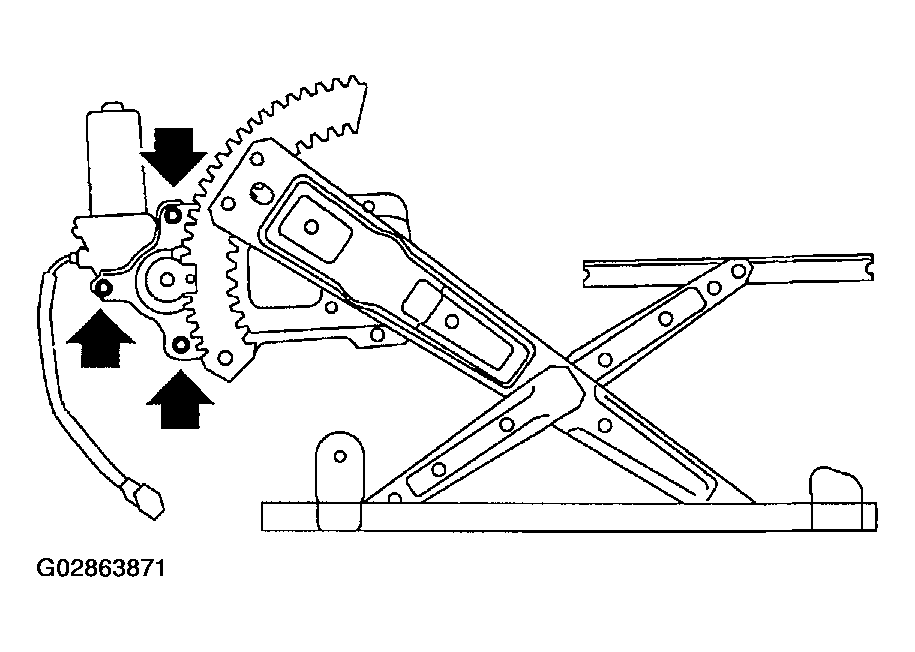

    Fig 2: Removing Motor Assembly Screws
    G02863871Courtesy of SUBARU OF AMERICA, INC.
