Inner Rearview Mirror: Removal

NOTE: The spring cannot be reused. Prepare a new spring before removal.

Turn mirror base 90 degrees clockwise or counterclockwise to remove it.

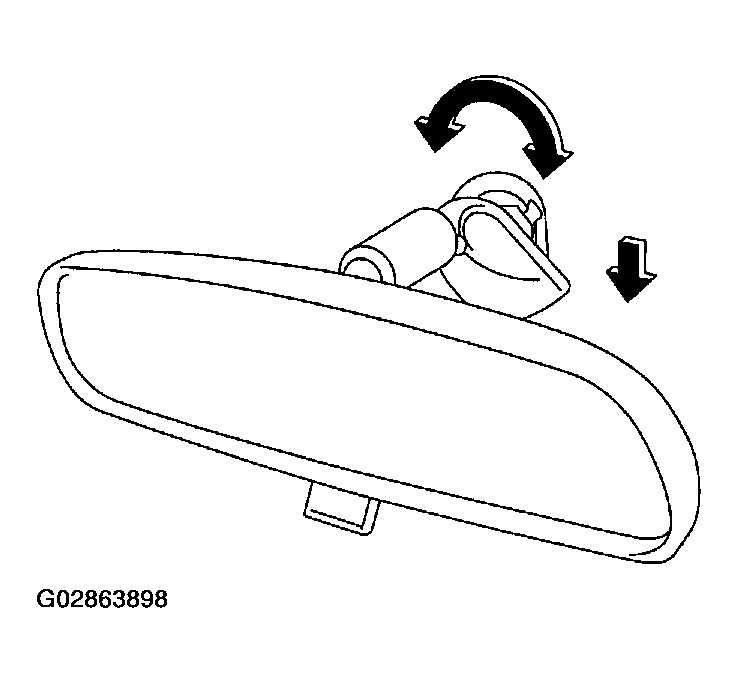

Fig 1: Removing Inner Rearview Mirror Turning 90 Degrees
Courtesy of SUBARU OF AMERICA, INC.
Remove spring from mirror base.

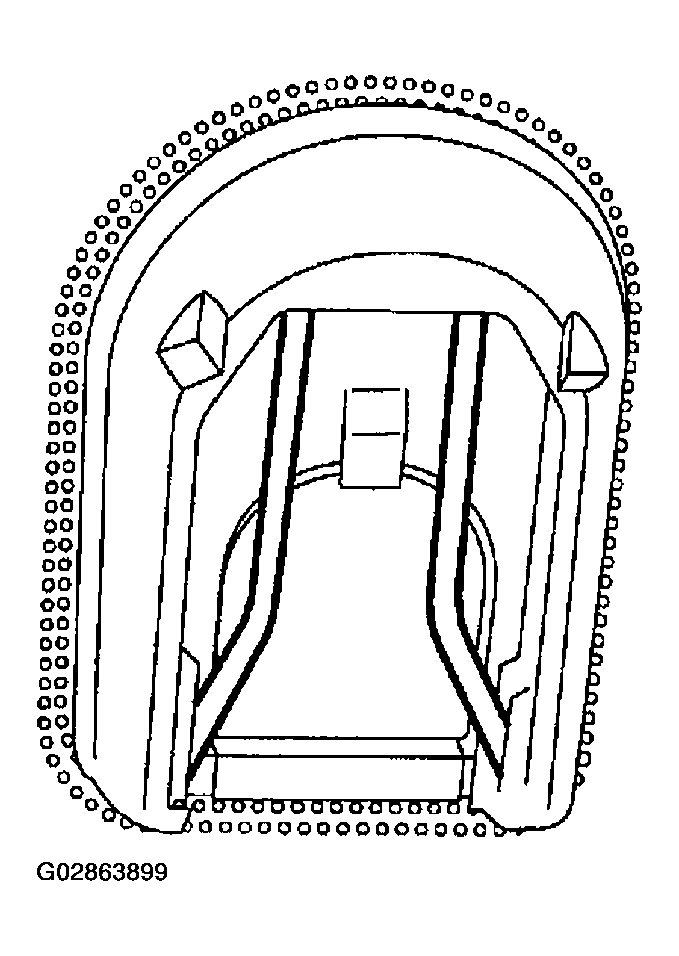

Fig 2: Removing Spring From Mirror Base
Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Be careful not to damage the mirror surface.
