Outer Mirror Assembly: Removal

  1. Remove door trim. Refer to REMOVAL , Front Door Trim.
  2. Pull off sealing cover to disconnect mirror electrical connector.

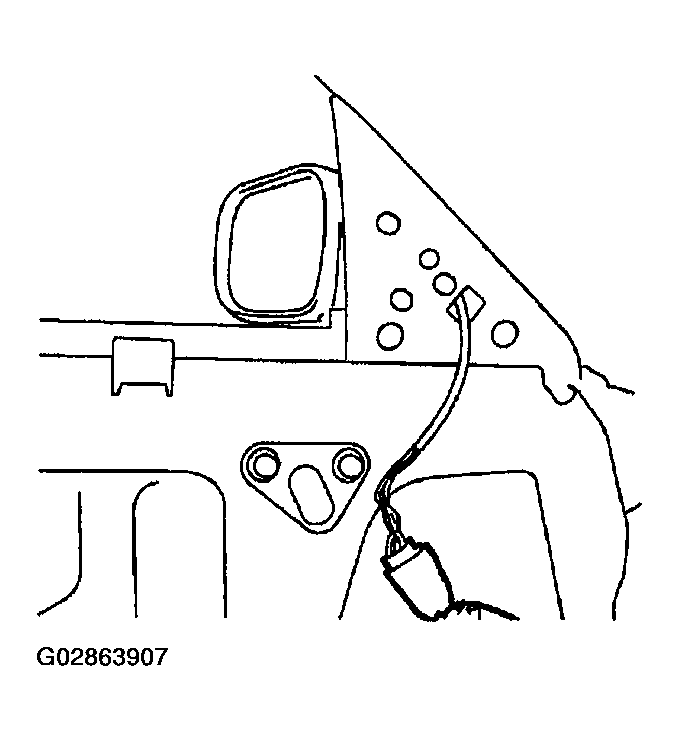

    Fig 1: Disconnecting Mirror Electrical Connector
    G02863907Courtesy of SUBARU OF AMERICA, INC.
  3. Loosen screws to remove mirror assembly.

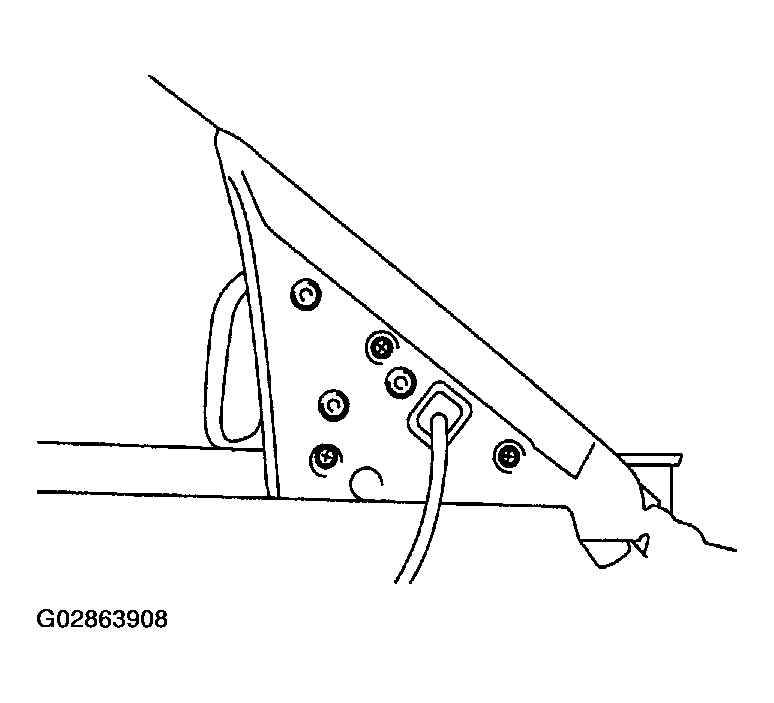

    Fig 2: Removing Mirror Assembly
    G02863908Courtesy of SUBARU OF AMERICA, INC.
