Power Window Control Switch: Removal: Sub-Switch

  1. Remove door trim. Refer to REMOVAL , Rear Door Trim.
  2. Remove screws and sub-switch.

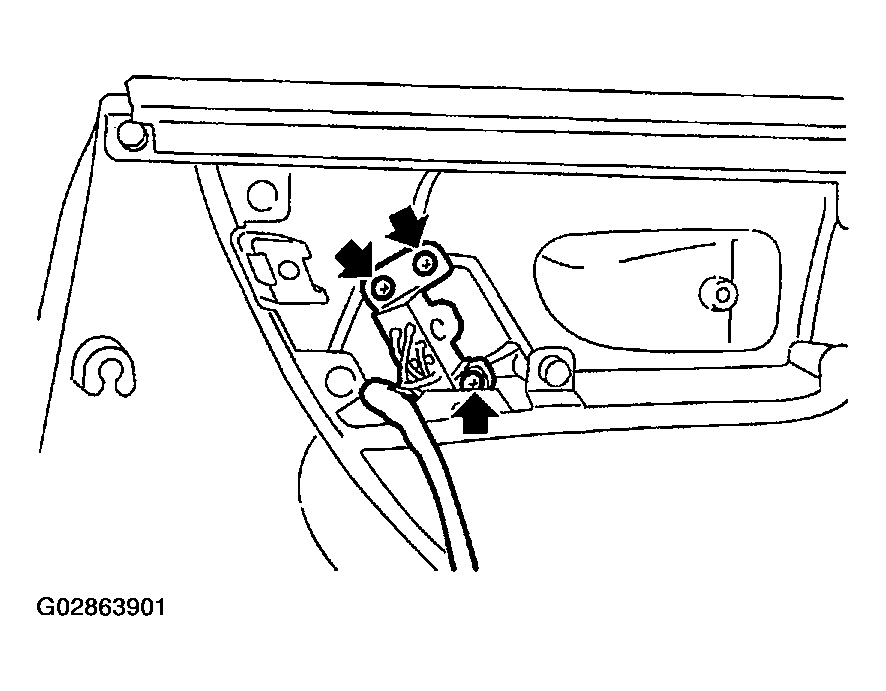

    Fig 1: Removing Screws & Sub-Switch
    G02863901Courtesy of SUBARU OF AMERICA, INC.
