Rear Gate Glass: Removal
- Remove real wiper. Refer to REMOVAL , Rear Wiper Motor.
- Remove rear gate trim. Refer to REMOVAL , Rear Gate Trim.
- Remove electrical connector from rear defogger terminal.
- Remove glass in the same procedure as for windshield glass. Refer to REMOVAL , Windshield Glass.

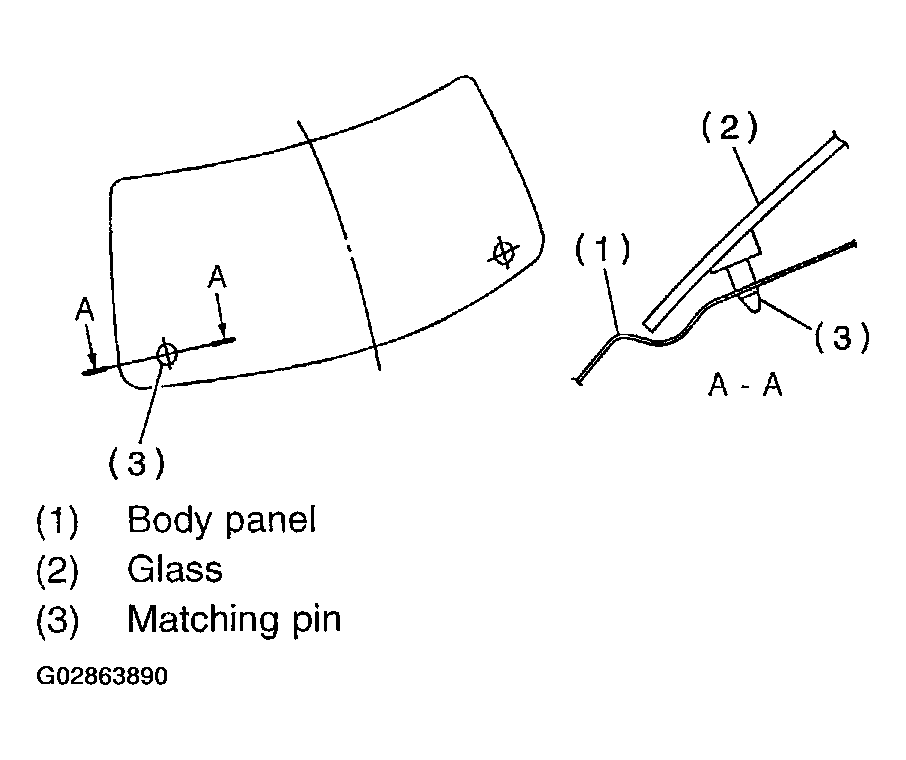

NOTE:
A matching pin is cemented to corners of the glass on the compartment side. Use a piano wire when cutting each pin.
