Rear Quarter Glass: Removal

  1. Remove rear quarter molding on corner.
  2. Remove glass in the same procedure as for windshield glass. Refer to REMOVAL  , Windshield Glass.

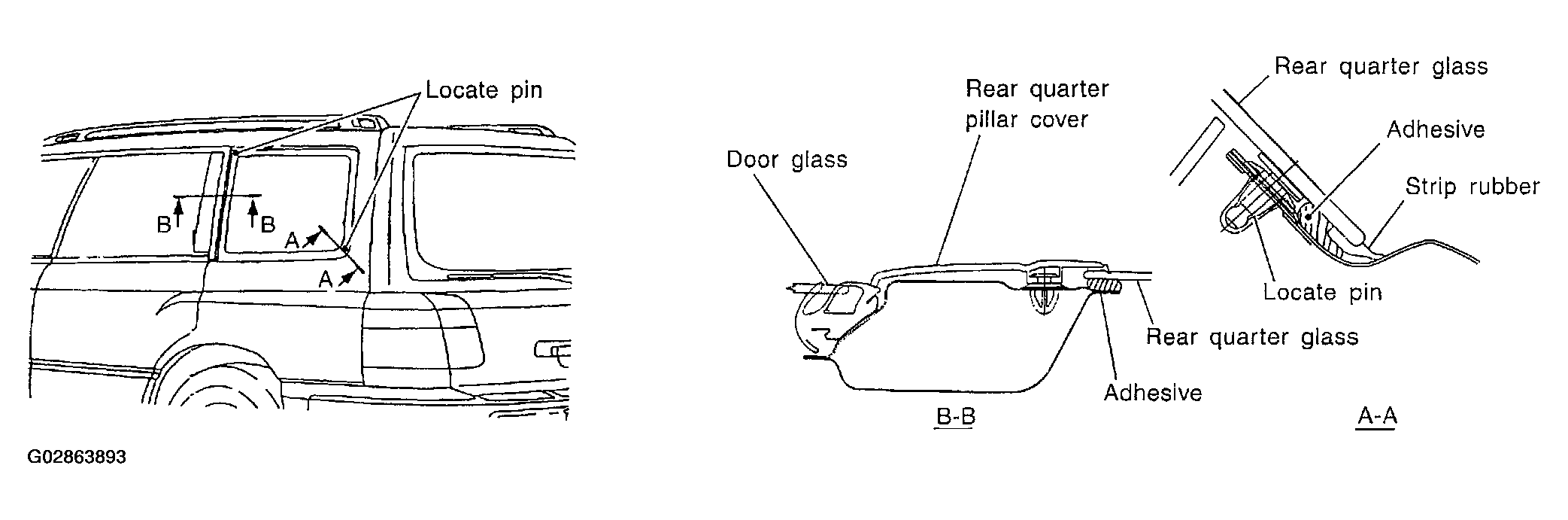

    Fig 1: Removing Rear Quarter Glass
    G02863893Courtesy of SUBARU OF AMERICA, INC.
